Quick Details
-
Brand Name:
-
Aceretech
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
150
-
Weight (T):
-
7
-
Name:
-
plastic shredder machine
-
Application:
-
shredder
-
Function:
-
Broken Waste
-
Used for:
-
PE PP Pellicle Plastics
-
Blades material:
-
High Speed Steel
-
Crushing material:
-
General Plastic Materials
-
Suit for:
-
Automobile Recycling
-
MOQ:
-
1 set
-
Sample/Service Manual:
-
Available
-
Control:
-
P.L.C Control
Quick Details
-
Max.Production Capacity (kg/h):
-
1500
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
200 - 2000 kg/h
-
Brand Name:
-
Aceretech
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
150
-
Weight (T):
-
7
-
Name:
-
plastic shredder machine
-
Application:
-
shredder
-
Function:
-
Broken Waste
-
Used for:
-
PE PP Pellicle Plastics
-
Blades material:
-
High Speed Steel
-
Crushing material:
-
General Plastic Materials
-
Suit for:
-
Automobile Recycling
-
MOQ:
-
1 set
-
Sample/Service Manual:
-
Available
-
Control:
-
P.L.C Control
Product Description

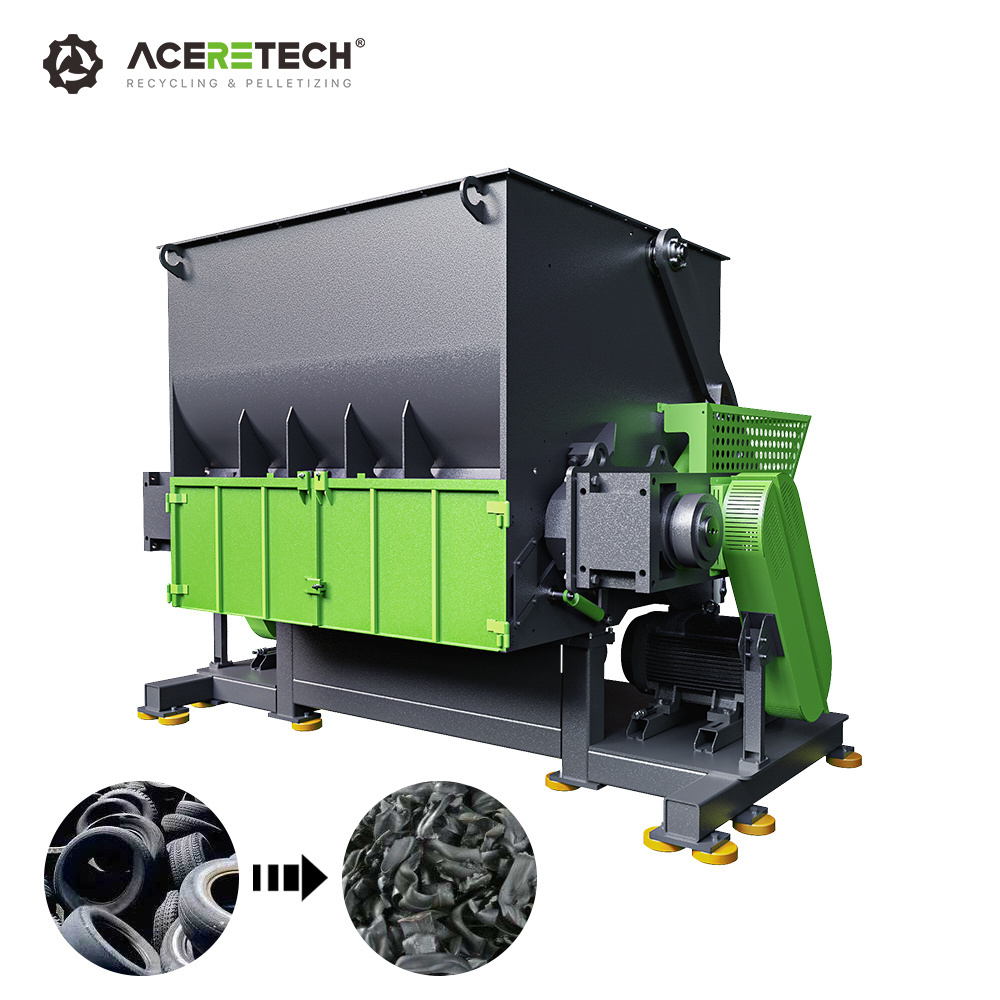

XS series shredder is a heavy-duty single-shaft shredder equipped with a powerful two-speed swing-type hydraulic pusher. This design can avoid the occurrence of material blocking and reduce the wear of the internal guide rail. This model is welded by a special welding process. The mechanical structure is stronger. The crushing capacity of the single machine is 30-40% higher than that of other brands. It is suitable for recycling various waste materials. The shredder is equipped with diameter 750mm ACERETECH effective V type rotor with width ranging from 1500mm to 3000m. The low speed of 45rpm ensures smooth running with high torque. The hydraulic workstation is tightly integrated with the shredder chamber, which saves space and protects the hydraulic station, and is easy to replace and maintain. XS series heavy-duty single-shaft shredder adopts intelligent PLC control system. The rotor can be surface hardened and wear-resistant according to customer requirements. According to the characteristics of different shredded materials, we provide customers with optional water cooling systems.
Aceretech Recyclable Plastics Include
●
Waste cardboard
●
Refrigerator shells
●
Iarge household appliance shells
●
Daily life waste products
●
Rubber products
●
Automobile tires
Suitable Products
Product Paramenters
|
SPECIFICATIONS
|
|
|
|
|
||||
|
Item
|
Unit
|
XS1500
|
XS2000
|
XS3000
|
||||
|
Feed opening
|
mm
|
2540*1620
|
2540*2020
|
2540*2820
|
||||
|
Rotor diameter
|
mm
|
750
|
750
|
750
|
||||
|
Rotor speed
|
rpm
|
52
|
52
|
52
|
||||
|
Motor power
|
kw
|
2*75
|
2*90
|
2*132
|
||||
|
Number of rotor knives
|
pcs
|
76
|
96
|
136
|
||||
|
Number of stator knives
|
pcs
|
4
|
5
|
7
|
||||
|
Hydraulic feeding ram
|
kw
|
11
|
11
|
11
|
||||
|
Standard screen
|
mm
|
40-100
|
40-100
|
40-100
|
||||
|
Chamber size
|
mm
|
1500*1490
|
1500*1900
|
1500*2700
|
||||
|
Machine Length a
|
mm
|
3600
|
3600
|
3600
|
||||
|
Machine Width b
|
mm
|
3350
|
3350
|
3350
|
||||
|
Machine Height c
|
mm
|
3500
|
4000
|
5000
|
||||
Product Detail
SHREDDER MAIN SHAFT
>>> The integral forging of the main shaft will not break and deform when the equipment tears high-strength materials or works for a long time.
>>> After the manufacture of professional processing equipment such as lathe and CNC machining center, ensure that the overall error of the spindle will not exceed 0.05mm, ensure the long-term stable operation of the equipment.
CORE COOLING OF SHREDDER
>>> A shaft core cooling device is designed for special materials, which can improve the tearing efficiency, reduce the risk of overheating of the main shaft and effectively prevent materials from sticking to the main shaft. So as to ensure stable and long-term operation.
BEARING SEAT OF SHREDDER
>>> The special split design ensures that the shredding chamber will not enter the bearing when working powder, so as to prolong the service life of the bearing. The bearing adopts authentic NSK roller type self-aligning bearing to ensure that the center can be adjusted independently when the main shaft tears materials, so as to minimize the noise of equipment operation.
GEARBOX OF SHREDDER
MOTOR OF SHREDDER
>>> The main motor adopts Weg / Siemens brand motor, with stable output and reliable quality.
HYDRAULIC STATION
>>> The motor, oil pump and valve group of the hydraulic station are all made of Taiwan brand, with reliable quality. The system is equipped with or150 water cooler, which can effectively control the oil temperature below 55 ° C.
SHOCK ABSORBER OF SHREDDER
>>> Polyurethane shockproof design can effectively remove the vibration generated during the operation of the equipment and protect the reducer and bearing from the vibration.
CHAMBER OF SHREDDER
>>> The silo adopts circular arc design, which not only increases the internal space, but also increases the pushing efficiency. The circular pushing design can also effectively prevent material leakage in the working process, and use the bearing swing to avoid the wear of guide rail caused by material blockage.
CONTROL SYSTEM OF SHREDDER
>>> The electrical system adopts microcomputer PLC programming control and whole process automation. After commissioning, the operator only needs to press start and stop. Save labor costs and ensure the safety of the operating environment.
Company Video
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
● ACERETECH is original manufacturer.
● If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
● The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strict control by inspecting personnel.
● Each assembly is in charge by a master who has working experience for more than 15 years
● After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
● After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
