Quick Details
-
Remote Control:
-
Yes
-
Control Type:
-
Digital
-
App-Controlled:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NAKKA
-
Model Number:
-
FM75-DC19ARL
-
Power (W):
-
210
-
Voltage (V):
-
120
-
EC/BLDC Motor:
-
6 speeds, 9 hours timer
-
RPM:
-
minimum RPM=650r/min, maximum RPM=1300r/min
-
Air volume:
-
256m3/min
-
Grill:
-
Spiral Grill
-
Blade:
-
Aluminum 3 Blade
-
Base:
-
Mobile design with wheels
-
Water tank capacity:
-
11 Gallon / 42 Liter
-
Control panel:
-
LCD screen keyboard display
-
Battery capacity:
-
2pcs AAA(1.5V)
-
Certification:
-
EMC, ce, RoHs
Quick Details
-
Type:
-
Water Mist Fan
-
Rotary Vane Quantity:
-
3
-
Wind Speed:
-
More Than Five
-
Remote Control:
-
Yes
-
Control Type:
-
Digital
-
App-Controlled:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NAKKA
-
Model Number:
-
FM75-DC19ARL
-
Power (W):
-
210
-
Voltage (V):
-
120
-
EC/BLDC Motor:
-
6 speeds, 9 hours timer
-
RPM:
-
minimum RPM=650r/min, maximum RPM=1300r/min
-
Air volume:
-
256m3/min
-
Grill:
-
Spiral Grill
-
Blade:
-
Aluminum 3 Blade
-
Base:
-
Mobile design with wheels
-
Water tank capacity:
-
11 Gallon / 42 Liter
-
Control panel:
-
LCD screen keyboard display
-
Battery capacity:
-
2pcs AAA(1.5V)
-
Certification:
-
EMC, ce, RoHs
Product Description
Specification
|
Product Name
|

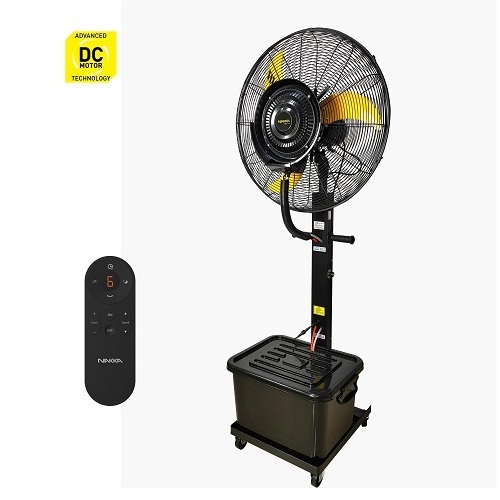

NAKKA 30 inch EC Portable Mobile Misty Cool Stand Fan
|
|
Model NO.
|
FM75-DC19ARL
|
|
Certification
|
CE(EMC,LVD,RoHS), ERP, RED
|
|
|
|
|
Electrical Parameter
|
|
|
EC Motor
|
EC motor without Holzer brushless, High performance, Fully sealed, Brushless, 6 speeds, 9 hours timer
|
|
Input
|
120V,60Hz / 220-240V, 50-60Hz
|
|
Maximum Power
|
210W
|
|
RPM
|
minimum RPM=650r/min, maximum RPM=1300r/min
|
|
Maximum Air Volume
|
256m³/min,
|
|
Remote Control
|
433Hz RF, with learning function
|
|
Mist system
|
Centrifugal mode, adjustable by remote control
|
|
|
|
|
Performance
|
|
|
Grill
|
30 inch 12 lines strong grill with mist system plate
|
|
Blade
|
30 inch 3 blade Aluminum design ( lowest noise , max air volume) noise 68db
|
|
Blade color
|
Silver
|
|
Rod
|
Fixed height Rod,
|
|
Base
|
metal black frame with 4 wheels
|
|
Water tank capacity
|
11 Gallon / 42 Liter unbreakable plastic tank
|
|
Power cord
|
3*0.5mm 100% copper power line( The leakage length of the power line is 1.8m)
|
|
Plug
|
Optional
|
|
Continuance misting
|
9 hours
|
|
Drop size
|
less than 10um
|
|
Available area:
|
30-50m3, reduce Temperatures 4℃-8℃
|
|
Avaiable distance
|
8m
|
|
|
|
|
Packing info and MOQ
|
|
|
Packing size
|
SKD packing, 3 parts 3 boxes ( one 40HQ can load about 420pcs)
|
|
Part 1 of 3
|
Grill, blade, metal frame size: 83*13*82.5cm
|
|
Part 2 of 3
|
Motor, water tank, other spare parts size: 56.5*40*35cm
|
|
Part 3 of 3
|
Rod size:113*11.5*20cm
|
|
Net Weight
|
22kg
|
|
Gross Weight
|
23.5kg
|
|
HS Code
|
8414599091
|
|
MOQ
|
MOQ is 50 pcs (Nakka brand name), MOQ is 300pcs ( OEM customer's brand name)
|
|
|
|
