Brand: SIHUA
Original: Shanghai China
Function: Single side can carry 1-3T. Protect motor and prolong machine life
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
Other
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sihua
-
Voltage:
-
380v 50Hz
-
Dimension(L*W*H):
-
13m*1.1m*1.2m
-
Weight:
-
11000 kg
-
roll forming machine:
-
metal stud roll forming machine
-
forming machine:
-
stud roll forming machine
-
drywall roll forming machine:
-
c profles u profiles roll fomring machine
-
drywall keel making machine:
-
stud track profiles making machine
-
Control system:
-
PLC(import brand)
-
material of rollers:
-
Cr12 Mov
-
Cutting blade material:
-
SKD11
-
Feeding thickness:
-
0.3mm-0.8mm
-
product speed:
-
30m to 100m per min
-
Product name:
-
shanghai high speed high precision stud and track roll forming machine
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
40-120m/min
-
Rolling thinckness:
-
Other
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sihua
-
Voltage:
-
380v 50Hz
-
Dimension(L*W*H):
-
13m*1.1m*1.2m
-
Weight:
-
11000 kg
-
roll forming machine:
-
metal stud roll forming machine
-
forming machine:
-
stud roll forming machine
-
drywall roll forming machine:
-
c profles u profiles roll fomring machine
-
drywall keel making machine:
-
stud track profiles making machine
-
Control system:
-
PLC(import brand)
-
material of rollers:
-
Cr12 Mov
-
Cutting blade material:
-
SKD11
-
Feeding thickness:
-
0.3mm-0.8mm
-
product speed:
-
30m to 100m per min
-
Product name:
-
shanghai high speed high precision stud and track roll forming machine
|
motor power
|
Forming machine motor
|
Kw
|
15
|
|
|
Hydraulic motor
|
Kw
|
11
|
|
|
Decoiler motor
|
Kw
|
0
|
|
product speed
|
SHM-QC 30
|
m/min or pc
|
15-30
|
|
|
SHM-QC 60
|
m/min or pc
|
31-60
|
|
|
SHM-QC 120
|
m/min or pc
|
61-120
|
|
hydraulic system
|
Accumaulator
|
L
|
32
|
|
|
Main pressure
|
Kg
|
70-120
|
|
|
Rate flow
|
L
|
30
|
Production process：De-coiler (uncoiler, straightener)→roll forming machine→cutting machine(hydraulic system give power) all parts was control by electrical control system
1,Decoiler

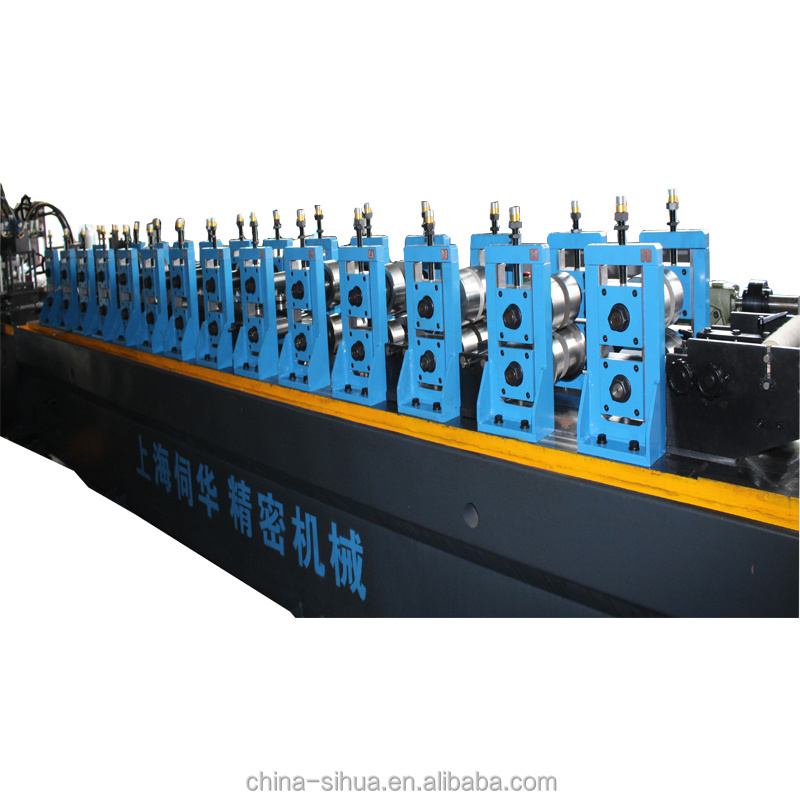

2.1,Roll forming machine
2.2 Roll forming machine is working
3.Cutting machine
4.Hydraulic station
Decolier
roller
Brand: SIHUA
Original: Shanghai China
Roller material is CR12MoV1 though vacuum heat treatment and the hardness is 58-62 HRC
cutting table
Brand:SIHUA
Original:Shanghai China
Cutting blade material：SKD11，vacuum heat treatment，hardness：58—62HRC.
electrical control sysytem
Brand:SIHUA
Original:Shanghai China
Function:PLC monitor product line working if there are some faults in any parts, human interface will show location of points of faults. It is easy for workers to maintenance . Our machine was made in international standard. All the parts of the machines could be bought locally.
