Quick Details
-
Model Number:
-
R-4-210-C5L-BR
-
Max. Current:
-
22A
-
Mechanical Life:
-
10000 Cycles
-
contact resistance:
-
50m Ω max
-
insulation resistance:
-
DC 500V 100mΩ min
-
dielectric strength:
-
AC 1500V 1 minute
-
Operating temperature:
-
0 ~85
-
Electrical Life:
-
10000 Cycles
-
Function:
-
ON-OFF
-
Certification:
-
ce
Quick Details
-
Max. Voltage:
-
250VA
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANSHFA
-
Model Number:
-
R-4-210-C5L-BR
-
Max. Current:
-
22A
-
Mechanical Life:
-
10000 Cycles
-
contact resistance:
-
50m Ω max
-
insulation resistance:
-
DC 500V 100mΩ min
-
dielectric strength:
-
AC 1500V 1 minute
-
Operating temperature:
-
0 ~85
-
Electrical Life:
-
10000 Cycles
-
Function:
-
ON-OFF
-
Certification:
-
ce
Specifications

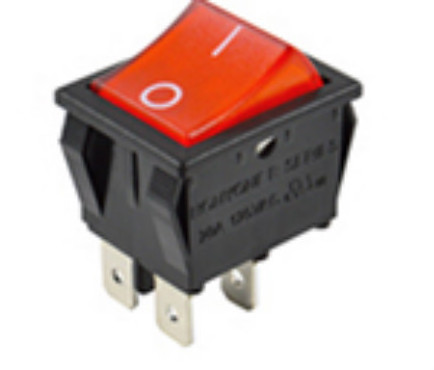

Rocker switch R-4 series
1.Professional Switch Manufacturer
2.Certificate:CE
Specification:
| Rating | 20A 125VAC |
| 22A 250VAC | |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥DC500V 100MmΩ min |
| Dielectric strength | AC 1500V 1min |
| Operating temperature |
0℃~85℃ |
| Mechanical life |
50,000cycles |
| Load life |
1 0,000cycles |
