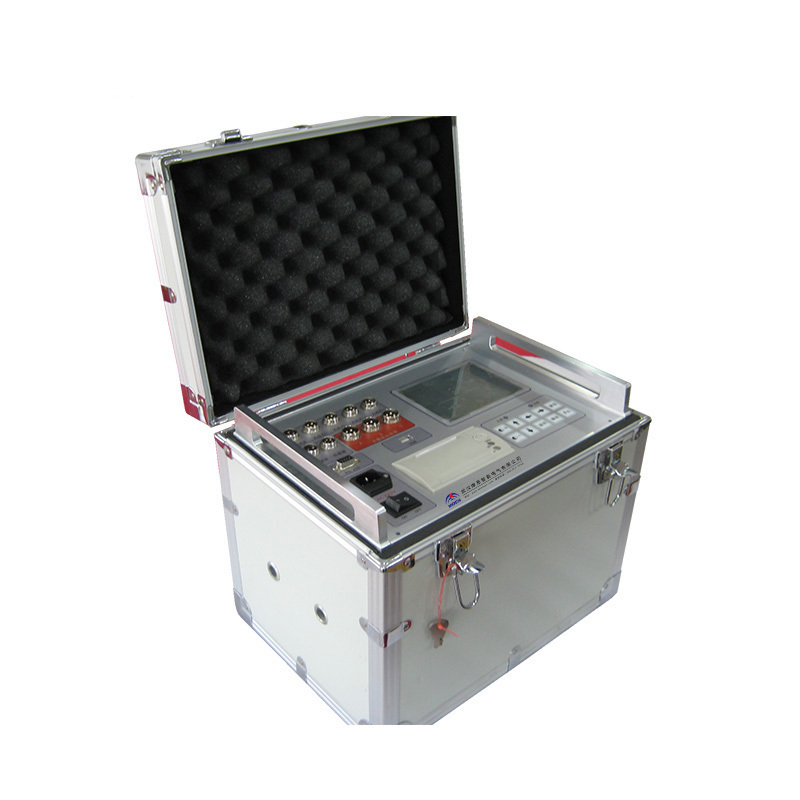

MOEN-WG5128 High Voltage Switch Circuit Breaker Analyzer High Voltage Switch Comprehensive Tester

MOEN-WG5128 High Voltage Switch Circuit Breaker Analyzer High Voltage Switch Comprehensive Tester

FOB Reference Price: Get Latest Price

≥1 Sets

US $7700

≥10 Sets

US $5400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MOEN

Model Number:: MOEN-WG5128

Product Name:: High Voltage Switch Tester

Brand:: MOEN

Model:: MOEN-WG5128

Insulation resistance:: >2MΩ

Current:: Range 20.00A

Time:: Range 4ms -16s

Input power supply:: 220V±10% 50Hz±10%

Temperature:: -10~40℃

Humidity:: ≤80%RH

Weight:: 12kg

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Hubei

Brand Name:: MOEN

Model Number:: MOEN-WG5128

Product Name:: High Voltage Switch Tester

Brand:: MOEN

Model:: MOEN-WG5128

Insulation resistance:: >2MΩ

Current:: Range 20.00A

Time:: Range 4ms -16s

Input power supply:: 220V±10% 50Hz±10%

Temperature:: -10~40℃

Humidity:: ≤80%RH

Weight:: 12kg

MOEN-WG5128 High Voltage Switch Circuit Breaker Analyzer High Voltage Switch Comprehensive Tester

Performance Features:

1) Time: the inherent opening and closing time of 12 fractures, the same phase and the same phase. 2) Closing resistance: pre-switching time, pre-switching waveform and resistance value of the closing resistance of the fracture. 3) Graphite contact: Siemens graphite contact switch can measure the opening and closing time and dynamic waveform of its three fractures. 4) Reclosing: closing-minute time (gold short time), opening-closing time (no current time), opening-closing-minute time of each fracture: one minute time, one closing time, two minutes time. 5) Bounce: the closing bounce time of each fracture, the number of bounces, the bounce process, and the bounce waveform. 6) Speed: just opening and closing speed, maximum speed, time-stroke characteristic curve; reclosing one-minute speed, first-closing speed, and two-minute speed. 7) Stroke: total stroke, opening distance, overtravel, overshoot stroke, rebound amplitude. 8) Current: opening and closing current values and current waveforms of the opening and closing coils. 9) Operating voltage: The machine provides DC30~250V/20A (instantaneous operation) digital adjustable circuit breaker operating power supply, automatically completes the low-voltage operating test of the circuit breaker, and measures the operating voltage value of the circuit breaker.

Product Specifications: 1.1. Usage environment Input power 220V±10% 50Hz±10% Atmospheric pressure 86～106kPa Temperature -20～45℃ Humidity ≤80%RH 1.2. Safety performance Insulation resistance ＞2MΩ Dielectric strength: The power supply can withstand a voltage of 1.5kV at the power frequency of the chassis for 1 minute without flashover or arcing. 1.3. Basic parameters ◆Time: Range 5.0ms-16s Resolution 0.1ms

Error: ①Within 100ms 0.1ms±1 word ②100ms or more 0.1%±1 word 　　　　 ③Same period ±0.1ms ◆Speed: Range 20.00m/s Resolution 0.01m/s

Error : ①Within 0-2m/s ±0.1m/s±1 word ②100ms or more ±0.2m/s±1 word
