Quick Details
-
Model Number:
-
KCD1-203
-
Max. Current:
-
10A
-
Mechanical Life:
-
More than 10000cycles
-
Switch pin material:
-
Brass
-
Voltage:
-
125V/250V AC
-
Current:
-
6A/10A
-
Temperature:
-
85
-
Electric lifetime:
-
More than 10000cycles
-
Switch function:
-
double pole on off on power on off on performance
-
Install dimension:
-
19.2*13mm
-
Thickness:
-
1-2mm
-
contact material:
-
silver
-
Item:
-

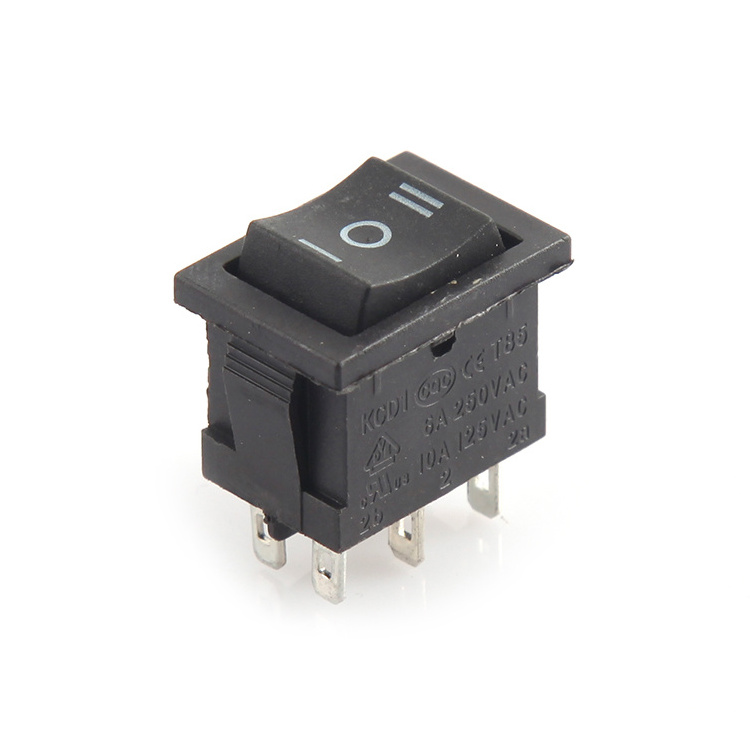

KCD1-203 6A 250V/10A 125V AC double pole 3 positions rocker switch
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wanshfa
-
Model Number:
-
KCD1-203
-
Max. Current:
-
10A
-
Mechanical Life:
-
More than 10000cycles
-
Switch pin material:
-
Brass
-
Voltage:
-
125V/250V AC
-
Current:
-
6A/10A
-
Temperature:
-
85
-
Electric lifetime:
-
More than 10000cycles
-
Switch function:
-
double pole on off on power on off on performance
-
Install dimension:
-
19.2*13mm
-
Thickness:
-
1-2mm
-
contact material:
-
silver
-
Item:
-
KCD1-203 6A 250V/10A 125V AC double pole 3 positions rocker switch
-
Certification:
-
CE
Products Description
|
Place of Origin
|
Zhejiang, China (Mainland)
|
|
Model Number
|
KCD1-203
|
|
rating
|
6A 250V/10A 125V
|
|
contact resistance
|
50Ω
|
|
insulation resistance
|
100Ω
|
|
withstand voltage
|
1500VAC/1min
|
|
Mechanical Life
|
More than 10000cycles
|
Application:
DPST Rocker switches/boat switches are widely used in the drinking water machine, running machine, computer speakers, battery car,
motorcycle, ion television, coffee pot, socket, massage machine, mainly household appliances.
motorcycle, ion television, coffee pot, socket, massage machine, mainly household appliances.
