Quick Details
-
Usage:
-
drying welding electrode
-
Power supply:
-
380V,50HZ
-
Size of production:
-
2.0mm,2.5mm,3.2mm,4.0mm,5.0mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Shuanglu,SUNLU
-
Model Number:
-
Automatic
-
Usage:
-
drying welding electrode
-
Power supply:
-
380V,50HZ
-
Size of production:
-
2.0mm,2.5mm,3.2mm,4.0mm,5.0mm
Shijiazhuang Shuanglu Machinery Co., Ltd. ("Shuanglu" and "SUNLU" for short), as a member of China Welding Association (CWA) and one of the appointed manufacturers of China National Electric Equipment Corporation (CNEEC), manufactures complete welding electrode production line.
Automatic !

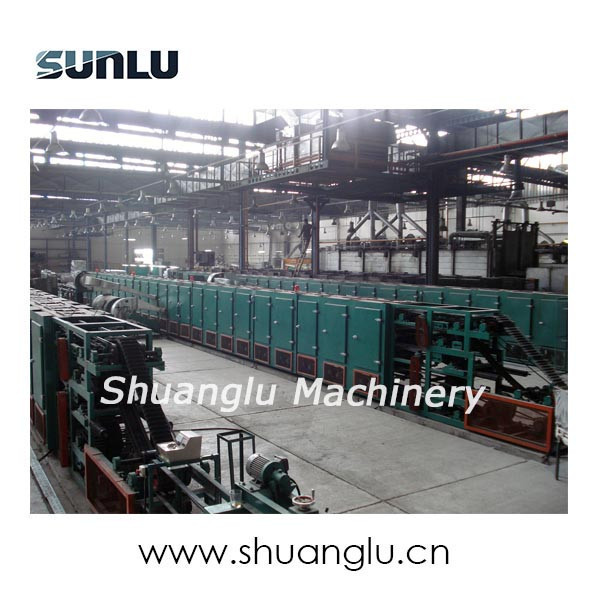

SHG Automatic Chain-type drying furnace is the automatic drying oven for baking welding electrodes before brand printing and packing. Its maximum temperature is 230 ℃.
SXL 450 Box type drying furnace mainly designed for drying special welding electrode.Its maximum temperature is 450 ℃.
|
No. |
Model |
SHG-3 |
SHG-5 |
SHG-7 |
|
1 |
Hold true range |
Φ2.5-Φ3.2mm |
Φ2.5-Φ5.0mm |
Φ2.5-Φ5.0mm |
|
2 |
length range |
250-400mm |
250-450mm |
250-500mm |
|
3 |
Transmission mode |
Chain transmission |
||
|
4 |
Operating speed |
1.2-2.8M/min |
2.5-5M/min |
2.5-5M/min |
|
5 |
Effective drying length |
24M |
24M |
15M |
|
6 |
Motor power |
4kw |
8kw |
8.8kw |
|
7 |
Cooling Power |
1.08kw |
1.08kw |
0.675kw |
|
8 |
Far-infrared(electricity) drying power |
134.4kw |
172.8kw |
168kw |
|
9 |
Max. Drying Temperature |
230 ℃ |
||
|
10 |
Heating time |
≤30min |
||
|
11 |
Alarm manner |
Lever alarm light showing automatic stopping |
||
|
12 |
Cooling manner |
Forced-air-cooling |
||
|
13 |
Maximum output per hour |
1T/H |
1.5T/H |
1.5T/H |
|
14 |
Overall size(mm) |
30500×1100×1550 |
31140×1100×1800 |
22600×1500×2650 |
We suppy Turn-key project:
Welding electrode production line + Wear Parts + Raw Materials+ Installation + Training + Technical service after sell = whole package of making welding electrodes.
Our Market:
So far SUNLU machines have exported to USA, Brazil, Qatar, Saudi Arabia, Egypt, Russia, Ukraine, Uzbekistan, Tajikistan,Uganda,South Africa,India, Pakistan etc.
Welding electrode making procedure:
Wire drawing process → Wire cutting process → Flux mixing process →
Flux coating process → Drying process → Printing process → Packing process
