Quick Details
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
CGT Brand
-
Model Number:
-
LL7050/LS-20W-80W
-
Place of Origin:
-
GUA
-
Power brand:
-
CGT
-
Shade material:
-
PC
-
Product Weight（kg）:
-
2.5
-
Product Dimension:
-
0.6M 1.2M 1.5M
-
Packing Dimension:
-
40W-1158*70*52,60W-1444*70*52
-
PCs/ Ctn:
-
1
-
Input Voltage(V):
-
100-277V/200-240Vac
-
Lamp Luminous Flux(lm):
-
2600Lm-10400LM
-
Color Temperature(CCT):
-
Single color or 3-CCT DIPswitch
-
Beam Angle(°):
-
120 in standard
-
POWER:
-
40w 60w 80w or 3-Power Switchable
-
DIM:
-
NO dim/0-10V Dim/DALI Optional
-
UGR:
-
UGR<22 or UGR<16
-
CCT:
-
Single Color or 3-CCT Switchable
-
LUMINOUS EFFICACY:
-
130lm/w,140lm/w or 150lm/w
-
DIMENSION:
-
0.6M 1.2M 1.5M
-
BEAM ANGLE:
-
120° in standard
-
BEAM ANGLE Optional:
-
LR40 P18° 120*120° 30*90° 60*110° 90*110°
-
Certification:
-
PREL2.0, Energy Efficiency Class="D"
Quick Details
-
Design Style:
-
Modern
-
Application:
-
Office,Meeting room,Hotel,Library, Office,school, building
-
Body Material:
-
aluminum
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
CGT Brand
-
Model Number:
-
LL7050/LS-20W-80W
-
Place of Origin:
-
GUA
-
Power brand:
-
CGT
-
Shade material:
-
PC
-
Product Weight（kg）:
-
2.5
-
Product Dimension:
-
0.6M 1.2M 1.5M
-
Packing Dimension:
-
40W-1158*70*52,60W-1444*70*52
-
PCs/ Ctn:
-
1
-
Input Voltage(V):
-
100-277V/200-240Vac
-
Lamp Luminous Flux(lm):
-
2600Lm-10400LM
-
Color Temperature(CCT):
-
Single color or 3-CCT DIPswitch
-
Beam Angle(°):
-
120 in standard
-
POWER:
-
40w 60w 80w or 3-Power Switchable
-
DIM:
-
NO dim/0-10V Dim/DALI Optional
-
UGR:
-
UGR<22 or UGR<16
-
CCT:
-
Single Color or 3-CCT Switchable
-
LUMINOUS EFFICACY:
-
130lm/w,140lm/w or 150lm/w
-
DIMENSION:
-
0.6M 1.2M 1.5M
-
BEAM ANGLE:
-
120° in standard
-
BEAM ANGLE Optional:
-
LR40 P18° 120*120° 30*90° 60*110° 90*110°
-
Certification:
-
PREL2.0, Energy Efficiency Class="D"
Products Description
Specification
Architecture Linear Light
* PREL2.0, Energy Effificiency Class=“D"
* High Luminous Effificiency 130-150lm/w
* CRI>80Ra, SDCM: <5,UGR<22 or UGR<16
* 3-Power & 3-CCT Switchable
* Flicker Free driver, PF>0.9, 0-10V and DALI dimming optional

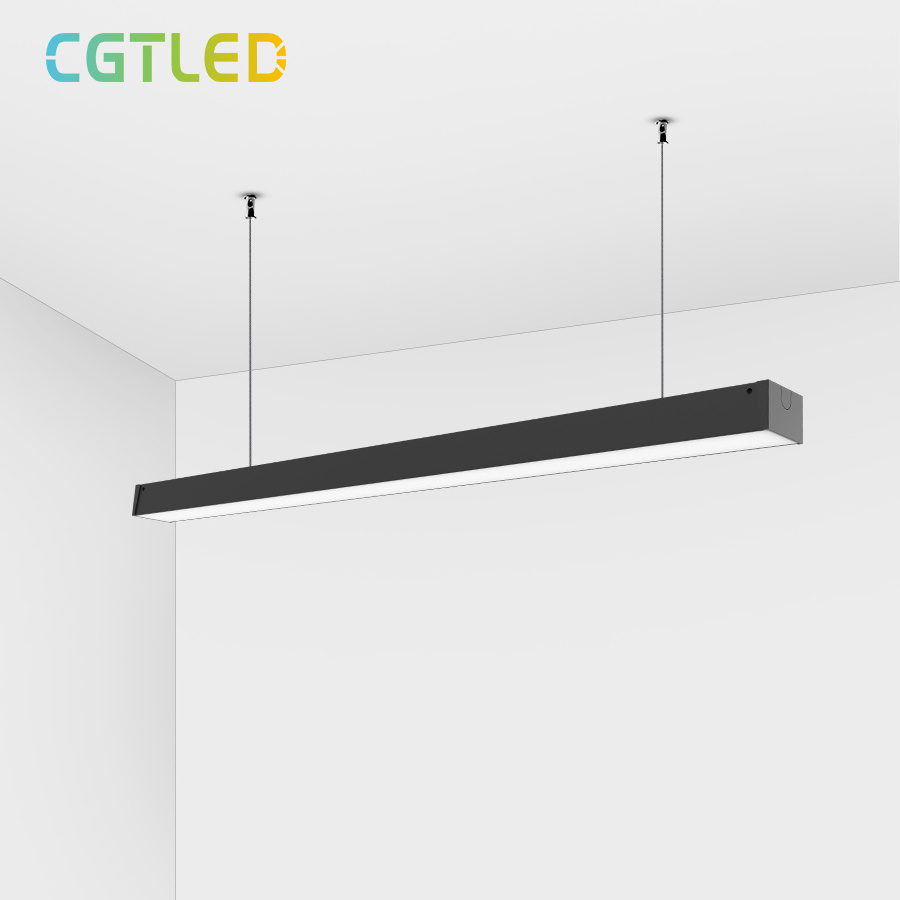

* Ceiling and Suspending installation
* 5 Years Warranty
* High Luminous Effificiency 130-150lm/w
* CRI>80Ra, SDCM: <5,UGR<22 or UGR<16
* 3-Power & 3-CCT Switchable
* Flicker Free driver, PF>0.9, 0-10V and DALI dimming optional
* Ceiling and Suspending installation
* 5 Years Warranty
Application & Installation
One model inventory: wires for series connection preset inside, support single installation as well as in-series installation.
