The touch screen to start and stop the machine, adjust settings and monitor progress in real time.
- Product Details
- {{item.text}}
Quick Details
-
Mold Height(mm):
-
100 - 150 mm
-
Ejector Stroke(mm):
-
70 mm
-
Ejector Force(kN):
-
10 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
170 g/s
-
Injection Weight (g):
-
30 g
-
Screw diameter (mm):
-
16 mm
-
Screw L/D Ratio:
-
20
-
Weight (KG):
-
140 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
70 mm
-
Model Number:
-
BW-MINI
-
Brand Name:
-
BW
-
Power (kW):
-
5.5 kW
-
Automatic:
-
Yes
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
130mm
-
Distance between Tie Bars(Height)(mm):
-
130mm
-
Plasticizing Capacity(g/s):
-
30
-
Mold Height(mm):
-
100 - 150 mm
-
Ejector Stroke(mm):
-
70 mm
-
Ejector Force(kN):
-
10 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
170 g/s
-
Injection Weight (g):
-
30 g
-
Screw diameter (mm):
-
16 mm
-
Screw L/D Ratio:
-
20
-
Weight (KG):
-
140 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
70 mm
-
Model Number:
-
BW-MINI
-
Brand Name:
-
BW
-
Power (kW):
-
5.5 kW
-
Automatic:
-
Yes

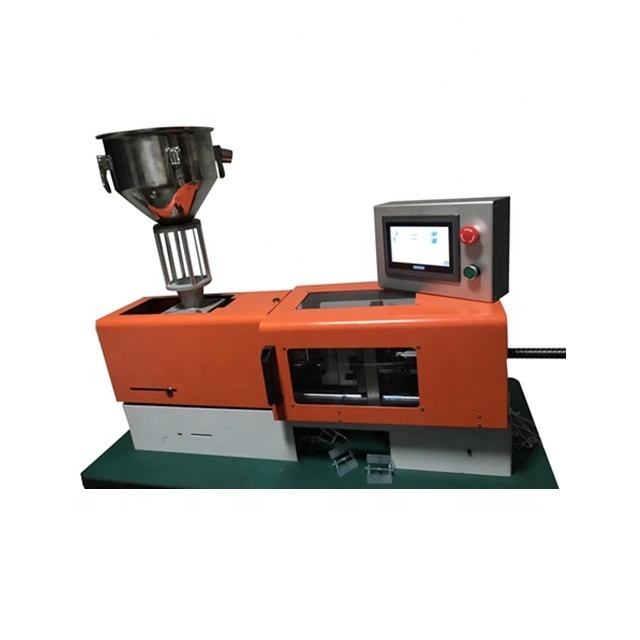

MINI DESKTOP INJECTION MOLDING MACHINE
Product Description
Blowell Mini, small products solution specialist!
Mini desktop injection machine is the most cost-effective way to produce the small plastic components in the market. It is
easy to apply for prototyping, testing, new product development and small productions production. Easy for maintenance, fast changing mold and lower investment for production.
Machine details
Full automatic operation page
Heating unit
the machine can mold a variety of plastic resins, including ABS, acetal, HDPE, PP, PS and TPO
Mold clamping system
Uniq mold clamping system and can customized as your products.
Application
