Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUAMING
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
depend
-
Weight:
-
1500 KG
-
Automatic Grade:
-
Automatic
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
156:1
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUAMING
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
depend
-
Weight:
-
1500 KG
-
Automatic Grade:
-
Automatic

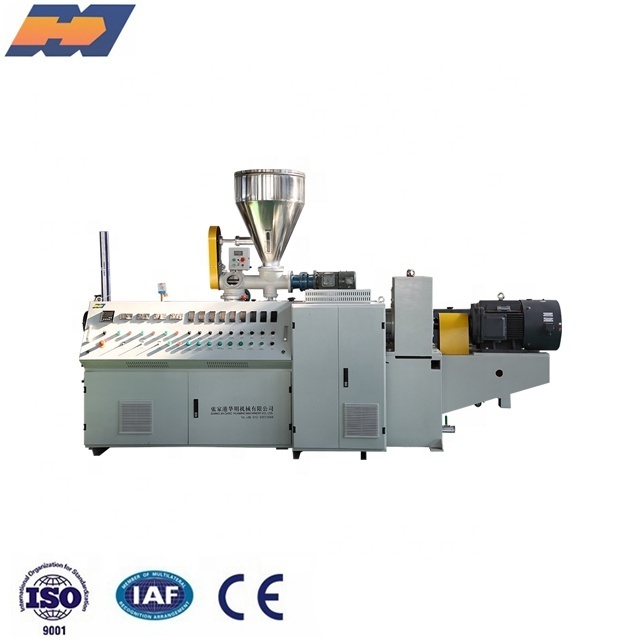

Double screw extruder
The extruder is widely used in following areas:
Suitable for PVC, UPVC powder
Process pipe, plate, sheet, profile as well as granules.
| Model |
SJSZ45
|
SJSZ50
|
SJSZ55
|
SJSZ65
|
SJSZ80
|
SJSZ92
|
| Screw Dia.(mm) |
45/90
|
50/105
|
55/110
|
65/132
|
80/156
|
92/188
|
| Screw Speed(r.p) |
3-34
|
3-37
|
3-37
|
3.9-39
|
3.9-39
|
4-40
|
| Motor Power(KW) |
18.5
|
22
|
27
|
37
|
55
|
100
|
| Ratio(L/D) |
14.5
|
14.5
|
14.5
|
14.5
|
15.25
|
17.66
|
| Output(Kg/h) |
100
|
120
|
150
|
260
|
400
|
800
|
Machine composition & characteristics
The extruder is fixed with fault protection, overload alarm, screw core constant temperature oil circulation system, barrel oil cooling system, vacuum exhaust pipe and ration feeding device.
There are many kinds of electric control system for selection (for example: PLC auto control system).
I
t is driven by DC motor.
T
hrough inverter or DC speed regulator it can achieve stable stepless speed
adjustment
, high precision and energy saving.
Intelligent
dual display digital temperature controller is used to improve control precision and temperature
fluctuation
.
