Quick Details
-
Brand Name:
-
SWAN
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1000*2000*1500
-
Power (kW):
-
30
-
Weight:
-
2-10T
-
Product name:
-
single wall corrugated pipe production line
-
Power(W):
-
30Kw
-
Automatic Grade:
-
FULL-AUTO
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Output (kg/h):
-
200 - 220 kg/h
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw Speed (rpm):
-
1 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1000*2000*1500
-
Power (kW):
-
30
-
Weight:
-
2-10T
-
Product name:
-
single wall corrugated pipe production line
-
Power(W):
-
30Kw
-
Automatic Grade:
-
FULL-AUTO
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Output (kg/h):
-
200 - 220 kg/h
-
Certification:
-
CE
Product Description
Shanghai SWAN SJ 45 single screw corrugated pipe
Introduction
Single wall corrugated pipe equipment production line diameter 9-32mm
Used for: Bellows is widely used in instrumentation. Its main purpose is to be used as a measuring component of pressure measuring instruments to convert pressure into displacement or force. The wall of the bellows is thinner and has a high sensitivity. The measuring range is from tens of Pa to tens of MPa. Its open end is fixed, the sealed end is free, and the auxiliary coil spring or reed is used to increase the elasticity.
|
SJ45 corrugated sing wall pipe extrusion machine
|
|
|
|
Screw diameter
|
45 mm
|
|
|
L/D
|
28:1
|
|
|
Motor power
|
11 kw
|
|
|
Rotating speed of screw
|
80 r/min
|
|
|
Heating power
|
9 kw
|
|
|
Extrusion capacity
|
30 kg/h
|
|
|
Center height
|
1000 mm
|
|
|
Weight
|
800kg
|
|
|
Dimension
|
2050 x 1200 x 1500mm
|
|
|
Extruder speed adjusting way
|
Frequency conversion
|
|
|
Barrel temperature adjusting way
|
Heating: cast aluminum heater
Cooling: 3 sections by air |
|
|
Material of screw and barrel
|
38CrMoAlA Azotizing on surface 0.4~0.7mm
Rigidity: above 700 HV |
|
1.Singe-screw extruder 45/28
Screw diameter 45 mm
L/D 28:1
Motor power 11 kw
Rotating speed of screw 80 r/min
Heating power 9 kw
Extrusion capacity 30 kg/h
Center height 1000 mm
Weight 800kg
Dimension 2050 x 1200 x 1500mm
2.Mould
Specification ∮16mm
Material 40Cr nitrided

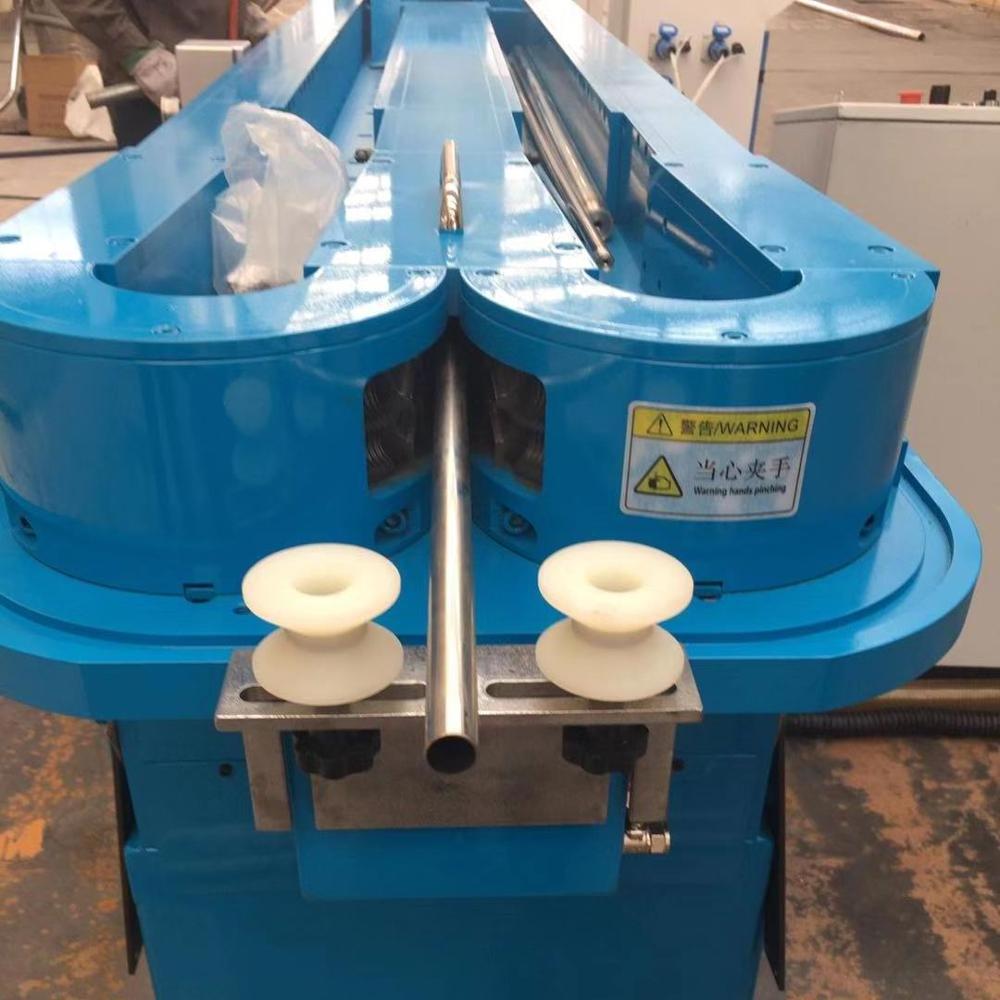

3.Forming machine
Motor power 2.2kw
Mould block With 40Cr nitrided
Cooing method of mould block
Wind Production line speed 0.3~10m/min
Center height 1000mm
Length 2m
4.Double-disk winder
Coiling range ∮9-∮35mm
Motor power 16 N.M
Speed of coiled 3-12m/min
Air pressure ≥0.6 MPa
5.Hopper drier
Total volume 80L
Heating power 3.9 kw
Loading capacity 50kg
Blower power 0.12 kw
Material Stainless steel
Temperature adjusting Electron temperature adjuster
Weight 60 kg
Dimension 850 x 460 x 1100 mm
6.Auto-feeder
Max. wind pressure 9800 pa
Max. air volume 2 m³/min
Power of motor 0.75 kw
Rotating speed of motor 2800 r/min
Transportation capacity 100 kg/h
Volume of aspirating hopper 10 L
Inter diameter of transfer soft tube 40 mm
Inter diameter of aspirating soft tube 40 mm
Method of loading Vacuum aspirating
Related sample display
Free measurement of the sample size, providing customers with accurate mold size and product drawings
