Quick Details
-
Storage Height:
-
4.8~22m MES Marine Evacuation System
-
Persons carried by platform:
-
50~100P
-
Evacuation capacity:
-
250~700Persons
-
Type:
-
Inclined /Vertical Evacuation System
-
Weight:
-
1500~2000kg
-
Length of Evacuation:
-
2.6~8.4m Vertical Evacuation System
-
Warranty:
-
12 Months
-
Application:
-
Cruise ship/Ferry/Vessels
-
Storage:
-
Container / Soft packing
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Marine Vessel Escape Chute
-
Certification:
-
CCS Marine Vessel Escape Chute
-
Storage Height:
-
4.8~22m MES Marine Evacuation System
-
Persons carried by platform:
-
50~100P
-
Evacuation capacity:
-
250~700Persons
-
Type:
-
Inclined /Vertical Evacuation System
-
Weight:
-
1500~2000kg
-
Length of Evacuation:
-
2.6~8.4m Vertical Evacuation System
-
Warranty:
-
12 Months
-
Application:
-
Cruise ship/Ferry/Vessels
-
Storage:
-
Container / Soft packing

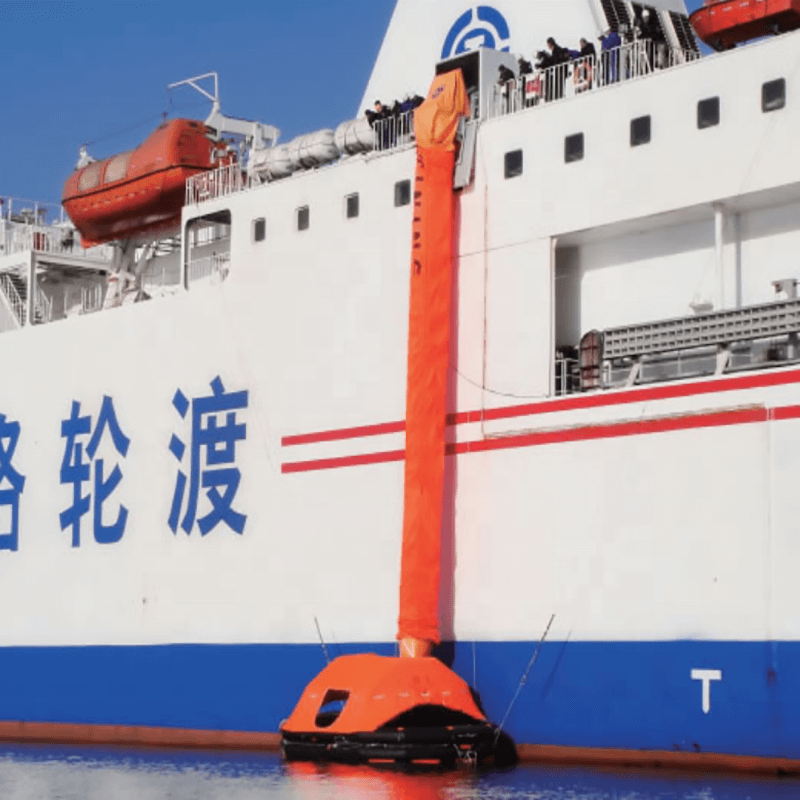

SOLAS MES Marine Evacuation System Marine Vessel Escape Chute
-Type: Vertical / Inclined Evacuation System
-Persons Carried by platform:50~100P
-Evacuation capacity: 250~700p in 30 mins
MES Marine Vessel Evacuation System
Marine evacuation system are in accordance with SOLAS (74/96), MSC,(LSA) and applicable in ships on category I voyage area(Ocean voyage area); They can be divided into vertical escape and inclined slide. Max Storage height is 25m and the evacuation capacity from 250 person to 700 person in 30 Minutes.
|
Type
|
Model
|
Max.Storage height
(m)
|
Evacuation Capacity
(Person)
|
Craft Capacity
(Person)
|
|
Vertical Type
|
MES-S
|
25
|
200~300
|
50
|
|
|
MES-D
|
25
|
560~660
|
75/100
|
|
Inclined Type
|
MES-I
|
12
|
350
|
50
|
|
|
MES-II
|
12
|
700
|
100
|
Package: Plywood case
Delivery time: 5~20 days
