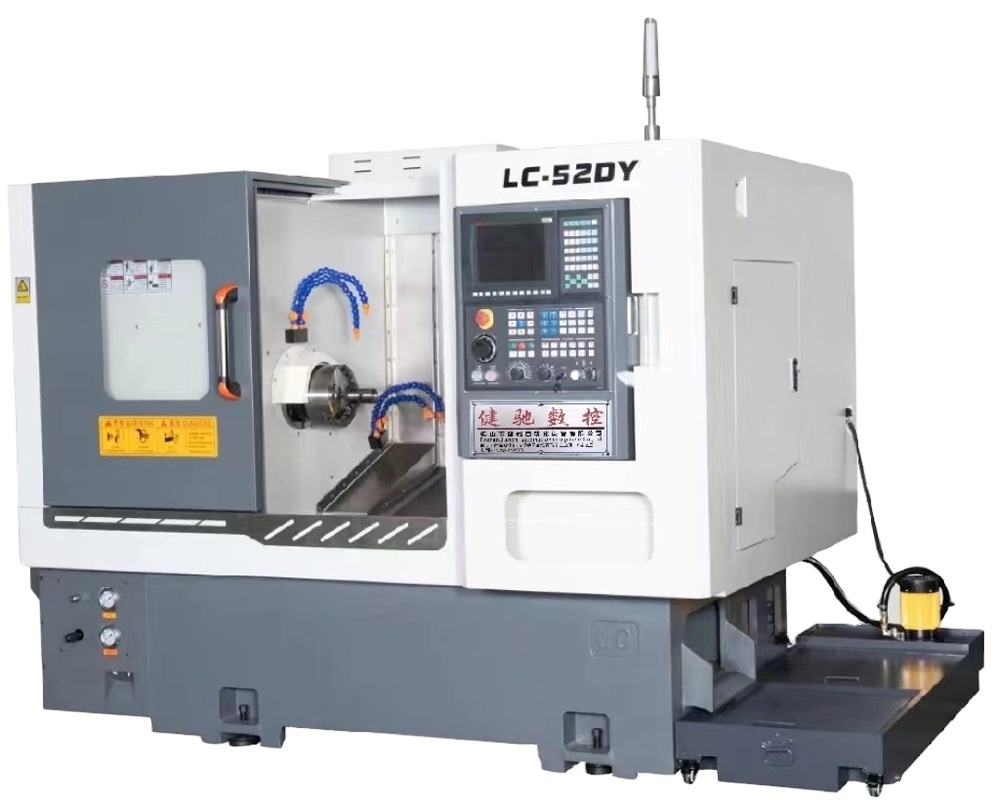

This machine adopts a rectangular connected casting horizontal bed, effectively reducing the load of the saddle screw on the power turret and maximizing the cutting rigidity of the power turret.
·Precision sleeve spindle, servo motor drive, BMT45 hard rail with Y-power turret, 12 workstations, servo motor control for each drive shaft, compact and reasonable structure and external dimensions. Capable of processing various materials, shafts, discs and other parts through various processes such as outer circle, inner circle, end face, thread turning, milling and drilling, and forming complex products in one go.
·The saddle is a box structure, ensuring the high rigidity and bending and shock absorption performance of the foundation components; The basic components are molded with resin sand and undergo aging treatment to ensure the stability of the long-term accuracy of the machine tool and provide assurance for the stability of the machine tool performance
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
11KW
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
550 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2630x1900x1950 mm
-
Brand Name:
-
JIANCHI
-
Model Number:
-
LC-52DY
-
Voltage:
-
380V,50HZ
-
Weight (KG):
-
4000
-
Automatic:
-
Lathe
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
300
-
Year:
-
least date
-
Max. Spindle Speed (r.p.m):
-
4000 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
11KW
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
550 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2630x1900x1950 mm
-
Brand Name:
-
JIANCHI
-
Model Number:
-
LC-52DY
-
Voltage:
-
380V,50HZ
-
Weight (KG):
-
4000
-
Automatic:
-
Lathe
Product Description
Title goes here.
Machine features
Specification
|
Maximum rotation diameter
|
500mm
|
|
Maximum machining diameter
|
300mm
|
|
Maximum processing length
|
500mm
|
|
Maximum diameter of bar material passing through
|
52mm
|
|
Maximum speed of spindle motor
|
4000/min
|
|
X-axis stroke
|
200mm
|
|
Z-axis travel
|
500mm
|
|
X-axis/Z axis fastest feed speed
|
20m/mim
|
|
Positioning accuracy
|
±0.005
|
|
Rpeatability
|
0.003
|
|
Hydraulic station capacity
|
50L
|
|
Spindle motor power
|
11KW
|
|
X-axis/Z-axis motor power
|
2.4KW/ 2.4KW
|
|
External dimensions (length * width * height)
|
2630X1900X1950mm
|
|
Overall weight
|
4000KGS
|
Production Process
R & D design
Parts warehouse
Hardware installation
Installation of the whole machine
Debugging
Finished goods warehouse
