Quick Details
-
Mounting Type:
-
Horizontal
-
Description:
-
Water Flow Switch, Water Flow Switch
-
Manufacturing Date Code:
-
20231111
-
Model Number:
-
SEN-DB25
-
Type:
-
Brass water flow switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
Reed Sensor
-
Output:
-
ON/OFF switch
-
Material:
-
Brass Copper
-
Connection:
-
DN25, 1"
-
Medium:
-
Water, Oil
-
Application:
-
Water Pump Control
-
Switching Power:
-
70W, Normally Open (NO)
-
Water Temperature:
-
Less than 80 ℃
-
Insulated Resistor:
-
>100MΩ
-
Working Pressure:
-
0.005-1.0Mpa
-
Working Voltage:
-
DC220/AC250
-
Customized:
-
Wire harness specification
Quick Details
-
Usage:
-
ON/OFF
-
Series:
-
brass flow switch
-
Features:
-
DB25
-
Mounting Type:
-
Horizontal
-
Description:
-
Water Flow Switch, Water Flow Switch
-
Manufacturing Date Code:
-
20231111
-
Model Number:
-
SEN-DB25
-
Type:
-
Brass water flow switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
Reed Sensor
-
Output:
-
ON/OFF switch
-
Material:
-
Brass Copper
-
Connection:
-
DN25, 1"
-
Medium:
-
Water, Oil
-
Application:
-
Water Pump Control
-
Switching Power:
-
70W, Normally Open (NO)
-
Water Temperature:
-
Less than 80 ℃
-
Insulated Resistor:
-
>100MΩ
-
Working Pressure:
-
0.005-1.0Mpa
-
Working Voltage:
-
DC220/AC250
-
Customized:
-
Wire harness specification

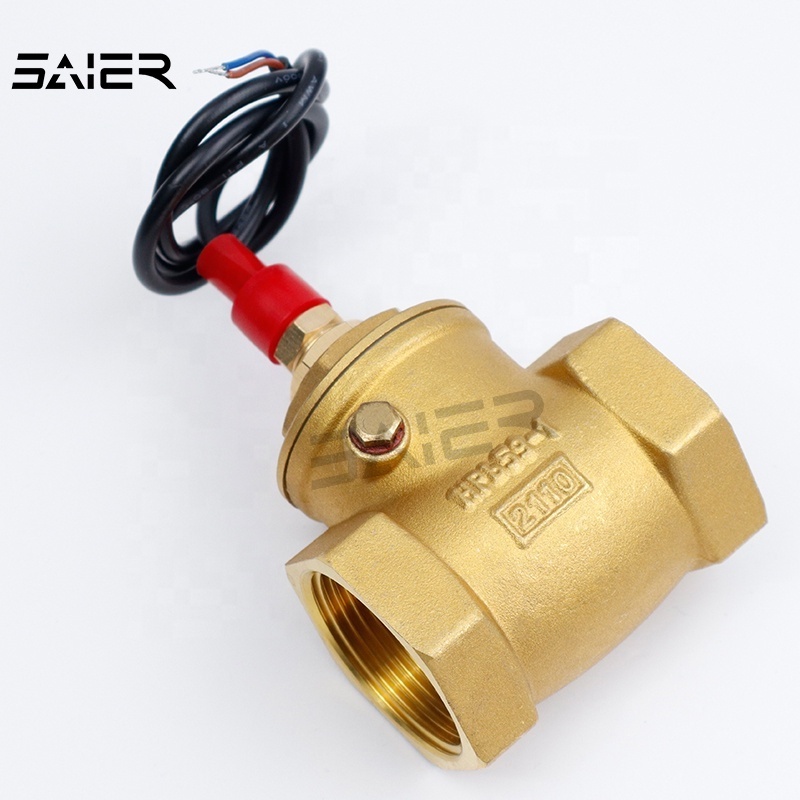

1 Inch Liquid Flow Switch Apply to Water Pump DN25 Brass Copper Reed Sensor Baffle Type Flow Switch
Product Description
|
Product Name
|
Liquid water flow switch on/off control sensor
|
|
|
|
|
||||
|
Material
|
Brass copper material
|
|
|
|
|
||||
|
Connection Size
|
G 1", DN25
|
|
|
|
|
||||
|
Flow Range
|
3.5-50 L/Min
|
|
|
|
|
||||
|
Contact Capacity
|
70W / 220V
|
|
|
|
|
||||
|
Introduction
|
flow sensor consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor activates the magnetic core to trigger switch action, with signal output..
|
|
|
|
|
||||
|
Fetures
|
Imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.
|
|
|
|
|
||||
|
Applications
|
It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.
|
|
|
|
|
||||
Impeller Flowmeter
Application: Coffee machine & capsule coffee machine.
Material: Food grade
