Quick Details
-
Voltage:
-
380V
-
Power:
-
1.5kw
-
Weight:
-
300kg
-
Dimension(L*W*H):
-
1560*450*1340mm
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
aloe vera processing machinery
-
Material:
-
304 Stainless Steel
-
Application:
-
peel the aloe vera,cactus
-
Capacity:
-
1500kg/h
-
Quality:
-
top level
-
Operation:
-
so easy
-
Advantage:
-
Environment-friendly
-
Skype:
-
kingmachinery315
-
How to purchase:
-
contact with me freely
-
Certification:
-
ISO 9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yingwang
-
Type:
-
aloe vera processing machinery
-
Voltage:
-
380V
-
Power:
-
1.5kw
-
Weight:
-
300kg
-
Dimension(L*W*H):
-
1560*450*1340mm
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
aloe vera processing machinery
-
Material:
-
304 Stainless Steel
-
Application:
-
peel the aloe vera,cactus
-
Capacity:
-
1500kg/h
-
Quality:
-
top level
-
Operation:
-
so easy
-
Advantage:
-
Environment-friendly
-
Skype:
-
kingmachinery315
-
How to purchase:
-
contact with me freely
-
Certification:
-
ISO 9001
Factory Supply aloe vera processing machinery
Contact Informations:
Contact Person: Ms. Angela
Mobile or WhatsApp or Wechat: 0086-13669258127
Skype: kingmachinery315
I ntroduction of aloe vera peeling machine :
This machine is mainly used for stripping with aloe vera, cactus, etc. The machine frame and engine cover is made of high quality stainless steel, light health for food grade conveyor belt conveyor belt, infinitely variable speed motor adopts frequency converter control, freely control the production speed. The machine features peeling effect is good, high yield, convenient control, etc.
This machine consists of frame, conveyor belt, peeling knife, pressure device, transmission device, motor, worm gear reducer, frequency converter and other parts. Motor through a belt pulley, speed reducer, chain wheel, chain drive belt and feeding conveyor belt movement.
Working principle of aloe vera peeling machine:
Cactus, aloe and other materials after artificial cut off the heads into the peeling machine conveyor belt, the conveyor belt to move forward, to press pressure feeding conveyor belt material, through after peeling knife, up and down material was stripped, the skin of the pulp from the knife up and down through the middle, so as to achieve the aim of peeling.
Technical parameters of aloe vera peeling machine :
|
Model |
YW -200 |
|
Capacity |
1500kg/h |
|
M otor |
0.75Kw,220V,1390r/min |
|
Reduction box |
WD - 3 m = 3, speed ratio 10:1 |
|
Dimensions |
1700*550*1300mm |
|
Weight |
270kg |

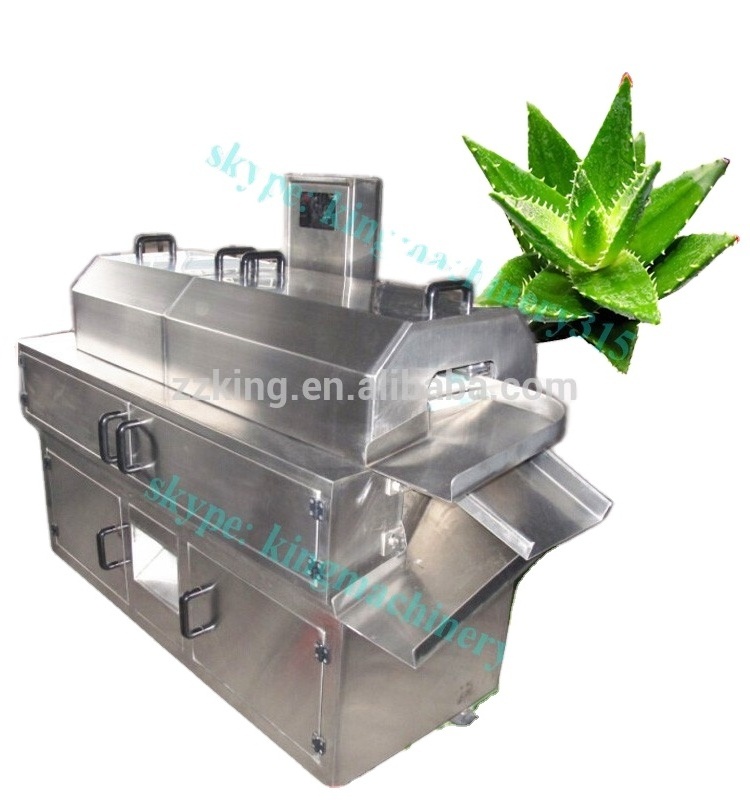

Product show of aloe vera peeling machine :
