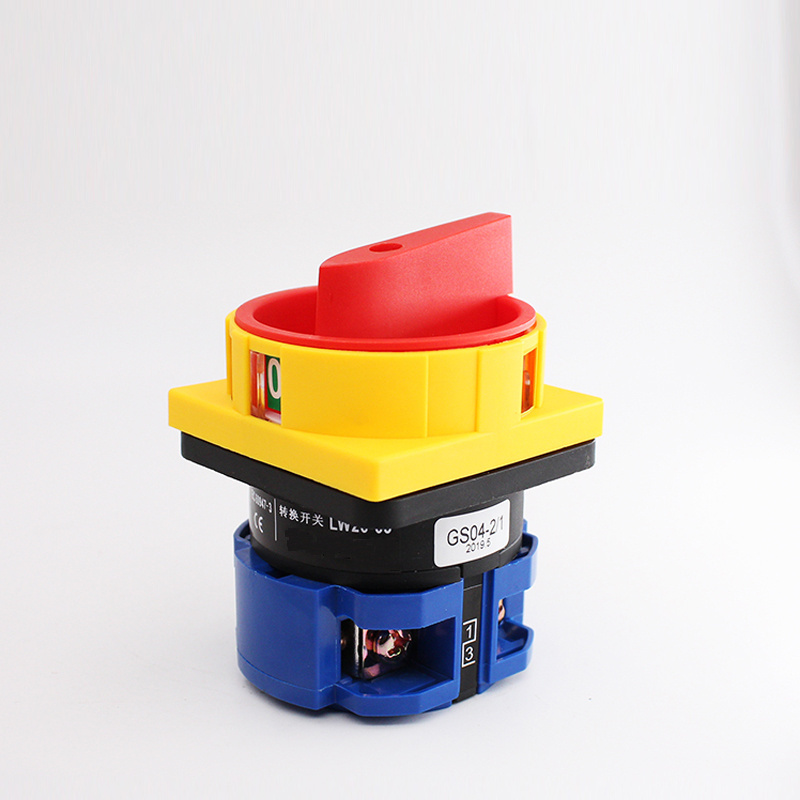

Quick Details
-
Brand Name:
-
LNP
-
Model Number:
-
LW26GS-63A
-
Max. Current:
-
160A
-
Mechanical Life:
-
100000
-
Product name:
-
cam switch
-
Color:
-
white
-
Certificate:
-
CE
-
Function:
-
industrial
-
amp:
-
20A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
480V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LNP
-
Model Number:
-
LW26GS-63A
-
Max. Current:
-
160A
-
Mechanical Life:
-
100000
-
Product name:
-
cam switch
-
Color:
-
white
-
Certificate:
-
CE
-
Function:
-
industrial
-
amp:
-
20A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
-
Certification:
-
CE
|
Model |
LW26-20 |
LW26-25 |
LW26-32 |
|||||||
|
Rated insulation voltage Ui |
690V |
690V |
690V |
|||||||
|
Rated thermal current Ith |
20A |
25A |
32A |
|||||||
|
Rated working voltage Ue(V) |
120 |
240 |
440 |
120 |
240 |
440 |
120 |
240 |
440 |
|
|
Rated working
|
AC-21A
|
- |
20 |
20 |
- |
25 |
25 |
- |
32 |
32 |
|
AC-23A |
15 |
15 |
22 |
22 |
30 |
30 |
||||
|
AC-2 |
15 |
15 |
22 |
22 |
30 |
30 |
||||
|
AC-3 |
11 |
11 |
15 |
15 |
22 |
22 |
||||
|
AC-4 |
3.5 |
3.5 |
6.5 |
6.5 |
11 |
11 |
||||
|
AC-15 |
5 |
4 |
8 |
5 |
14 |
6 |
||||
|
DC-13 |
5 |
1 |
- |
9 |
1.5 |
- |
25 |
11 |
- |
|
|
Power P (KW) |
AC-23A |
- |
3.7/2.5 |
7.5/3.7 |
- |
5.5/3 |
11/5.5 |
- |
7.5/4 |
15/10 |
|
AC-2 |
4 |
7.5 |
5.5 |
11 |
7.5 |
18.5 |
||||
|
AC-3 |
3/2.2 |
5.5/3 |
4/3 |
7.5/.7 |
5.5/4 |
11/6 |
||||
|
AC-4 |
0.55/0.75 |
1.5/1.5 |
1.5/1.5 |
3/2.2 |
2.7/1.5 |
5.5/2.4 |
||||
| Model | LW26-63 | LW26-125 | LW26-160 | ||||
| Rated insulation voltage Ui | 690V | 690V | 690V | ||||
| Rated thermal current Ith | 63A | 125A | 160A | ||||
| Rated working voltage Ue(V) | 240 | 440 | 240 | 440 | 240 | 440 | |
|
Rated working
current Ie |
AC-21A
AC-22A |
63 | 63 | 100 | 100 | 150 | 150 |
| AC-23A | 57 | 57 | 90 | 90 | 135 | 135 | |
| AC-2 | 57 | 57 | 90 | 90 | 135 | 135 | |
| AC-3 | 36 | 36 | 75 | 75 | 95 | 95 | |
| AC-4 | 15 | 15 | 30 | 30 | 55 | 55 | |
| AC-15 | - | - | - | - | - | - | |
| DC-13 | - | - | - | - | - | - | |
| Power P (KW) | AC-23A | 15/10 | 30/18.5 | 30/15 | 45/22 | 37/22 | 75/37 |
| AC-2 | 18.5 | 30 | 30 | 45 | 37 | 55 | |
| AC-3 | 11/6 | 18.5/11 | 18.5/11 | 30/13 | 22/11 | 37/18.5 | |
| AC-4 | 5.5/2.4 | 7.5/4 | 7.5/4 | 12/5.5 | 10/4 | 15/7.5 | |
