Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
steeler
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3210*1410*1650mm
-
Weight (KG):
-
2260 KG
-
Power (kW):
-
25.25
-
Max.working width:
-
150mm
-
Min.working width:
-
25mm
-
Max.working thickness:
-
100mm
-
Min.working thinkness:
-
8mm
-
Spindle amounts:
-
5pcs
-
Spindle speed:
-
6000rpn
-
Feed speed:
-
5-22m/min
-
Feed motor:
-
3kw/4hp
-
General power:
-
25. 25kw/34.5HP
Quick Details
-
Max.Planing Depth(mm):
-
120 mm
-
Max.Planing Width(mm):
-
150
-
Number of Blade:
-
5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
steeler
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3210*1410*1650mm
-
Weight (KG):
-
2260 KG
-
Power (kW):
-
25.25
-
Max.working width:
-
150mm
-
Min.working width:
-
25mm
-
Max.working thickness:
-
100mm
-
Min.working thinkness:
-
8mm
-
Spindle amounts:
-
5pcs
-
Spindle speed:
-
6000rpn
-
Feed speed:
-
5-22m/min
-
Feed motor:
-
3kw/4hp
-
General power:
-
25. 25kw/34.5HP
|

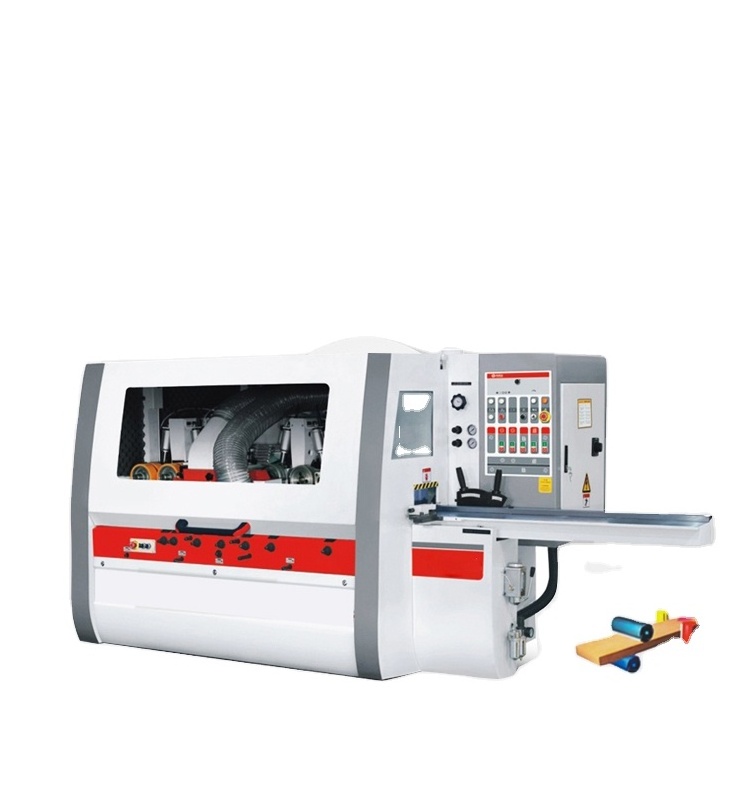

Model
|
MBQ515A
|
|
Max.working width
|
150mm
|
|
Min.working width
|
25mm
|
|
Max.working thickness
|
100mm
|
|
Min.working thinkness
|
8mm
|
|
Spindle amounts
|
6 pcs
|
|
Spindle speed
|
6000rpn
|
|
Feed speed
|
4-18m/min
|
|
Spindle diameter
|
φ40mm
|
|
Cutter diameter First bottom cutter
|
φ125
|
|
Right vertical cutter
|
φ125-φ160
|
|
Left vertical cutter
|
φ125-φ160
|
|
First top cutter
|
φ125-φ160
|
|
Second bottom spindle
|
φ125-φ160
|
|
Motor power First bottom cutter
|
4kw/5.5hp
|
|
Right vertical cutter
|
4kw/5.5hp
|
|
Left vertical cutter
|
4kw/5.5hp
|
|
Fist top cutter
|
5.5kw/7.5hp
|
|
Second bottom cutter
|
4kw/5.5hp
|
|
Feed motor
|
3kw/4hp
|
|
Beam elevation
|
0.75kw/1hp
|
|
Total power
|
25.25kw/34.5hp
|
|
Feeding wheel Dia.
|
Φ120mm
|
|
Suction hood Dia.
|
φ125mm
|
|
Overall dimensions
|
3210*1410*1650mm
|
|
Packing dimensions
|
3410x1610x1835mm
|
|
Weight
|
2260kg
|
|
No.
|
Model
|
MBQ512A
|
MBQ516A
|
MBQ518A
|
MBQ521A
|
MBQ523A
|
|
1
|
Max.Working width
|
120mm
|
160mm
|
180mm
|
210mm
|
230mm
|
|
2
|
Working thickness
|
8-100mm
|
8-100mm
|
8-120mm
|
8-120mm
|
8-150mm
|
|
Motor power
|
First bottom spindle
|
3kw
|
4kw
|
4kw
|
5.5kw
|
7.5kw
|
|
|
Right side spindle
|
3kw
|
4kw
|
4kw
|
5.5kw
|
7.5kw
|
|
|
Left side spindle
|
3kw
|
4kw
|
4kw
|
5.5kw
|
7.5kw
|
|
|
First top spindle
|
4kw
|
5.5kw
|
7.5kw
|
7.5kw
|
11kw
|
|
|
Second top spindle
|
//
|
//
|
//
|
//
|
|
|
|
Second bottom spindle
|
3kw
|
4kw
|
4kw
|
5.5kw
|
7.5kw
|
|
|
Feed
|
3kw
|
4kw
|
4kw
|
4kw
|
5.5kw
|
|
|
Feed beam rise&fall
|
0.55kw
|
1.1kw
|
1.1kw
|
1.1kw
|
1.1kw
|
|
|
General power
|
18.75kw
|
26.6kw
|
28.6kw
|
34.6kw
|
47.6kw
|
|
3
|
Dimension
|
|
4100*1630*1750mm
|
4100*1630*1750mm
|
4100*1630*1750mm
|
4100*1700*1760mm
|
