Can show the detailed working
data make the data visual.lt will be
easier to adjust and control the
machine for customer.With memory
function,can see the product
quantity.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric And Pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1150*770*840mm
-
Weight:
-
110 KG
-
After-sales Service Provided:
-
No overseas service provided
Quick Details
-
Machinery Capacity:
-
3000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Liquid
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric And Pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1150*770*840mm
-
Weight:
-
110 KG
-
After-sales Service Provided:
-
No overseas service provided
Product Description

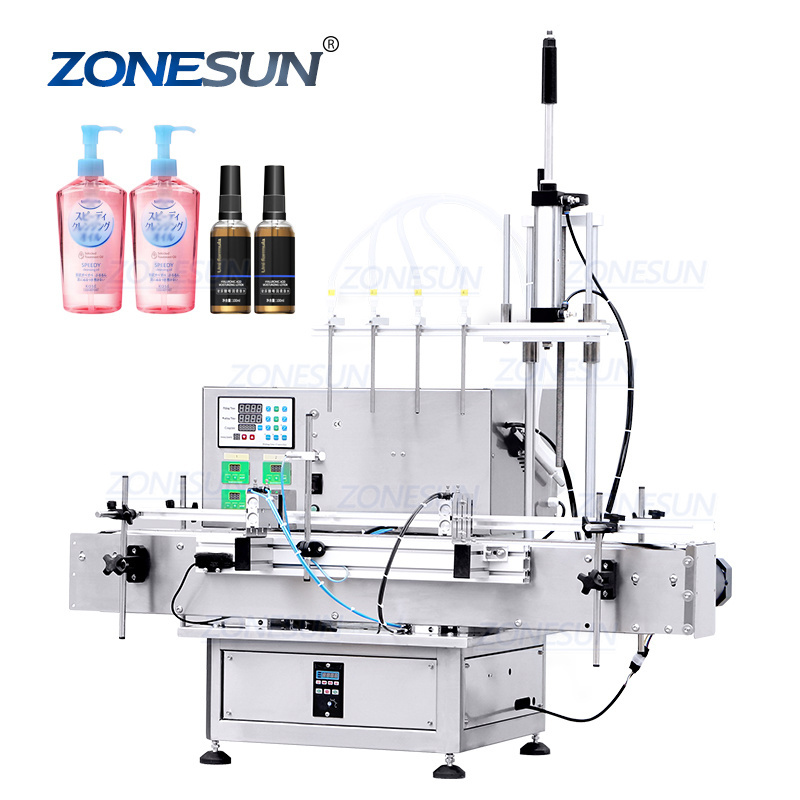

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc.Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump.It is good choice for strong corrosive liquid such as biological liquid, eye drops,sulfuric acid, hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.
|
Machine model
|
ZS-DTPP4D
|
|
|
|
|||
|
Power supply
|
AC110V/220V 50Hz-60Hz 60W(Each Pump)
|
|
|
|
|||
|
Filling Range
|
2500ml/min
|
|
|
|
|||
|
Maximum flow
|
2500ml/min for each nozzle (based on water )
|
|
|
|
|||
|
Filling nozzles
|
4(we can customize the nozzles based on your demands)
|
|
|
|
|||
|
Working speed
|
30-50 bottles/min(based on bottles and liquids)
|
|
|
|
|||
|
Air pressure
|
0.3-0.4MPa
|
|
|
|
|||
|
Filling accuracy
|
≤±1% (For water)
|
|
|
|
|||
|
Diameter of filling nozzle
|
6/8mm
|
|
|
|
|||
|
Delay range
|
0.01-999.9s
|
|
|
|
|||
|
Belt length
|
1m
|
|
|
|
|||
|
Size of air compressor connector
|
OD8mm
|
|
|
|
|||
|
Package size
|
About 1150*770*840mm
|
|
|
|
|||
|
Package weight
|
About 110kg
|
|
|
|
|||
The larger air cylinder is used to control the lifting distance of diving nozzles. This kind of filling nozzle is suitable for filling foamy liquid,improves production quality.
The liquid will not pass through the
pump and be flled.Ensure the liquid
is clean and improve your production quality.Compared with
another peristaltic pump filling
machine,this one will be easier to
change filling hose.
