Quick Details
-
Model Number:
-
CYJ
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Regular
-
Weight:
-
Weight
-
Features:
-
API 11E Spe
-
Warranty:
-
1 year
-
Product name:
-
Rotaflex Pumping Unit
-
Type:
-
B, C
-
Standard:
-
API 11E
-
Torque of the reducer:
-
16000-1824000 in.lbs
-
Polished rod load:
-
5300-42700LBS
-
Length of stroke:
-
20-240in
-
Way of balance:
-
crank or walking beam
-
Advantage:
-
long stroke and low frequency stroke
-
Application:
-
offer power to sucker rod pump
-
Package:
-
nude
-
Certification:
-
API 11E
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZS
-
Model Number:
-
CYJ
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Regular
-
Weight:
-
Weight
-
Features:
-
API 11E Spe
-
Warranty:
-
1 year
-
Product name:
-
Rotaflex Pumping Unit
-
Type:
-
B, C
-
Standard:
-
API 11E
-
Torque of the reducer:
-
16000-1824000 in.lbs
-
Polished rod load:
-
5300-42700LBS
-
Length of stroke:
-
20-240in
-
Way of balance:
-
crank or walking beam
-
Advantage:
-
long stroke and low frequency stroke
-
Application:
-
offer power to sucker rod pump
-
Package:
-
nude
-
Certification:
-
API 11E

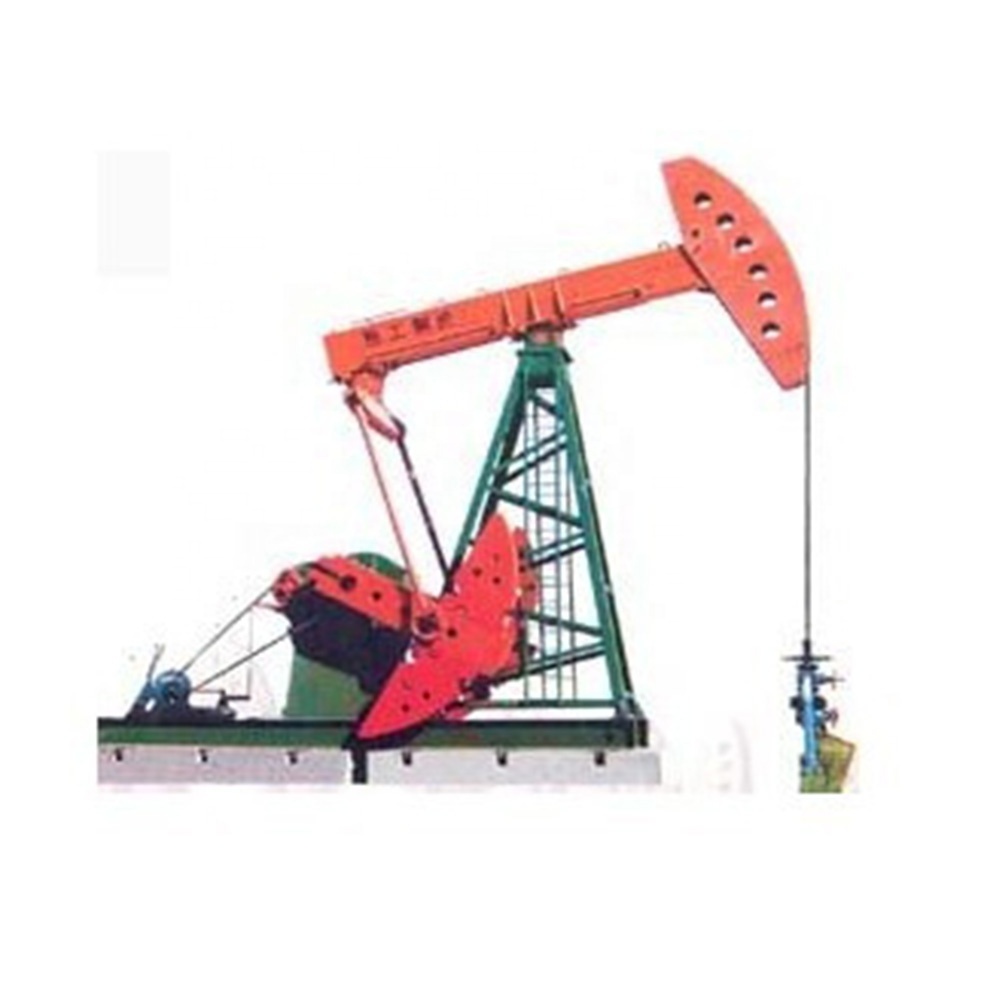

API Pumping Jacks / Rotaflex Pumping Unit
2. API 5CT, 11AX, 11E, 6A and ISO Certificates
3. Strict Quality Control System
4. Prompt Delivery Time
1) Standard: API Spec 11E
2) API and ISO certified
3) Type: B, C
4) Description of Pumping Unit
API B Series pumping unit is a light-weight conventional beam pumping unit, adopting walking beam as its way of balance.
API C Series pumping unit is a conventional beam pumping unit, adopting crank as its way of balance.
5) Features of B Series Pumping Unit
a. Simple structure, easy maintenance and long lifespan.
b. Adopted the involute or biarc herring bone gear in symmetric distribution type to transmit, the reducer operates stably and reliably.
c. The whole machine is light weighted, convenient for installation and transportation.
d. This model is fit for the oil pumping in shallow well with short length of stroke and light loads.
6) Features of C Series Pumping Unit
a. Featured in modular and virtual manufacturing technology design, the product boasts of its optimizing structure and high level of standardization, generalization and serialization.
b. Having passed the FEM(finite element) analysis and research, the key structural components possess stable performance and high reliability.
c. Adopted the involute or biarc herring bone gear in symmetric distribution type to transmit, the reducer is renowned for its tight seal, low noise, smooth operation and reliability and durability.
d. The whole machine features in easy operation, convenient maintenance and long lifespan.
7) Parameter of B Series Pumping Unit
| NO. | Model | Rated Polished Rod Load(lb) | Length of Stroke(in) | Rated Torque of the Reducer(in.lb) |
| B-80D-119-64 | 11,900 | 64, 54 | 80,000 | |
| B-80D-76-64 | 7,600 | 64, 54 | 80,000 | |
| B-80D-133-54 | 13,300 | 54, 41 | 80,000 | |
| B-80D-119-54 | 11,900 | 54, 41 | 80,000 | |
| B-80D-76-54 | 7,600 | 54, 41 | 80,000 | |
| B-80D-133-48 | 13,300 | 48, 35 | 80,000 | |
| B-80D-109-48 | 10,900 | 48, 35 | 80,000 | |
| B-57D-109-54 | 10,900 | 54, 41 | 57,000 | |
| B-57D-89-54 | 8,900 | 54, 41 | 57,000 | |
| B-57D-76-54 | 7,600 | 54, 41 | 57,000 | |
| B-57D-109-48 | 10,900 | 48, 35 | 57,000 | |
| B-57D-95-48 | 9,500 | 48, 35 | 57,000 | |
| B-57D-89-48 | 8,900 | 48, 35 | 57,000 | |
| B-57D-89-42 | 8,900 | 42, 32 | 57,000 | |
| B-40D-89-48 | 8,900 | 48, 35 | 40,000 | |
| B-57D-76-42 | 7,600 | 42, 32 | 57,000 | |
| B-40D-76-42 | 7,600 | 42, 32 | 40,000 | |
| B-25D-67-36 | 6,700 | 36, 27 | 25,000 | |
| B-25D-53-30 | 5,300 | 30, 23 | 25,000 | |
| B-16D-53-30 | 5,300 | 30, 23 | 16,000 |
7) Parameter of C Series Pumping Unit
