Quick Details
-
Brand Name:
-
ManHua
-
Model Number:
-
MMS-400
-
Max. Current:
-
690VAC
-
operation:
-
manual
-
poles:
-
4
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
630A
-
Place of Origin:
-
China
-
Brand Name:
-
ManHua
-
Model Number:
-
MMS-400
-
Max. Current:
-
690VAC
-
operation:
-
manual
-
poles:
-
4
-
Certification:
-
CE
♦Features

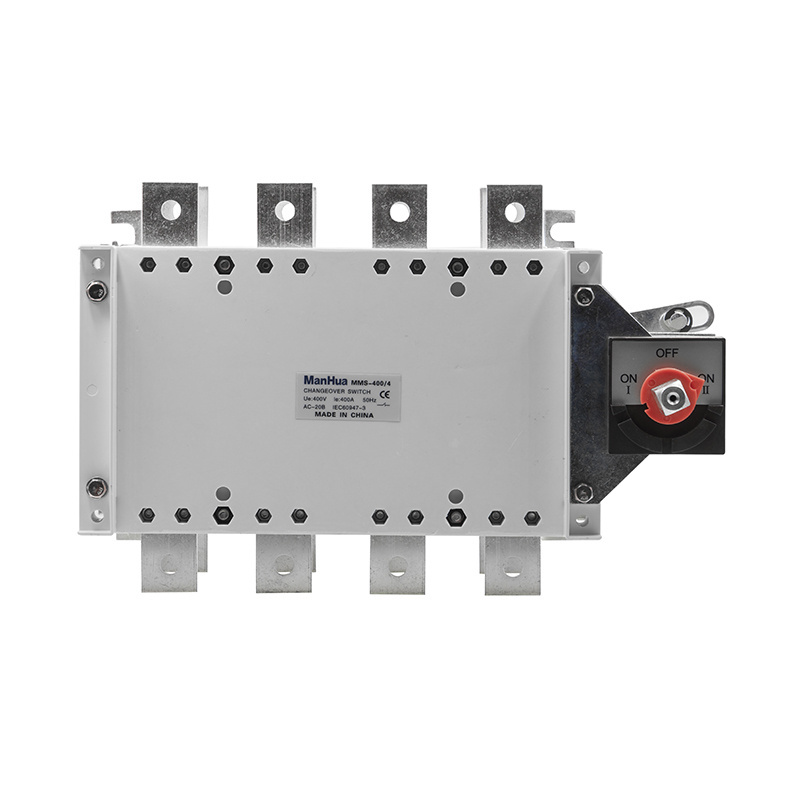

MMS product is MANUALLY operated multi polar changeover switches.
They ensure switching, transfer of sources or transfer of two low voltage circuits on load and their safefy disconnection
Fully visible breaking, 3 stable positions(I,0,11) or overlapping contacts on request(1,1+II,II),and on load changeover switching(AC-22 and AC-23)Manual emergency operation. It widely applies to the time control of the equipments, streetlight, warehouse, farming,heating and TV.
♦THE TECHNICAL DATA
| Conventional thermal current Ith A 40 ℃ | 160A | 250A | 400A | 630A | |
| Rated impulse withstand voltage Ui (V) | 800 | 800 | 800 | 1000 | |
| Rated striking voltageUimp (KV) | 8 | 8 | 8 | 12 | |
| Rated voltage | overload type | A/B | A/B | A/B | A/B |
| 400VAC | AC-21A/AC-21B | 160/160 | 250/250 | 400/400 | 630/630 |
| AC-22A/AC-22B | 160/160 | 250/250 | 400/400 | 630/630 | |
| AC-23A/AC-23B | 160/160 | 250/250 | 250/250 | 500/500 | |
| 690VAC | AC-20A/AC-20B | 60/160 | 250/250 | 400/400 | 630/630 |
| AC-21A/AC-21B | 60/160 | 200/250 | 200/250 | 5 00/500 | |
| AC-22A/AC-22B | 125/125 | 125/160 | 125/160 | 315/315 | |
| AC-22A/AC-23B | 63/80 | 100/125 | 100/125 | 160/200 | |
| 220VDC | DC-20A/DC-20B | 125/125 | 250/250 | 400/400 | 630/630 |
| DC-21A/DC-21B | 125/125 | 250/250 | 250/250 | 630/630 | |
| DC-22A/DC-22B | 125/125 | 250/250 | 250/250 | 500/500 | |
| DC-23A/DC-23B | 125/125 | 200/200 | 200/200 | 500/500 | |
| operation power | No break down under 400VAC | 80/80 | 132/132 | 132/132 | 280/280 |
| No break down under 690VAC | 55/75 | 90/110 | 90/110 | 150/185 | |
| Reactive power | 400VAC(kvar) | 75 | 115 | 185 | 290 |
| Uses the fuse short-circuit current condition (the Karms required value) | required short-circuit creent value | 100 | 50 | 8 | 70 |
| Fuse Capacity | 160 | 250 | 400 | 630 | |
| Short-circuit capability | Allowed short time endure current | 7 | 9 | 9 | 13 |
| Short-circuit dynamic intensity | 20 | 30 | 30 | 45 | |
| Connection | Minimal copper cable section | 50 | 95 | 185 | 2x150 |
| Minimal copper row width | 2x30x5 | ||||
| Maximal copper cable section | 95 | 150 | 240 | 2x300 | |
| Maximal copper row width | 25 | 32 | 32 | 50 | |
| Minimal tighten wrest distance | 9 | 20 | 20 | 20 | |
| Machanism Characteristic | Life( operation cycle times) | 10000 | 10000 | 10000 | 5000 |
| 3pole switch weight(kg) | 1.6 | 2 | 3 | 3.5 | |
| 4pole switch weight(kg) | 1.7 | 2.1 | 3.5 | 4 | |
