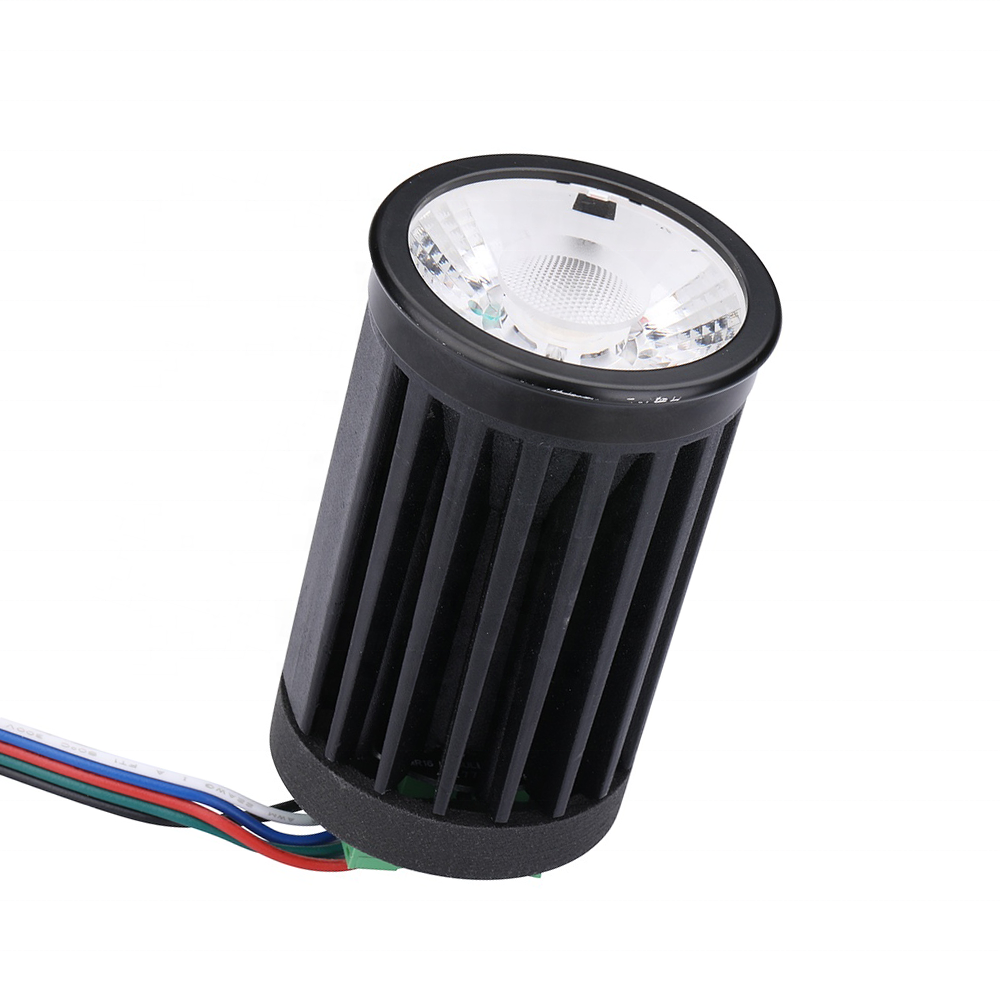

10W smartlight dmx 24v rgbw 4-in-1 MR16 module spotlight suitable for loxone/knx/dali/ DMX512/0-10V smart home automation
1 Brightness adjustable:1% brightness ~highest brightness freely
- Product Details
- {{item.text}}
Quick Details
-
Lamp Body Material:
-
Aluminum
-
Product Weight（kg）:
-
0.25
-
Input Voltage(V):
-
24V/12V
-
Lamp Luminous Flux(lm):
-
900
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Benory
-
Model Number:
-
BNL-SP08
-
Beam Angle:
-
30D/60D/ 10D /20D
-
Input Voltage:
-
24v rgbw mr16
-
Material:
-
Die-casting Aluminum
-
Color:
-
RGBW/ RBG
-
Power:
-
6w 8w 10w
-
Size:
-
D50mm*H62mm
-
Type:
-
led cct mr16 24v DMX RGB MR16 Module
-
Dimmable:
-
dali dimmable led cct mr16 24v
-
Suitable power supply:
-
DMX512 or PWM or DALI dimmable
-
Wattage:
-
8W
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Lamp Body Material:
-
Aluminum
-
Product Weight（kg）:
-
0.25
-
Input Voltage(V):
-
24V/12V
-
Lamp Luminous Flux(lm):
-
900
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Benory
-
Model Number:
-
BNL-SP08
-
Beam Angle:
-
30D/60D/ 10D /20D
-
Input Voltage:
-
24v rgbw mr16
-
Material:
-
Die-casting Aluminum
-
Color:
-
RGBW/ RBG
-
Power:
-
6w 8w 10w
-
Size:
-
D50mm*H62mm
-
Type:
-
led cct mr16 24v DMX RGB MR16 Module
-
Dimmable:
-
dali dimmable led cct mr16 24v
-
Suitable power supply:
-
DMX512 or PWM or DALI dimmable
-
Wattage:
-
8W
|
Setting Information
|
|
|
|
Housing
|
Die-Cast Aluminum
|
|
|
Led Input
voltage
|
24V /12V
|
|
|
Power
|
8W/10W
|
|
|
Shell color
|
Silver
|
|
|
Power Supply
|
Dali dimmable/ PWM Dimming or DMX512 Controller
|
|
|
Color Temperature
|
2700K - 6000K Tunable white / RGB / RGBW
|
|
|
Size
|
50*62mm
|
|
|
Shelf life
|
2 years
|
|
Products details
RGB Version: 4 separate connecting cables, suitable for Dali constant Voltage dimming driver or PWM Dimmable Driver
Led Input voltage: 24V or 12V
Beam Angle: 38degree or 60 degree
Color Temperature: R/G/B
Material: Machined- Alumunum
Application areas:
- Event applications
- Offices
- medical practices
- Hotels
- restaurants
- Furniture lamp
- Private housing
- Shop lighting
Product Details
Led Input voltage: 24V or 12V
Beam Angle: 38degree or 60 degree
Color Temperature: R/G/B W: 2000K-6000K
Material: Machined- Alumunum
Product Details
Good feedback from client: No problem at all Luminosity curve rather flat between 1 and 10%
No discernible flickering
They are also can supply in Single Color Temperature in Non dim / Triac dimmable / 0-10V or 1-10v dimmable optional
Shell color: Silver / Black
Free of harmful mercury, environment friendly;
|
Model
|
Tunable White MR16 Module
|
RGB MR16 Module
|
RGBW MR16 Module
|
|
LED Light Source
|
2000k-6000k or 2700k-6500k or 1800k-4500k tumable white cct
|
RGB Color
|
RGBW ( WA) 2700K
RGBW ( CW) 6000K
|
|
Bulb Watt
|
8W/10W
|
8W /10W
|
8W/10W
|
|
Input Voltage
|
DC12V or DC24V Dali dimming
|
DC12V or DC24V Dali dimming / DMX512/ PWM Dimmable
|
DC12V or DC24V Dali dimming / DMX512/ PWM Dimmable
|
