Quick Details
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR18-5D
-
Dimension (L x W x H):
-
49.5x49.5x25cm
-
Product Name:
-
pro woofer speaker
-
Voice Coil Diameter:
-
100mm/4 inch
-
AES Power Handing:
-
750W
-
Nominal lmpedance:
-
8Ω
-
Magnet:
-
Ferrite Ring
-
Nominal Diameter:
-
460mm/18inch
-
Sensitivity(1W/1m):
-
96dB
-
Frequency range:
-
38.7Hz~2.5kHz
-
Shipping Weight:
-
14.2kg
-
Shipping Box(Single):
-
49.5x49.5x25cm
Quick Details
-
Power:
-
750W
-
Frequency Range (Hz):
-
38.7Hz~2.5kHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR18-5D
-
Dimension (L x W x H):
-
49.5x49.5x25cm
-
Product Name:
-
pro woofer speaker
-
Voice Coil Diameter:
-
100mm/4 inch
-
AES Power Handing:
-
750W
-
Nominal lmpedance:
-
8Ω
-
Magnet:
-
Ferrite Ring
-
Nominal Diameter:
-
460mm/18inch
-
Sensitivity(1W/1m):
-
96dB
-
Frequency range:
-
38.7Hz~2.5kHz
-
Shipping Weight:
-
14.2kg
-
Shipping Box(Single):
-
49.5x49.5x25cm

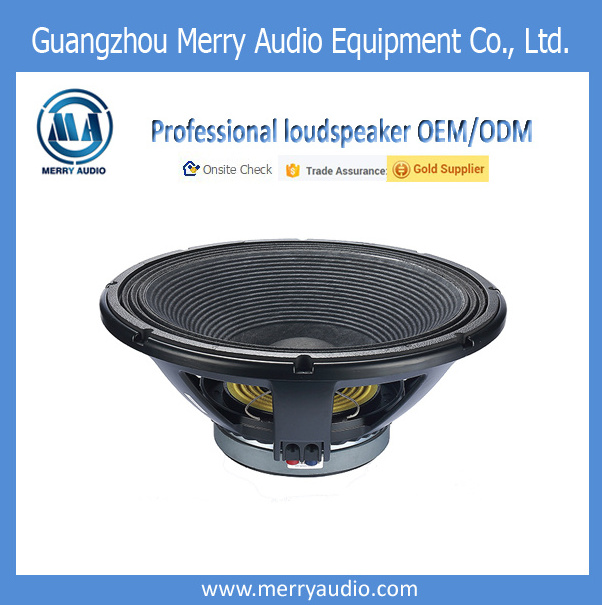

big power 18inch 4'' vc big bass outdoor performance power pro woofer speaker for stage speaker box
| General Specifications | |
| Nominal Diameter | 460mm/18inch |
| Nominal Impedance | 8Ω |
| AES Power Handing | 750W |
| Continuous Program Power | 1500W |
| Sensitivity 1W/1M | 96dB |
| Frequency Range | 38.7Hz~2.5kHz |
| Voice Coil Diameter | 100mm/4 inch |
| Windinig Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 23mm |
| Magnetic Gap Depth | 12mm |
| surround material | Polycotton |
| surround Design | Triple-roll |
| Magnet Φ220 | Ferrite Ring |
| Thiele & Small Parameters | |
| Resonance Frequency | 38.7Hz |
| DC Resistance | 5Ω |
| Mechanical Factor | 8.479 |
| Electrical Factor | 0.443 |
| Total Factor | 0.421 |
| BL Factor | 22.49T.m |
| Effective Moving Mass | 184.7gr |
| Compliance | 91.73μ M/N |
| Equivalent Cas Air Load | 195.6dm 3 |
| Effettive Piston Area | 1225.4cm 2 |
| η(Eta Zero) | 0.0247 |
| Mountiong & Shipping Information | |
| Overall Diameter | 466mm |
| Bolt circle diameter | 445mm |
| Baffle Cutout Diameter | 422dm |
| Depth | 219cm |
| Net Weight | 12.5kg |
| Shipping Weight | 14.2kg |
| Shipping Box(Single) | 49.5x49.5x25cm |
1- 4inch voice coil:
2- Ferrite Magnetics;
3- Model:MR18-5D;
4-750Watts peak power.
