Quick Details
-
Brand Name:
-
QIANDAO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1360*1240*1000mm
-
Weight (KG):
-
950
-
Power (kW):
-
3.16
-
Grinding diameter of OD:
-
2~80 mm
-
Grinding length of OD:
-
300 mm
-
Max workpiece weight:
-
10 kg
-
Center height:
-
115mm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO,CE
Quick Details
-
Wheel Size(mm):
-
250*25*75
-
Year:
-
2022
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
QIANDAO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1360*1240*1000mm
-
Weight (KG):
-
950
-
Power (kW):
-
3.16
-
Grinding diameter of OD:
-
2~80 mm
-
Grinding length of OD:
-
300 mm
-
Max workpiece weight:
-
10 kg
-
Center height:
-
115mm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO,CE

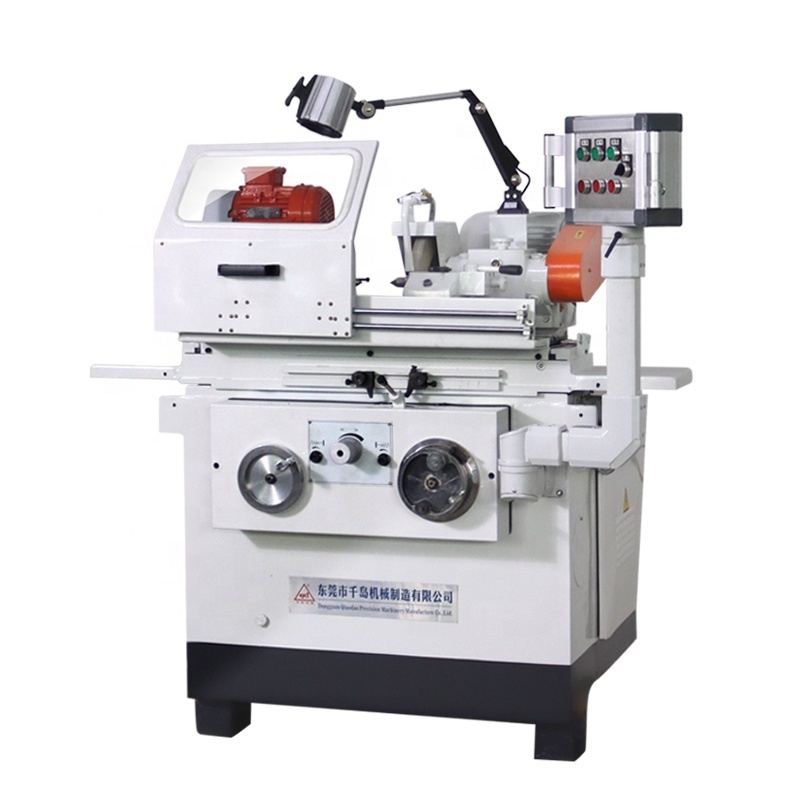

Product Description
Specification
|
Grinding diameter of OD
|
2~80mm
|
|
Grinding length of OD
|
300mm
|
|
Center height
|
115mm
|
|
Max workpiece weight
|
10kg
|
|
Workbench speed
|
0.1~4(r/min)
|
|
Grinding wheel line speed
|
35(m/sec)
|
|
Max travel of workbench
|
320
|
|
External grinding wheel size
|
Max 250*25*75 / Min 180*25*75
|
|
Grinding head motor power
|
2.2KW
|
|
Headstock motor power
|
0.37KW
|
|
Hydraulic system motor
|
0.55KW
|
|
Pump motor power
|
40W
|
|
Tail stock taper morse
|
Morse NO.3
|
|
Motor total power
|
3.16kW
|
|
size
|
1360x1240x1000mm
|
|
weight
|
950KG
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
