Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fullwin
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
CAPACITY
-
Power (kW):
-
50
-
Weight:
-
2000 KG
-
Item name:
-
Extrusion Machine
-
Raw material:
-
PP PE PVC Granules Powder
-
Motor:
-
AC Motor
-
Processing Type:
-
Extrusion Production
-
Certification:
-
CE ISO
-
Test machine video:
-
Provided
-
Test machine report:
-
Provided
-
Related machine:
-
High speed single wall corrugated pipe machine
-
After-sales Service Provided:
-
YES
-
Key words:
-
Corrugated pipe Extrusion Machine
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
90 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fullwin
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
CAPACITY
-
Power (kW):
-
50
-
Weight:
-
2000 KG
-
Item name:
-
Extrusion Machine
-
Raw material:
-
PP PE PVC Granules Powder
-
Motor:
-
AC Motor
-
Processing Type:
-
Extrusion Production
-
Certification:
-
CE ISO
-
Test machine video:
-
Provided
-
Test machine report:
-
Provided
-
Related machine:
-
High speed single wall corrugated pipe machine
-
After-sales Service Provided:
-
YES
-
Key words:
-
Corrugated pipe Extrusion Machine

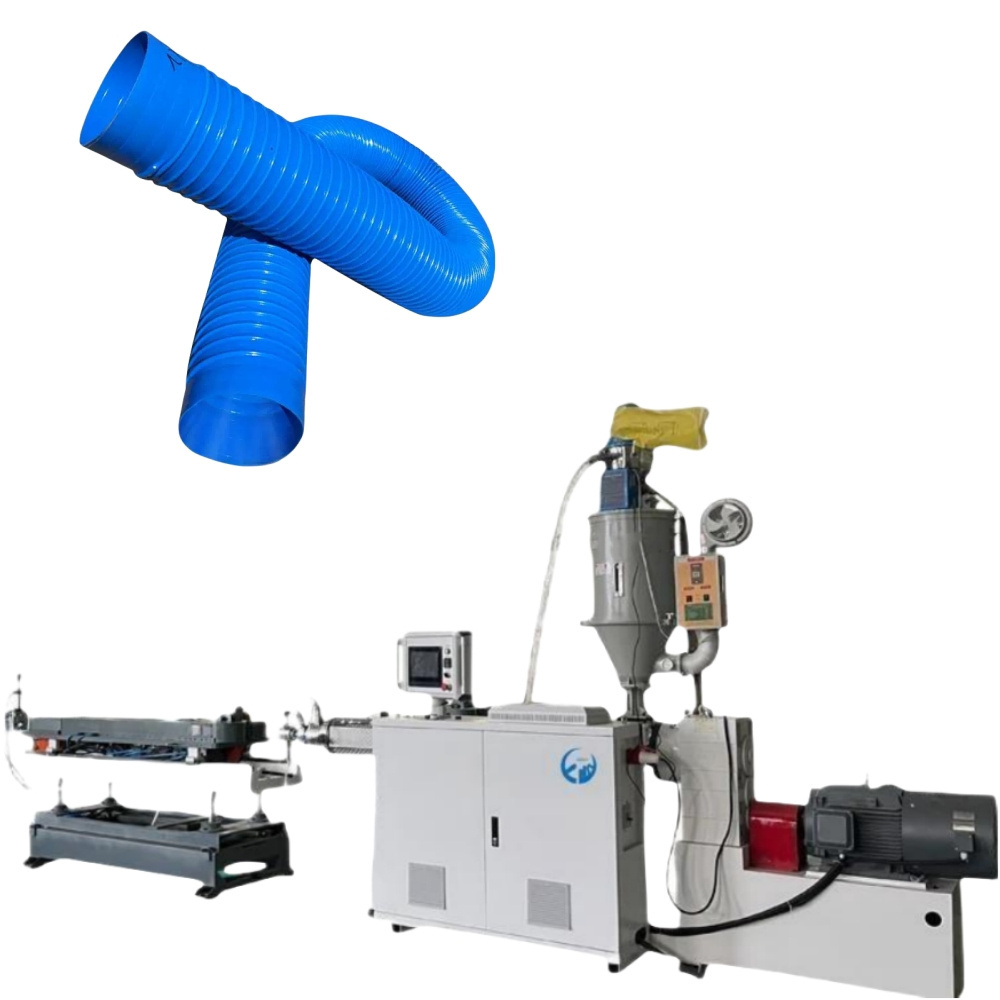

Machine Specification
|
Name
|
Plastic Pe Pp Pvc Plastic Flexible Single Wall Corrugated Conduit Pvc Pipe Hose Tuba Extrusion Making Machine Production Line
|
|
|
|
|||
|
Related machine
|
High speed single wall Corrugated pipe Machine
|
|
|
|
|||
|
Processing Type
|
Extruding Machine
|
|
|
|
|||
|
Final products
|
1.Air conditioning pipe
2.Shisha hookah hose pipe
3.medical breathing corrugated pipe
4.Washing machine water drainage pipe
5.Electrical wire conduit corrugated pipe
6.Shrinking corrugated pop tube
|
|
|
|
|||
Equipment List
|
NO
|
Name
|
Qty
|
|
1
|
Vacuum feeder and hopper dryer
|
1set
|
|
2
|
SJ65/30 Single Screw Extruder
|
1set
|
|
3
|
New Design corrugated pipe Die head
|
1set
|
|
4
|
Core bar and mouth mold
|
1set
|
|
5
|
Corrugated pipe forming mould
|
1set
|
|
6
|
Corrugated pipe forming machine
|
1set
|
|
7
|
Double station winding machine
|
1set
|
|
8
|
Free spare parts
|
1set
|
|
9
|
PLC control system
|
1set
|
Machine details & advantages
SJ65/30 Single screw extruder
Higher fusion rate, even melting, and stable continuous production. The high efficiency gear motor provides greater torque, longer service and lower noise
Die head with new dewsign energy saving heater ring
Adding rock wool into the heater ring can help keep heat, then
saving
electricity
about 30% for customer
.
Fullwin new design, the core bar and mouth mould fit together. When changing the size, it don't need change the core bar and mouth separately like old design. I
t can save more than 1hour when cleaning the waste material.
Forming machine and Forming mould
1.
Forming machine adjustment:manual control left and right,Electric control up and down.
2.Water cooling system, cooling easier.
3.Double cavity in one set of mould.
Automatic wiring device which can balance the speed between pipe producing and rewinding.The device will stop rewinding when the
pipe production is slow to prevent the pipe from getting too tight or disconnected.
pipe production is slow to prevent the pipe from getting too tight or disconnected.
Final Product & Application
