Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
bastor
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
2 KG
-
Working Temperature Range:
-
1 - 800 ℃
-
Core Components:
-
HEATING WIRE
-
Product name:
-

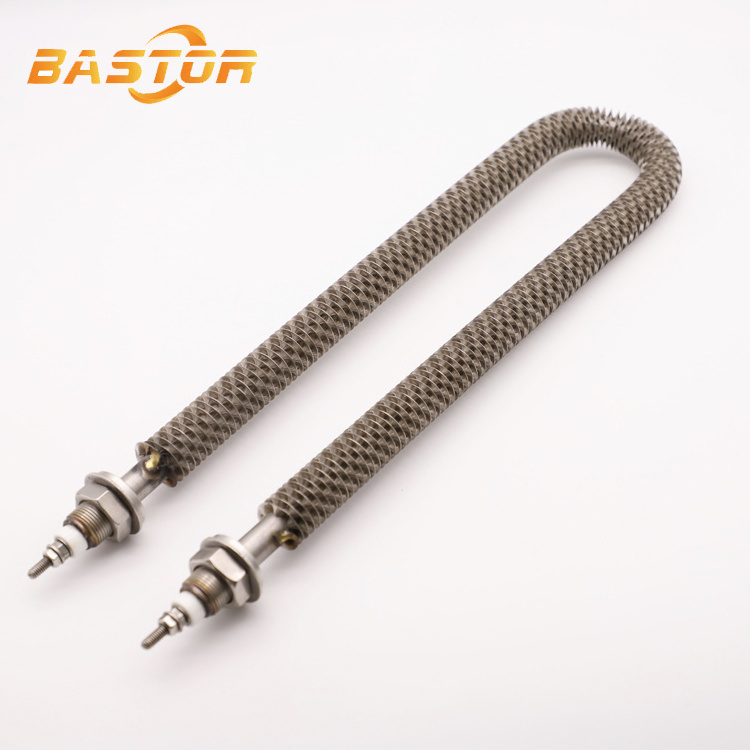

stainless fryer oven tubular coil electric finned air heating element
-
Tube Diameter:
-
8mm/10mm/12mm/14mm/16mm etc.
-
Application:
-
oil, water ,other liquid etc
-
Shape:
-
I/W/U/L/ROUND
-
Standard Cold Zone:
-
5-10mm or customized
-
Fin space:
-
5-25mm or customized
-
Diameter tolerance:
-
-0.02mm
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
110v-415v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
bastor
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
2 KG
-
Working Temperature Range:
-
1 - 800 ℃
-
Core Components:
-
HEATING WIRE
-
Product name:
-
stainless fryer oven tubular coil electric finned air heating element
-
Tube Diameter:
-
8mm/10mm/12mm/14mm/16mm etc.
-
Application:
-
oil, water ,other liquid etc
-
Shape:
-
I/W/U/L/ROUND
-
Standard Cold Zone:
-
5-10mm or customized
-
Fin space:
-
5-25mm or customized
-
Diameter tolerance:
-
-0.02mm
Finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins
4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit
faster heat transfer to air, resulting in lower surface element temperatures
Stock size
| product | shape | voltage power | tube diameter | thread size | total size |
| finned heater | U | 220V 500W | 12MM | M18 | 300MM |
| U | 220V 1KW | 12MM | M18 | 350MM | |
| U | 220V 1.2KW | 12MM | M18 | 400MM | |
| U | 220V 1.5KW | 12MM | M18 | 450MM | |
| U | 220V 2KW | 12MM | M18 | 500MM | |
| U | 380v 2KW | 12MM | M18 | 500MM | |
| W | 220V 1.5KW | 12MM | M18 | 400MM | |
| W | 220V 2.5KW | 12MM | M18 | 450MM | |
| W | 220V 3.5KW | 12MM | M18 | 600MM | |
| W | 380v 2.5KW | 12MM | M18 | 450MM | |
| W | 380v 3.5KW | 12MM | M18 | 600MM |
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
