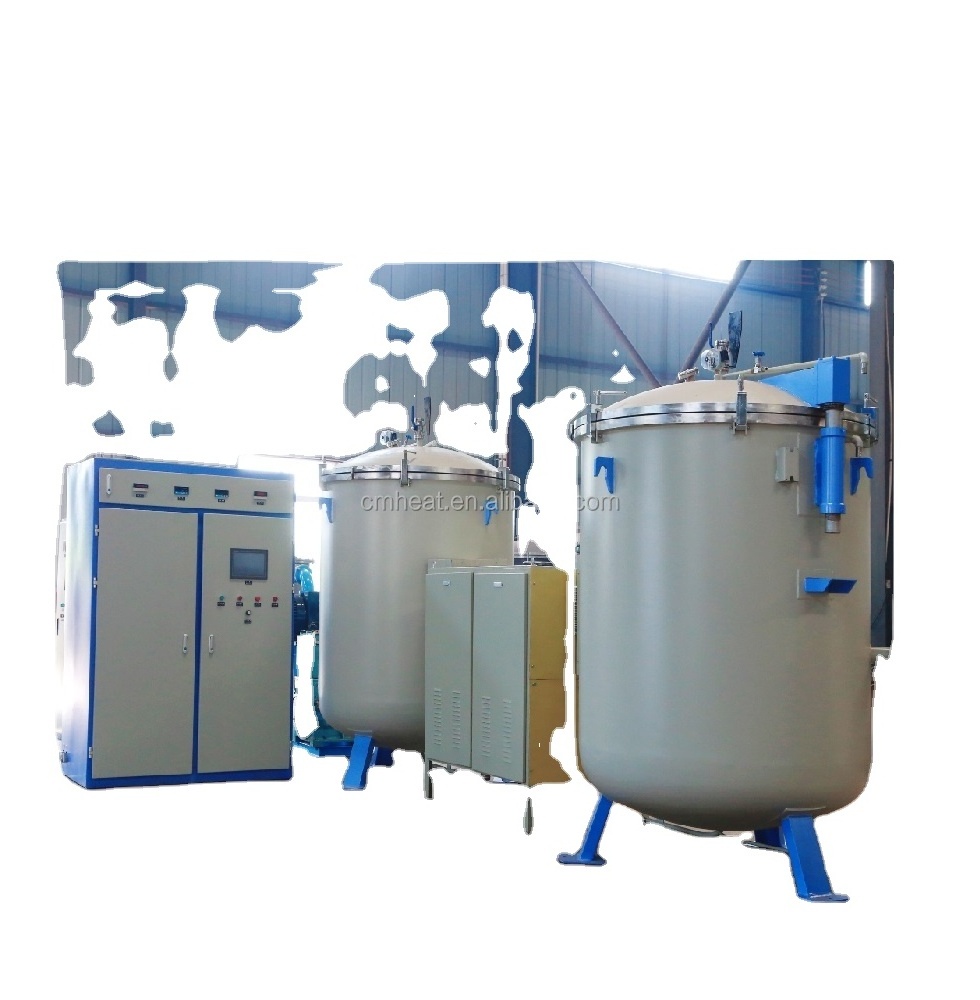

50kg Vacuum induction melting furnace with 2500 C for sales

50kg Vacuum induction melting furnace with 2500 C for sales

Vacuum induction melting furnace is vacuum induction smelting equipment which can melt metal and sinter power by using th e medium frequency induction heating principle under the condition of vacuum.  It is applicable in the field of metal materials, such as Ni,special steel, precision alloys, Cu alloys, Nd-Fe-B ,Dysprosium metal, active metal, high-temperature alloys, special materials ,magnetic materials and so on. These metal materials can be melted, cast and sintered in a vacuum or in the prot- ection of the atmosphere.

Features:
1.High temperature: up to 3000 celsius ;
2.Far infrared thermometer;
3.Water Cooling;
4.PID control;
5.Graphite crucible.

Main technical parameters:

Maximum temperature: 3000 °C
High-temperature zone volume: 0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3
Furnace working atmosphere: vacuum, hydrogen, nitrogen, inert gases
Temperature uniformity: ≤ ± 10 °C
Temperature measurement: infrared optical temperature measurement range of 800 ~ 3500 °C temperature or 0 ~ 3500 °C; Accuracy: 0.2 ~ 0.75%.
Temperature control: process control and manual control; control accuracy: ± 1 °C
Limit heating rate: 200 °C / min (air furnace, depending on the volume and the high temperature furnace configuration).

Product Description

Vacuum Melting Furnace is periodic operating, providing vacuum or protective atmosphere, in which the alloy steel, lanthanum and others can smelt and cast. Besides, it can be also used in metal materials' refining.
