Quick Details
-
Place of Origin:
-
Sichuan, China
-
CBN Material:
-
Imported from DI, E6
-
Insert Shape:
-
Square
-
CBN Cutting Edge:
-
Solid
-
Edge processing:
-
Chamfer
-
Type:
-
With through hole
-
Product name:
-
CNC cutting tools pcbn tool WNMA Solid CBN insert
-
Production Standard:
-
ISO 1832:2004
-
Samples:
-
A few pcs free for testing
-
Transportation:
-
Sea, Air, DHL, UPS, TNT, DPEX...on request
-
Stock:
-
Available with Solid CBN
Quick Details
-
Usage:
-
External Turning Tool
-
Hardness:
-
2500-4500 HV
-
Coating:
-
No coating
-
Place of Origin:
-
Sichuan, China
-
CBN Material:
-
Imported from DI, E6
-
Insert Shape:
-
Square
-
CBN Cutting Edge:
-
Solid
-
Edge processing:
-
Chamfer
-
Type:
-
With through hole
-
Product name:
-
CNC cutting tools pcbn tool WNMA Solid CBN insert
-
Production Standard:
-
ISO 1832:2004
-
Samples:
-
A few pcs free for testing
-
Transportation:
-
Sea, Air, DHL, UPS, TNT, DPEX...on request
-
Stock:
-
Available with Solid CBN

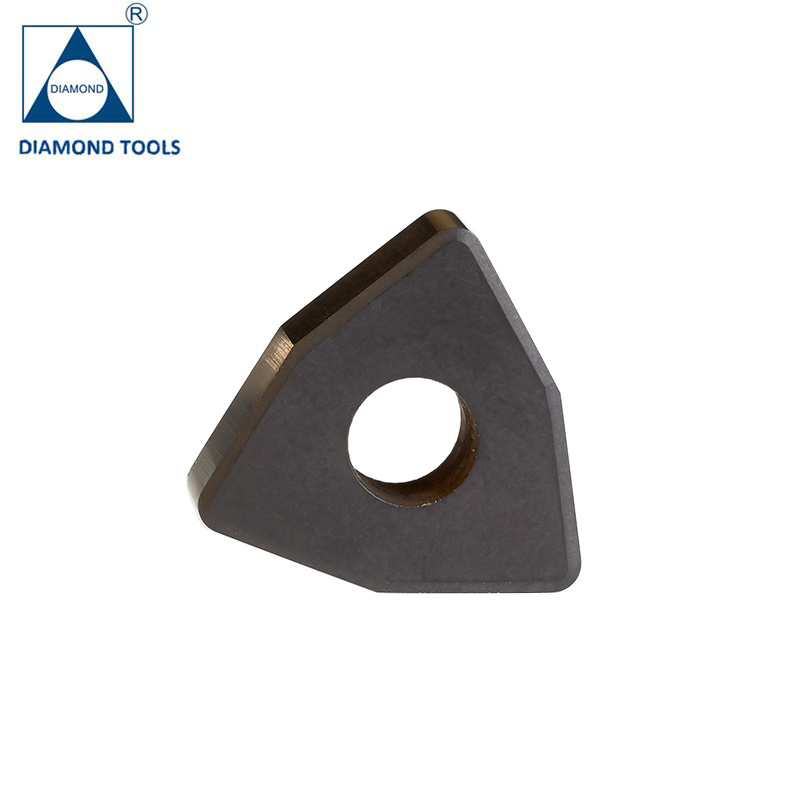

CNC cutting tools pcbn tool WNMA Solid CBN insert
1. High hardness, toughness and wear resistance
2. High cutting speed and superior finish machining
3. Work efficiency of turning improved by 5-10 times when compared to grinding
4. Top quality as world leading brands
Specification
| Shape | Insert | Dimension (mm) | |||
| I.C. | T | d | r | ||
|
SNMA090304 | 9.525 | 3.18 | 3.81 | 0.4 |
| SNMA090308 | 9.525 | 3.18 | 3.81 | 0.8 | |
| SNMA090404 | 9.525 | 4.76 | 3.81 | 0.4 | |
| SNMA090408 | 9.525 | 4.76 | 3.81 | 0.8 | |
| SNMA120404 | 12.7 | 4.76 | 5.16 | 0.4 | |
| SNMA120408 | 12.7 | 4.76 | 5.16 | 0.8 | |
| SNMA120412 | 12.7 | 4.76 | 5.16 | 1.2 | |
| SNMA150404 | 15.875 | 6.35 | 6.35 | 0.4 | |
| SNMA150604 | 15.875 | 6.35 | 6.35 | 0.8 | |
| SNMA150608 | 15.875 | 6.35 | 6.35 | 1.2 | |
Other Standard Inserts Available with CBN, PCD
| CCMT | SCMW | SECN | TEEN | VNMA | ODEW | DHD |
| CCMW | SCGW | SEGN | TECN | VBMW | XEEN | MP |
| CNMA | SNMA | SNGA | TEEW | VCMW | EDR | G25 |
| CCGW | SNGN | TPGH | TECW | VNMG | SDR | ADEW |
| CNMN | SNMN | TCGW | RNMN | VNMP | DED | TEEW |
| CPMN | SPMN | TPGN | RNGN | VPGA | DGD | SDEN |
| DCGW | SPGN | TNMA | REEN | VPGR | DFD | SEEN |
| DNMA | SPCN | TEHW | RCMN | WNMA | ... ... | |
| Application | Speed | Feed Rate | Depth of Cutting |
| (m/min) | (mm/rev) | (mm) | |
| Hardened Steel (HRC 50-67) | 50-150 | 0.05-0.12 | ~0.2 |
| Gray cast iron (About HB200) | 500-1000 | 0.1-0.5 | ~3.0 |
| Super hard cast iron (HRC 50-64) | 50-100 | 0.1-0.3 | ~2.5 |
| Powder metallurgy workpiece | 80-200 | 0.03-0.2 | ~1.0 |
| Thermal spray coating workpiece | 50-150 | 0.1-1.0 | ~2.5 |
| Carbide HRA=80-88 (with Co>15%) | 5-40 | 0.05-0.2 | ~0.3 |
PCD insert PCD end mill CBN insert
Packing Details: The case used to pack the goods is strong enough to ensure the safe arrival of the goods. We always keep the tenet that customer is king.
Delivery Detail: 3-10 days after receiving payment (if the product in stock will dispatch at once)
