Quick Details
-
Tube Chip Color:
-
Green
-
Pixels:
-
16mm
-
Usage:
-
Indoor/Outdoor
-
Chip meterial:
-
GaAlAs
-
Input Voltage:
-
1.8-3.2V
-
Life:
-
50,000h
-
Digit Height:
-
0.28 inch
-
Wavelength:
-
515-525nm
-
Face Color:
-
Black/Gray face White segment
-
Epoxy Color:
-
White Diffused, green Diffused
-
Polarity:
-
C.C&C.A
-
Certificate:
-
ROHS, ISO9001
-
Pin qty:
-
12 pins
Quick Details
-
Brand Name:
-
HS
-
Display Function:
-
Graphics
-
Screen Dimension:
-
22.6*10*6mm
-
Tube Chip Color:
-
Green
-
Pixels:
-
16mm
-
Usage:
-
Indoor/Outdoor
-
Chip meterial:
-
GaAlAs
-
Input Voltage:
-
1.8-3.2V
-
Life:
-
50,000h
-
Digit Height:
-
0.28 inch
-
Wavelength:
-
515-525nm
-
Face Color:
-
Black/Gray face White segment
-
Epoxy Color:
-
White Diffused, green Diffused
-
Polarity:
-
C.C&C.A
-
Certificate:
-
ROHS, ISO9001
-
Pin qty:
-
12 pins
|

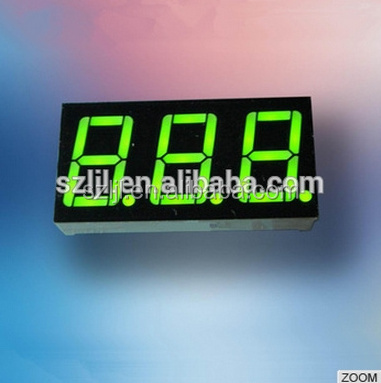

7 Segment LED display ( Three digits)
|
|
|
|
Item Number
|
HS-2381A/BX
|
|
|
Digit Height
|
0.28" (0.28inch=7mm)
|
|
|
Screen Size
|
22.6*10*6mm
|
|
|
Pin Qty
|
12 pins
|
|
|
Tube Chip Color
|
Red (/Yellow/Green/Amber/Bule...)
|
|
|
Face Color
|
Black face/ White Segment
(or Gray face/White Segment)
|
|
|
Lumen
|
50-60mcd ( 70-80mcd/ >200mcd)
|
|
|
Polarity
|
Common Anode/Cathode
|
|
Dominant Wavelength:
Luminous Intensity:
Red
: 620 - 630nm
Red
: 70-90 mcd (1.8-2.3v / 20mA)
High red
: 635 - 640 nm
High red
: 50-70 mcd (1.8-2.3v / 20mA)
Green
: 565 - 575 nm
Green
: 70-90 mcd (1.8-2.3v / 20mA)
Yellow
: 585 - 595 nm
Yellow
: 40-50 mcd (1.8-2.3v / 20mA)
Amber
: 600 - 605nm
Amber
: 30 mcd (1.8-2.3v / 20mA)
Blue
: 460 - 475nm
Blue
: 40-50 mcd (3.0-3.3v / 20mA)
Pure green
: 515 - 525nm
Pure green
: 180-250 mcd (3.0-3.3v / 20mA)
White : 2700-6500K White: 100-180 mcd (3.0-3.3v / )
Features:
1) LED numeric & alphanumeric displays for indoor, semi-outdoor and outdoor application.
2) Digit height: from 0.28" to 20" (0.28", 0.3", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8", 1.0", 1.2", 1.5", 1.8", 2.3", 3.0", 4.0", 5.0", 8.0", 10", 12", 16", 20".)
3) 1-digit, 2-digits, 3-digits, 4-digits, 6-digits available with black or grey face.
4) Various emitting colors: red(640nm), yellow green (572nm),
pure green(525nm), yellow(590nm), blue(430nm), pure blue(470nm).
1). Household eletronics-----DVD/VCD player, Induction cooker, Micro-wave oven, Air-conditioner, E-fan, Washing machine, Soya-bean milk machine, etc.
2). Factory/company equipment-------Instrument panels, Digital read out display, Calendar, Smart meter, Electronic scale, etc.
3). Elevator/lift, Bank exchange rate display, Led clock display, Led oil price display for gas satation and other different display areas of equipment/machine.
