Quick Details
-
Slew Drive Holding Torque:
-
10400N.m
-
Slew Drive Gear Ratio:
-
73:1
-
Slew ring Material:
-
42CrMo/42CrmoT
-
Housing Material:
-
Nodular Iron
-
Rated Output Speed:
-
<2rpm
-
Color:
-
As you need
-
Weight:
-
70kg
-
Static Axis Load:
-
133KN
Quick Details
-
Place of Origin:
-
Beijing, China
-
Slew Drive Output Torque:
-
2600N.m
-
Slew Drive Tilting Moment:
-
13500N.m
-
Slew Drive Holding Torque:
-
10400N.m
-
Slew Drive Gear Ratio:
-
73:1
-
Slew ring Material:
-
42CrMo/42CrmoT
-
Housing Material:
-
Nodular Iron
-
Rated Output Speed:
-
<2rpm
-
Color:
-
As you need
-
Weight:
-
70kg
-
Static Axis Load:
-
133KN

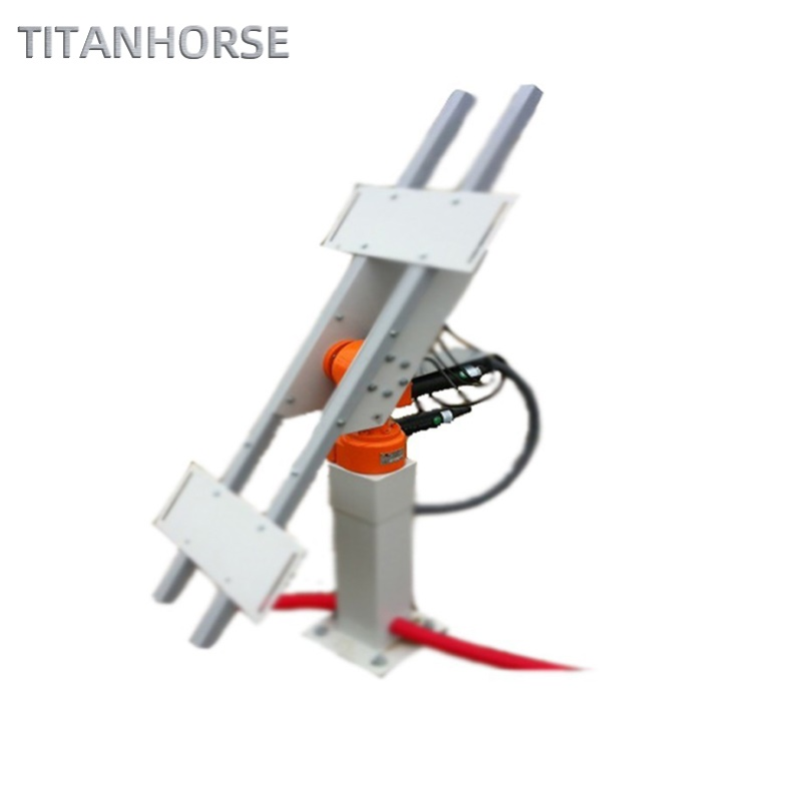

3 Inch Dual Axis Slewing Drive For Solar System
Product Description
| Slewing drive ratio | 73:1 |
| Efficiency | 43% |
| Normal Output Torque | 2010N.m |
| Max.Output torque | 4020N.m |
| Backwards Holding Torque | 10062.m |
| Overturing Moment | 9489N.m |
| Static Radial Rating | 53.3kN |
| Static Axial Rating | 133.2N |
| Dynamic Radial Rating | 27.9N |
| Dynamic Axial Rating | 31.9N |
| Model | DA7 |
| Application | PVC SOLAR TRACKING SYSTEM, CONCENTRATED POWER GENERATION, SOLAR REFLECTORS ETC |
| Tracking precision | <0.03° |
Product Display
