Quick Details
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
1500*3000mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Cutting method:
-
plasma/flame
-
Cutting size:
-
1500*3000mm
-
lifting travel:
-
≤100mm
-
Height control:
-
Automatic THC/Capacitive THC
-
Max idle speed Cutting speed:
-
18000mm/min 0-15000 mm/min(according to the thickness of material)
-
Running accuracy:
-
plasma≤0.005mm/ flame≤0.1mm
-
Cutting thickness:
-
Plasma< 20mm / flame Cutting<150 mm
-
Flame cutting gas:
-
Oxygen + ethyne
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FEIMIA
-
Model Number:
-
FX-LML1530HD
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
1500*3000mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Cutting method:
-
plasma/flame
-
Cutting size:
-
1500*3000mm
-
lifting travel:
-
≤100mm
-
Height control:
-
Automatic THC/Capacitive THC
-
Max idle speed Cutting speed:
-
18000mm/min 0-15000 mm/min(according to the thickness of material)
-
Running accuracy:
-
plasma≤0.005mm/ flame≤0.1mm
-
Cutting thickness:
-
Plasma< 20mm / flame Cutting<150 mm
-
Flame cutting gas:
-
Oxygen + ethyne
-
Certification:
-
CE

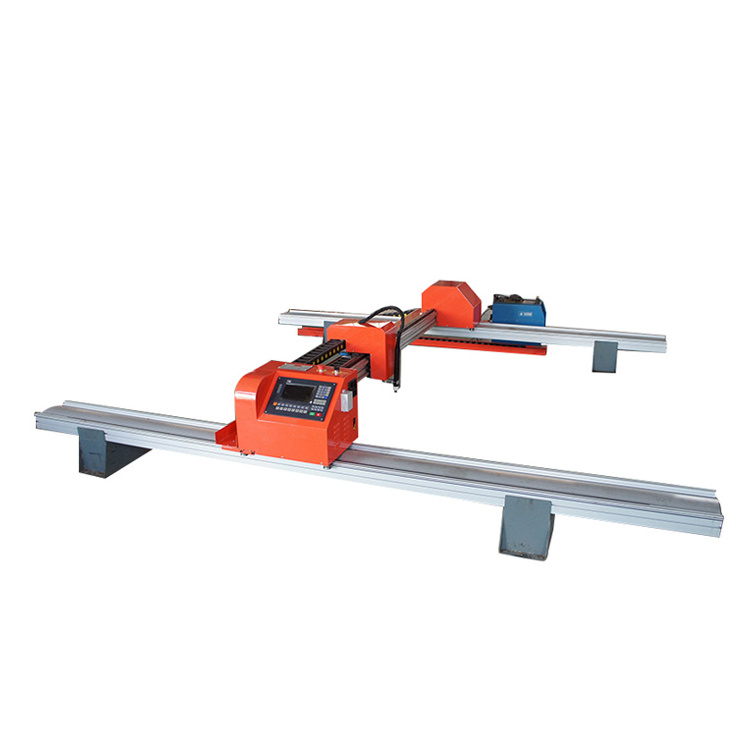

Small Steel Cutting Machine :
Features :
1. Adopt newest aviation aluminum meticulously processing, full of The Times flavor, beautiful and liberal, delicate and durable. New transmission structure, precision rack and special reducer, ensure the accuracy of the transmission, Y axis double motor drive, provide large torque drivers. Control cables is import block flame retardant wear-resistant materials refined.
2. The drive system adopts American chip control, high precision motor, ac power, large torque, ensure smoothly under the high speed.
3. CNC system adopts 7 "numerical control system, transformation in both Chinese and English. High accuracy arc pressure type automatically height control.
4. Optional models: 1530\1540\1560\2030\2040\2060\2040\20120\3060.
Parameter :
|
Model |
FX-LML 1530 HD |
|
Cutting method |
plasma/flame |
|
Cutting size |
1500 * 3 000mm |
|
lifting travel |
≤100mm |
|
Height control |
Automatic THC/Capacitive THC |
|
Max idle speed Cutting speed |
18000mm/min 0-15000 mm/min(according to the thickness of material) |
|
Running accuracy |
plasma≤0.005mm/ flame≤0.1mm |
|
Cutting thickness |
Plasm a < 20mm / flame Cutting < 150 mm |
|
Plasma cutting gas |
air |
|
Flame cutting gas |
Oxygen + ethyne |
|
Gas pressure |
0.4-0.5Mpa for normal plasma power |
|
Power |
220V/380V 50HZ(we suggest 63A,100A,120A,160A,200A etc) |
|
No. of cutting torch and nozzle |
One set of plasma cutting torch, One set of flame cutting torch,10pcs nozzle |
|
Nesting software |
Starcam(Optional:Fastcam)) |
Cutting Effective :
CE Certification :
