Quick Details
-
Model Number:
-
EAS-11972
Quick Details
-
Type:
-
Pulping Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EASTTAI
-
Model Number:
-
EAS-11972

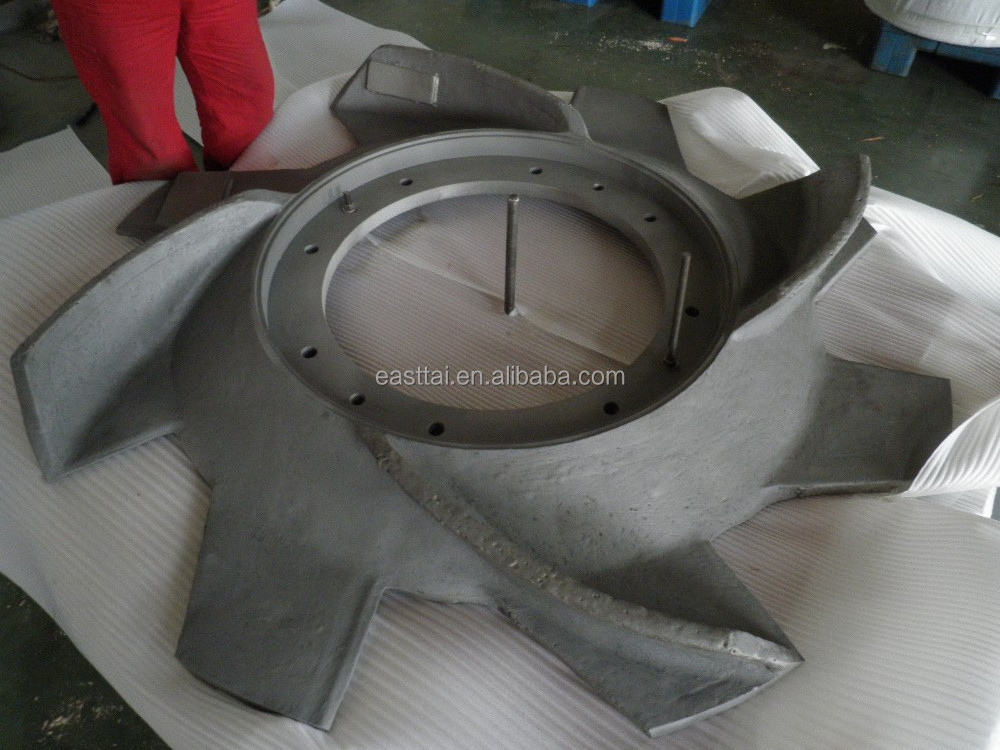

D type hydrapulper sparepart-Impeller OR rotor
Application:
D-type hydrapulper is more suitable for pulping OCC, commercial waste paper continuously or intermittently. It can discharge the heavy impurities from a separately setting box so as to protect the equipment from damaging by heavy impurities. Also, it can discharge plastic pieces.
Design features:
New vaux rotor can strengthen hydraulic action and disintegrate fiber more effectively. D-shaped vat, changed the way of turbulence generated in the conventional pulper and intensified the turbulence. So the paper bale is quickly soaked into the liquid, the moving path of the waste paper is improved and the capacity of the pulper is increased. It can shorten the pulping time, reduce energy consumption and increase the specific capacity per unit of volume.
Size: 15m 3 -100m 3
Capacity: 80-1000t/d
Main technical data:
|
Model |
Capacity (t/d) |
Effective volume (m 3 ) |
Stock consistency (%) |
Motor power (kw) |
|
EST15 |
100-150 |
15 |
3-5 |
165 |
|
EST20 |
150-200 |
20 |
3-5 |
185 |
|
EST25 |
200-250 |
25 |
3-5 |
220 |
|
EST30 |
250-300 |
30 |
3-5 |
280 |
|
EST35 |
300-350 |
35 |
3-5 |
315 |
|
EST40 |
350-400 |
40 |
3-5 |
355 |
|
EST45 |
400-450 |
45 |
3-5 |
400 |
|
EST50 |
450-500 |
50 |
3-5 |
450 |
|
EST60 |
500-550 |
60 |
3-5 |
560 |
|
EST70 |
600-700 |
70 |
3-5 |
630 |
|
EST80 |
700-800 |
80 |
3-5 |
710 |
|
EST90 |
800-900 |
90 |
3-5 |
900 |
|
EST100 |
900-1100 |
100 |
3-5 |
1120 |
The capacity may be different according to different pulp variety and concentration.
So the capacity in the above chart is only used for choosing the model.
We EASTTAI is an oriented enterprise which is specialized in manufacturing and exporting paper machines.
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects. We wish to found long-term cooperation with your company.
