Quick Details
-
Brand Name:
-
Beacon
-
Model Number:
-
BDB-200A
-
Model:
-
dynamic crankshaft balancing machine
-
color:
-
depend on request
-
Max.mass of workpiece(kg):
-
200Kg
-
Max.length of workpiece(mm):
-
2400mm
-
Balancing speed min(r/min):
-
900-3600rpm
-
Min.achievableresidualun balance(g.cm/kg:
-
≤20gcm
-
Unbalance reduction ration(%):
-
≥85%
-
Drive Power:
-
4 kw
-
Speed Mode:
-
Frequency conversion
Quick Details
-
Power:
-
Electronic
-
Usage:
-
Balancing Machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beacon
-
Model Number:
-
BDB-200A
-
Model:
-
dynamic crankshaft balancing machine
-
color:
-
depend on request
-
Max.mass of workpiece(kg):
-
200Kg
-
Max.length of workpiece(mm):
-
2400mm
-
Balancing speed min(r/min):
-
900-3600rpm
-
Min.achievableresidualun balance(g.cm/kg:
-
≤20gcm
-
Unbalance reduction ration(%):
-
≥85%
-
Drive Power:
-
4 kw
-
Speed Mode:
-
Frequency conversion

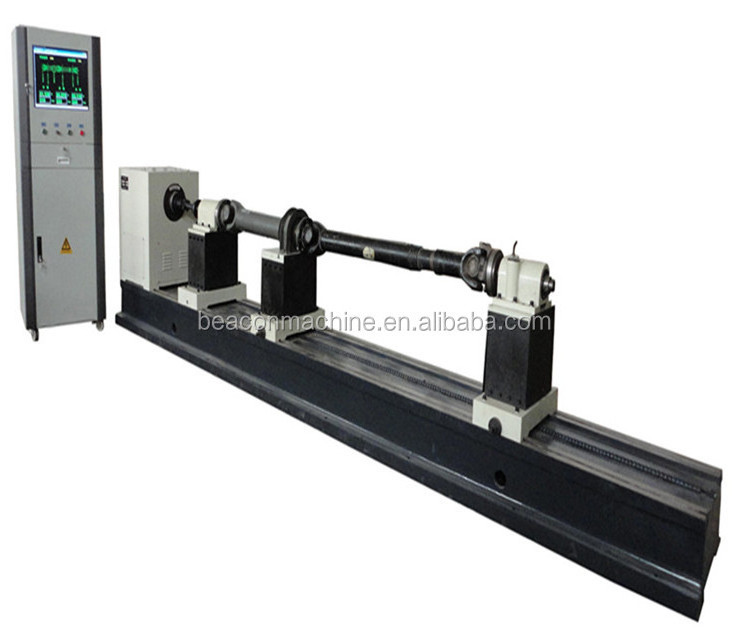

shaft balancer BDB-200A cardan shaft dynamic crankshaft balancing machine
BDB series drive shaft balancing machine(soft bearing)
This series balancing machine is an ideal euipment for a car to balance and check the drive shaft.
Just replace the installation of the workpiece fixture,
you can make a variety of automotive drive shaft of the balancing correction,
Dual-speed motor (inverter) drive, handle fast-brake brakes, double-sided balance,
swing frame adopts semi-hard supporting structure,
measurement systems use RYW-2001 balance measurement software,
with industrial control computer and control cabinet. System testing of high precision,
reliable, easy maintenance, more advanced than other test systems.
Adopt automatic tracking filter circuit and system computer that manufactured by abroad
advanced integrated circuits to maximize the degree of integration of the electrical appliances,
modular design and high-integrated circuit is a distinctive feature of the aircraft.
Software interface designs friendly, you can store more than 100 rotor parameters,
measurement is simple, you can only enter the type of numbers of the rotor than can enter into the measurement procedure,
the screen displays the size of the unbalance and phase angle and real-time speed, rotor number,
character prompt steps, real-time status display signal processing / de-emphasis status etc
|
MODEL |
BDB-50 |
BDB-100(A) |
BDB-200A |
|
Max.mass of workpiece(kg) |
50 kg |
100 kg |
200Kg |
|
Max.length of workpiece(mm) |
1500 mm |
2000 cm |
2400mm |
|
Balancing speed min(r/min) |
1200-3600rpm |
900-3600rpm |
900-3600rpm |
|
Min.achievableresidualun balance(g.cm/kg) |
≤5gcm/kg |
≤8gcm/kg |
≤20gcm |
|
Unbalance reduction ration(%) |
≥85% |
≥85% |
≥85% |
|
Drive Power |
2/2.4 kw |
2/2.4(A: 2.2) |
4 kw |
|
Speed Mode |
Dual-speed Motor |
Dual-speed Motor(A-Frequency Control) |
Frequency conversion |
Range of Application
This balancing machine mainly is used in the production and repair of all kinds drive shaft factories.With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost .it is an ideal device for shaft manufacturers and maintenance factories.
