Quick Details
-
Lift Speed:
-
3.5m/min, 7m/min, 8m/min
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
800 kg
-
Capacity:
-
0.5~32t
-
Type:
-
Electric
-
Voltage:
-
380v, 50hz or customized
-
Speed:
-
Single speed, double Speed
-
Working temperature:
-
-20~+40℃
-
Working class:
-
M3, M4
-
Lifting height:
-
6~30m
-
Control Method:
-
Handle&remote control
-
Color:
-
Customized
-
Application:
-
Factory, construction, paper mill, shipyard etc.
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Lift Speed:
-
3.5m/min, 7m/min, 8m/min
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
800 kg
-
Capacity:
-
0.5~32t
-
Type:
-
Electric
-
Voltage:
-
380v, 50hz or customized
-
Speed:
-
Single speed, double Speed
-
Working temperature:
-
-20~+40℃
-
Working class:
-
M3, M4
-
Lifting height:
-
6~30m
-
Control Method:
-
Handle&remote control
-
Color:
-
Customized
-
Application:
-
Factory, construction, paper mill, shipyard etc.
CE ISO Certificated 16T A3 Wire Rope Electric Hoist
10T A4 Hoist For Overhead Crane Gantry Crane

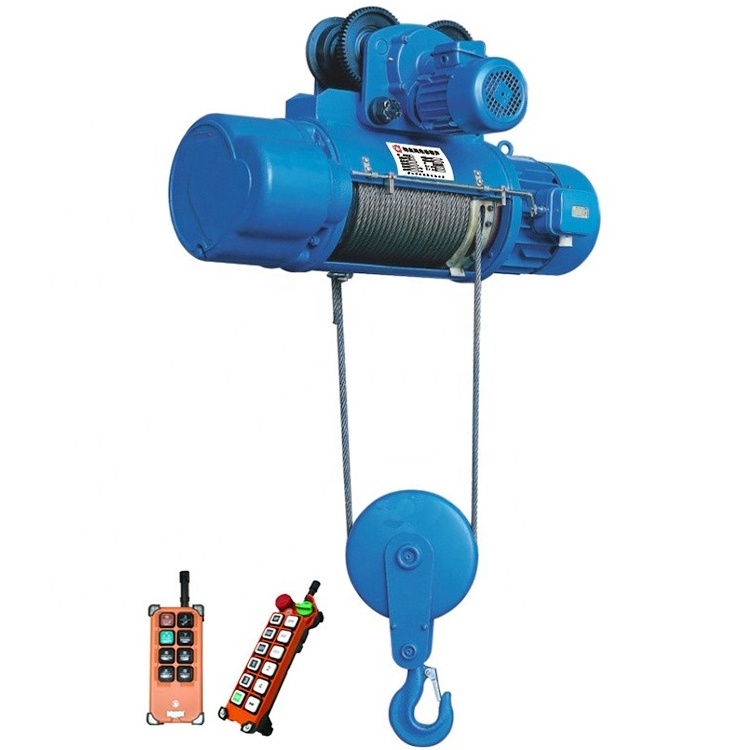

Wireless remote control electric hoist model CD MD wire rope electric hoist are small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It has only one normal speed, which can satisfy normal application.
1.
Design
: International advanced tide compact and nice.
2.
Reduce
: High strength hard gear surface, inclined gear driving with low noise.
3.
Motor
: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
4.
Wire Rope
: The tensile strength is 1760N/mm
2
.
5.
Limit Switch
: Cam limit model operate safety.
Contact us for more information
DETAILS:
Please click here for details communication
CD MD Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured accord demand.
MOTORS: We offer hoist & crane duty Vz hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.
ROPE DRUM: The rope drum is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.
ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is designed to ensure proper tensioning of the rope.
GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.
CONSTRUCTION: brake, motors, gear box & control panel are independent units and accessible easily. The complete hoist can be easily maintained by keeping it in its installed position, thus saving precious labor as well as down time and maintenance time.
TECHNICAL PARAMETER :
Please contact me for customized parameters
|
Model |
CD 1 |
||||||||||||
|
Capacity |
Tons |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
20 |
|||
|
Hoisting height |
m |
3,6,9 |
6,9,12,18,24,30 |
9,12,18,24,30 |
9,12,18 |
||||||||
|
Hoisting speed |
m/min |
8 |
7 |
3.5 |
4 |
||||||||
|
Travel speed |
m/min |
20 |
20/30 |
20 |
|||||||||
|
Wire rope |
Dia.(mm) |
3.6 |
4.8 |
7.7 |
11 |
13 |
15 |
17.5 |
19.5 |
||||
|
Spec. |
6 x19 |
6x37+FC |
|||||||||||
|
Hoisting motor |
Type |
Type |
ZD112-4 |
ZD121-4 |
ZD122-4 |
ZD131-4 |
ZD132-4 |
ZD141-4 |
ZD151-4 |
ZD152-4 |
|||
|
Power |
Power(kW) |
0.4 |
0.8 |
1.5 |
3 |
4.5 |
7.5 |
13 |
18.5 |
||||
|
Rotation speed |
Rotation speed(r/min) |
1380 |
|||||||||||
|
Current |
(A) |
1.25 |
2.4 |
4.3 |
7.6 |
11 |
18 |
30 |
41.7 |
||||
|
Travel motor |
Type |
Type |
ZDY110-4 |
ZDY111-4 |
ZDY112-4 |
ZDY121-4 |
|||||||
|
Power |
Power(kW) |
0.06 |
0.2 |
0.4 |
0.8 |
0.8x2 |
|||||||
|
Rotation speed |
Rotation speed(r/min) |
1400 |
1380 |
||||||||||
|
Current |
Current(A) |
0.3 |
0.72 |
1.25 |
2.4 |
4.3 |
|||||||
|
Power |
3PAC 380V 50HZ |
||||||||||||
