Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Stepmores
-
Voltage:
-
AC220V
-
Dimension(L*W*H):
-
820x710x720mm
-
Weight (KG):
-
210
-
Machine type:
-
4040 cnc router
-
Machine structure:
-
Cast iron
-
Working table size:
-
400*400 mm
-
Spindle:
-
2.2kw water cooling spindle
-
Drive motor:
-
Stepper driver motor
-
Control system:
-
DSP or Mach3
-
Working table type:
-
Cast iron T-slot table
-
Guide rail:
-
Square linear rails
-
Transmission:
-
TBI ball screw
-
Customization:
-
Supported
Quick Details
-
Working Table Size(mm):
-
400×400
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Stepmores
-
Voltage:
-
AC220V
-
Dimension(L*W*H):
-
820x710x720mm
-
Weight (KG):
-
210
-
Machine type:
-
4040 cnc router
-
Machine structure:
-
Cast iron
-
Working table size:
-
400*400 mm
-
Spindle:
-
2.2kw water cooling spindle
-
Drive motor:
-
Stepper driver motor
-
Control system:
-
DSP or Mach3
-
Working table type:
-
Cast iron T-slot table
-
Guide rail:
-
Square linear rails
-
Transmission:
-
TBI ball screw
-
Customization:
-
Supported
Product Description

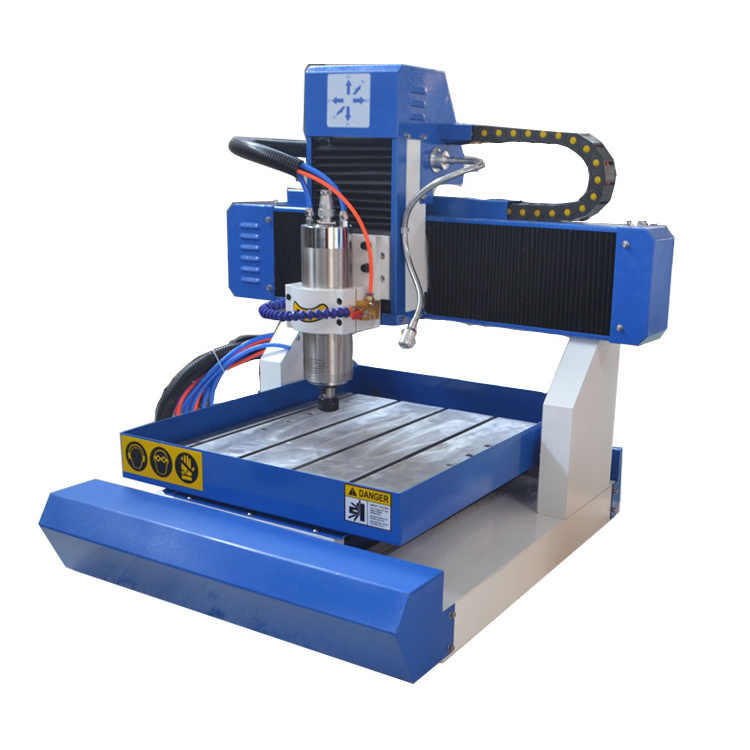

Router cnc 2.2kw spindle Mach3 or DSP controller metal aluminum milling machine 4040 cnc router
Main features of 4040 cnc router
1. Whole cast iron structure, guarantees the machine working performance and long use.
2. X Y Z axis use Taiwan square linear guide rails, high rigidity, vibration and shock resistance.
3. TBI ball screw, re-positioning accuracy 0.01mm.
4. Mach3 controller, well known CNC controller based on PC windows system. USB port can be used by laptop.
Technical Parameters
|
Machine model
|
4040 mini cnc router machine
|
|
Machine structure
|
Cast iron structure, table move on Y axis
|
|
Working area
|
400x400mm
|
|
Feeding height
|
150mm
|
|
Spindle
|
2.2kW water cooling spindle, 24000rpm
|
|
Control system
|
Mach3 (usb port)
|
|
Drive motor
|
Stepper motor
|
|
X Y Z axis guide rail
|
Square linear rails
|
|
X Y Z axis transmission
|
Ball screw
|
|
Coolant system
|
Including water sink and pump to cool down tool bits and working materials
|
|
Working voltage
|
AC220V±10% / 50~60Hz
|
|
Working precision
|
0.05mm
|
|
Repeatability precision
|
0.01mm
|
|
Command code
|
HPGL, G code
|
|
Compatible software
|
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
|
Product Details
Samples :what can we do ?
Procession of Production
Service&Feedback
Technical support online
Technical training at customer's factory
Router cnc 2.2kw spindle DSP controller metal aluminum milling machine 4040 cnc router
Feedback from customers
Stepmores Service
1. Recommend suitable machine according to your working and demands
2. Update the order status during production
3. 12 months warranty for core parts / whole machine
4. English manual and operation videos
5. Technical support by email, phone, WhatsApp / Skype, etc.
6. Engineer available to provide service overseas.
2. Update the order status during production
3. 12 months warranty for core parts / whole machine
4. English manual and operation videos
5. Technical support by email, phone, WhatsApp / Skype, etc.
6. Engineer available to provide service overseas.
