Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Paixie
-
Dimension(L*W*H):
-
1000*700*500mm
-
Weight:
-
60 KG
-
Product name:
-
Wrap-round labeling machine
-
After-sales Service Provided:
-
Online Video Technical Support
-
Labeling speed:
-
40-120pcs/min
-
Keyword:
-
Labeling
-
Labeling type:
-
Wrap round
-
Bottle type:
-
Plastic /glass/Pet
-
Label material:
-
Sticker/paper
-
label size:
-
L:15mm~200mm W(H):15mm~130mm
-
Bottle size:
-
Diameter : 15-300mm
-
Drive mode:
-
Servo system
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 500BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Plastic, Paper, Glass
-
Filling Material:
-
Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Paixie
-
Dimension(L*W*H):
-
1000*700*500mm
-
Weight:
-
60 KG
-
Product name:
-
Wrap-round labeling machine
-
After-sales Service Provided:
-
Online Video Technical Support
-
Labeling speed:
-
40-120pcs/min
-
Keyword:
-
Labeling
-
Labeling type:
-
Wrap round
-
Bottle type:
-
Plastic /glass/Pet
-
Label material:
-
Sticker/paper
-
label size:
-
L:15mm~200mm W(H):15mm~130mm
-
Bottle size:
-
Diameter : 15-300mm
-
Drive mode:
-
Servo system
• Suitable for gallon containers
• More container shapes
• Taller and wider containers
• 360 degree touch screen
• Self teaching sensors
• Enclosed slide out controls
• Over 13% more energy efficient
• Range of label size 6 - 170mm (1/4 - 6.7”) (H) 6 - 300mm (1/4 - 11.8”) (W)
• Range of container width 6.5mm - 165mm (0.26” - 6.5”)
• Range of container height 6.5 - 305mm (0.26 - 12”)
• Conveyor width 152mm (6.5”)
• Power source 110/220 v 50/60 Hz 1 PH
• Power consumption 0.660 kW
• Label dispensing speed 40m/min (131.2’/min)
• Conveyor speed 22m/min (72.2’/min)
• Label spool diameter 356mm (14”)
• Label spool inner core 76mm (3”)
• Drive motor Stepper
• PLC Panasonic
• Dimensions (L-W-H) 2,420 x 1,380 x 1,350mm 95.3” x 54.3” x 53.1”
The unscrambler which made of SS304 is used to arrange and input bottles for label application , operator only put bottles on table .Drived by gear motor , positive and negative rotation
1.Servo driving system
Servo is always running better than normal , PX-BL120 label drived by servo motor ,make the label to be released more fluently ,without broken or cutting circumstance happening
2.Labeling belt
Wrap round label aplicator ,Positive &negative we use as we use the sponge sponge as compressive belt, sponge has very strong contractility, which means that the label will be tightly squeezed without damage, the same applies to wide bottle caps, small diameter bottle samples, each tag can be perfectly applied the bottle and there will be no crease for extrusion, sponge has very strong contractibility, This means labels are tightly squeezed without breaking. This also applies to samples with wide caps and small bottle diameters, where each label fits perfectly without wrinkling
3.Height -width-Angle adjustment
Any labeling machines are all suitable for different formats ,which means sone kind of adjustments are necessary ,height ,angle , width , these 3 aspects decide how to put label in right way .
4.Printing engine
We set
thermal printer with the labeler itself , to coding number , production date with the label
|
FEATURES
|
BENEFITS
|
|
|
Flexible label head tilts on x-y axis
|
Great for round, tapered or shaped containers
|
|
|
Manual Adjustments
|
|
|
|
Adjustable applicator height
|
Suitable for a wide variety of containers and labels
|
|
|
Adjustable conveyor height
|
Easy to adapt to any existing packaging line
|
|
|
Manual position setting
|
Easy to use adjustments ensure labels are placed
accurately on the container |
|
|
Touch Screen Controls
|
|
|
|
5.5” color LCD touch screen controls
|
Easier operation of controls
|
|
|
Touch screen rotates 360 degrees
|
Allows the machine to be controlled from any position
|
|
|
Stores up to 30 product settings
|
Faster and more accurate setup
|
|
|
Built-in operating instructions
|
Enables quick setup and easy changeover
|
|
|
Easy to follow fault instructions
|
Enables operator to quickly identify and fix problems
|
|
|
Screensaver
|
Reduces the risk of screen burn
|
|
|
Data storage for maintenance and usage
|
Simplifies scheduling of maintenance activities
|
|
|
Built-in printer controls
|
Allows for ‘plug & play’ future printer upgrades
|
|
|
FEATURES
|
BENEFITS
|
|
|
Sensor Features
|
|
|
|
Production pre-set - stop function
|
Automatically stops once the pre-set quantity has been met
|
|
|
Missing label auto stop system
|
Ensures all products are labeled
|
|
|
Label countdown
|
Allows operator to monitor run progress
|
|
|
Batch counter
|
Easy to keep track of batches
|
|
|
Label counter
|
Simplifies regulatory tracking of labels
|
|
|
Container/production run counter
|
Provides total production quantity
|
|
|
Label position set
|
Ensures labels are placed correctly on product
|
|
|
One touch label sensor
|
Allows operator to use “one touch” feature on sensor to “teach” the sensor the label characteristics
|
|
|
Auto label sensor set
|
Detects labels and setup machine automatically from touch screen
|
|
|
Auto label length set
|
Detect label lengths and setsup machine automatically from touch screen
|
|
|
Design and Construction
|
|
|
|
Adjustable to 8 speeds
|
Easily adjusts to line speeds
|
|
|
Battery free microprocessor
|
Maintains default settings and memory even after sitting idle for long periods
|
|
|
Slide-out controls and electronics stored in lower cabinet
|
Enables quick and easy servicing
|
|
|
Manufactured with stainless steel and anodized aluminum
|
Robust, long lasting construction with quick and easy cleanup
|
|
|
Manufactured to strict ISO 9001 standards
|
High quality, consistent manufacturing ensures easy repairs and/or upgrades
|
|
|
GMP compliant
|
Designed to easily surpass standards of compliance auditors
|
|
|
Fully synchronized controls
|
Ensures all components run at the proper speed
|
|
|
Stepper driven motor
|
Fine adjustment allows precise label placement
|
|
Shanghai Paixie Packing Machinery Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, chemical industry and etc, lots of successful cases for your reference.

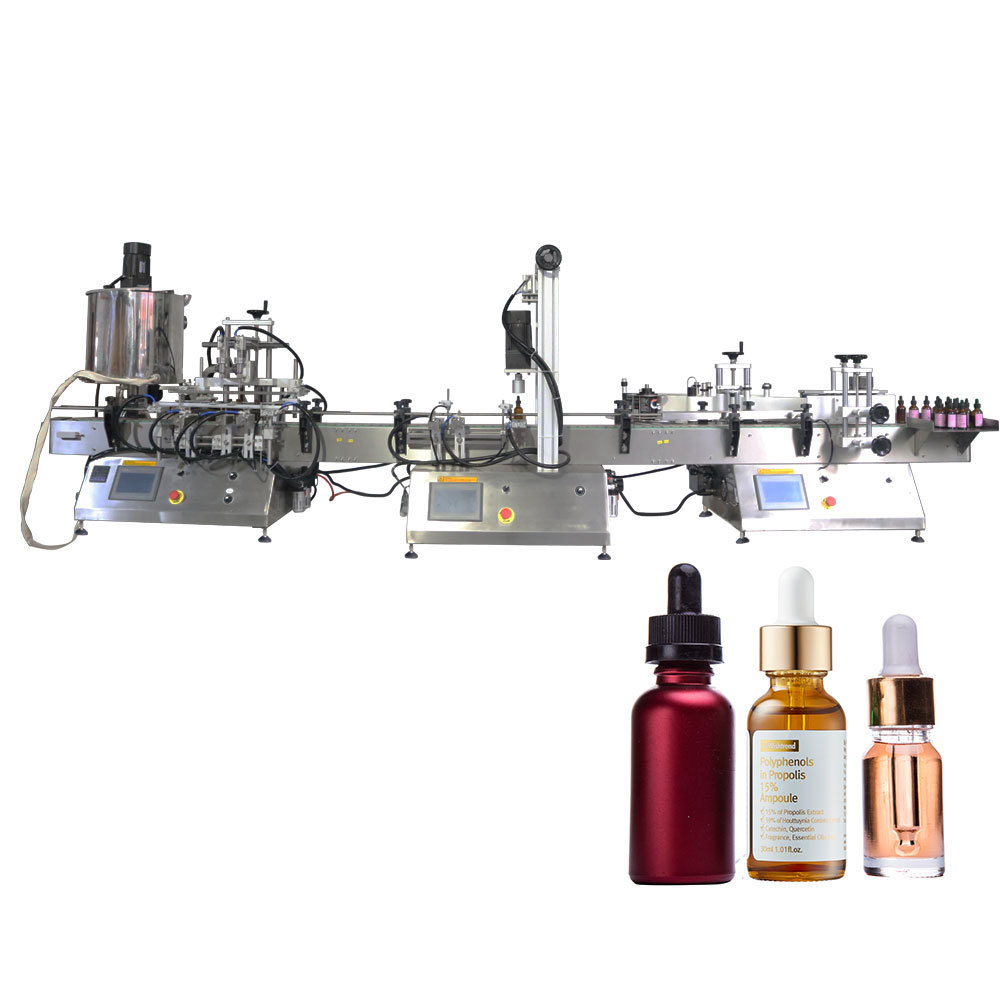

The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement.
PAIXIE filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
