Quick Details
-
Brand Name:
-
YATIAN
-
Model Number:
-
GMDJ04
-
Color::
-
Red,black,white,orange, green
-
Package:
-
steel frame body with plywood
-
Battery:
-
6*8V maintenance free deep cycle
-
Power system:
-
5KW/48V AC
-
Motor Type:
-
AC Motor 5kW
-
Climbing Ability:
-
30%
-
Charger:
-
on board
-
Drive:
-
RDW shaft drive
Quick Details
-
Tire Size:
-
13 inch
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YATIAN
-
Model Number:
-
GMDJ04
-
Color::
-
Red,black,white,orange, green
-
Package:
-
steel frame body with plywood
-
Battery:
-
6*8V maintenance free deep cycle
-
Power system:
-
5KW/48V AC
-
Motor Type:
-
AC Motor 5kW
-
Climbing Ability:
-
30%
-
Charger:
-
on board
-
Drive:
-
RDW shaft drive

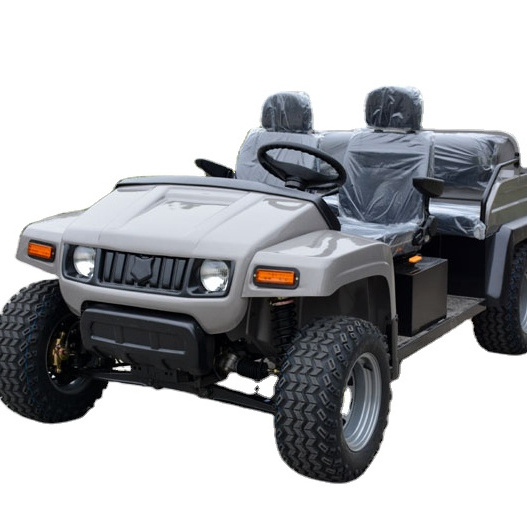

Off road electric utility vehicle UTV
Product Description
| Performance: | |
| Max.Speed | 30 km/h |
| Endurance mileage | 100 km |
| Climbing Ability(loaded) | 30% |
| Braking Distance | ≤5m |
| Min.Turning Radius | 3.7 m |
| Min. Ground Clearance | 170 mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 2930×1550×2050mm |
| F/R Tread | 1220/1120mm |
| Axle Distance | 2000 mm |
| Curb Weight | 730 kg |
| Max. loading | 500 kg |
| Standard Configurations | |||
| Motor | 5KW high-efficient AC motor | ||
| Controller | 48V, ENPOWER | ||
| Battery | Free maintenance long lasting battery 48V/ 6V(180Ah)×8pcs | ||
| Body & Roof | steel metal, hard to break, and easy to fix like a car | ||
| Windshield | Foldable & high-strength organic glass | ||
| Seats | 4 | ||
| Bumper | Front bumper | ||
| Tire | Front/rear: 185/70-R13 off road tire | ||
| Chassis | Frame and high-strength steel structure, rust protection with spray zinc and coated paint | ||
| Steering | Single reduction rack and pinion,Console easy for driving and freedom movement | ||
| Front Suspension | Non-independent suspension, leaf spring and barrel type hydraulic shock absorber | ||
| Rear suspension | Non-independent suspension, leaf spring and barrel type hydraulic shock absorber | ||
| Lighting system | 2 big headlights, 2 front turn signals, 2 rear lights with turn signals and brake | ||
| Sound system | Horn, back-up buzze | ||
| Brake system | Front:hydraulic disc, hydraulic drum brake, park brake; | ||
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 110V or 220V/50HZ | ||
| Dashboard | electricity meter, Headlight switch, turn signal switch,key switch, hour meter | ||
| Color Option | orange, green, white, red or customized colors | ||
