Quick Details
-
Brand Name:
-
LONGROAD
-
Model Number:
-
LRQ5-100-2P
-
Rated Current:
-
10A,16A,20A,25A,32A,40A,50A,63A,80A
-
Conformity with standards:
-
IEC60947-6-1
-
Number of poles:
-
2P, 3P, 4P
-
Rated Current(In):(A):
-
10, 16, 20, 25, 32, 40, 50, 63,80
-
Rated Voltage(Ue):(V):
-
(220V/230V/240V)~(1P),380/400/415V~(2P;3P;4P)
-
Operational voltage of control circuit:
-
AC220V/230V/240V
-
Rated frequency:
-
50Hz
-
Rated Insulation voltage Ui:(V):
-
415V
-
Rated impulse withstand voltage Uimp:(V):
-
4000V
-
Method of mounting::
-
On Din rail
Quick Details
-
Type:
-
PC grade
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LONGROAD
-
Model Number:
-
LRQ5-100-2P
-
Rated Current:
-
10A,16A,20A,25A,32A,40A,50A,63A,80A
-
Conformity with standards:
-
IEC60947-6-1
-
Number of poles:
-
2P, 3P, 4P
-
Rated Current(In):(A):
-
10, 16, 20, 25, 32, 40, 50, 63,80
-
Rated Voltage(Ue):(V):
-
(220V/230V/240V)~(1P),380/400/415V~(2P;3P;4P)
-
Operational voltage of control circuit:
-
AC220V/230V/240V
-
Rated frequency:
-
50Hz
-
Rated Insulation voltage Ui:(V):
-
415V
-
Rated impulse withstand voltage Uimp:(V):
-
4000V
-
Method of mounting::
-
On Din rail

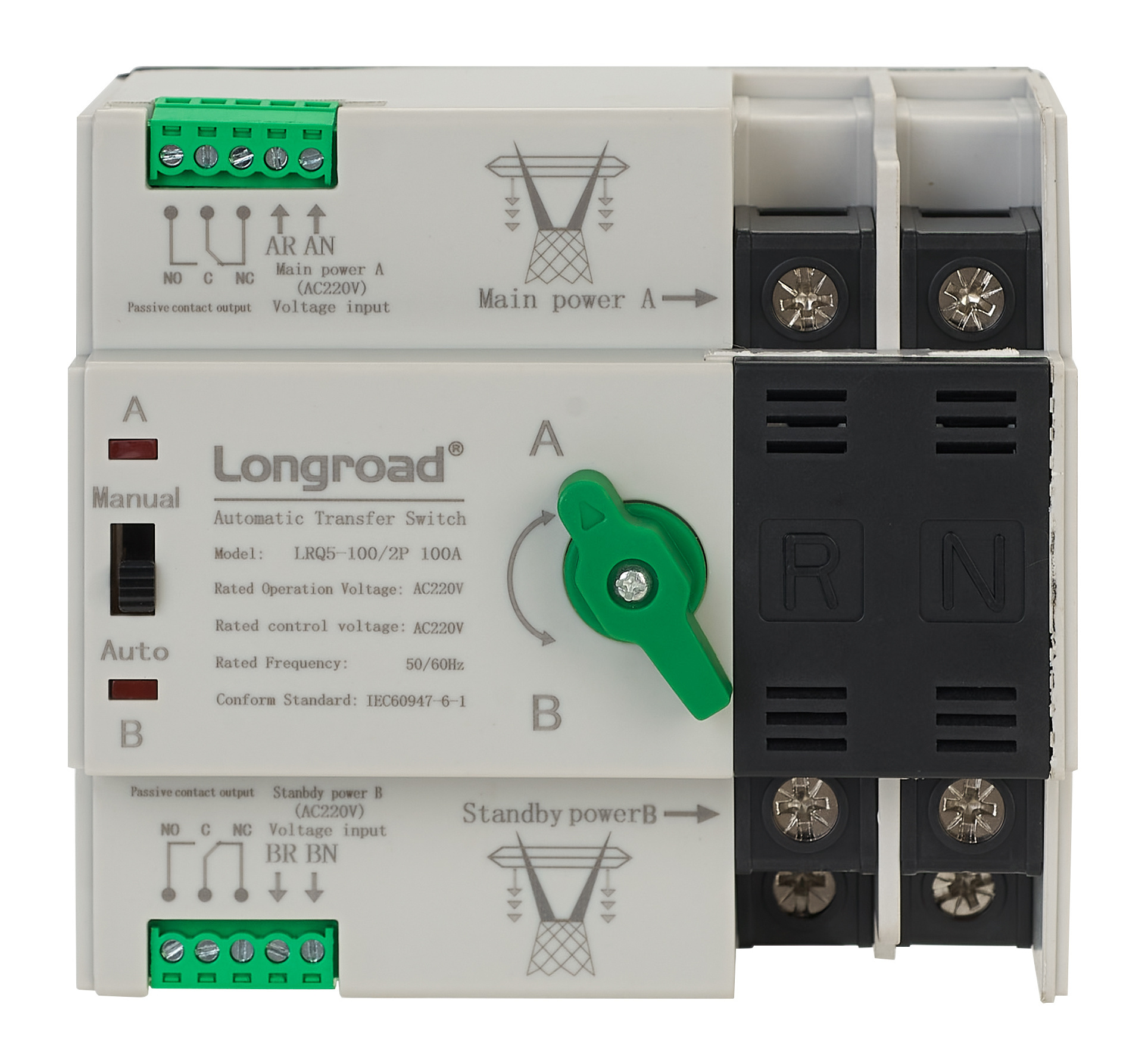

Model LRQ5-100 PC Grade Miniature Dual Power ATS
1.Product Application:
This series of automatic transfer switch which mainly detects whether the voltage of
main power supply and standby power supply is normal when the common power supply is abnormal , the standby power supply will automatically start to work,so as to ensure the continuous reliability power supply. This product is a standard 35mm Din rail installation design which is specially used for all kinds of small distribution boxes
This product is mainly composed of conversion actuator and controller.It is suitable for AC Power supply system with AC220v /380v/ 50Hz and current up to 80A. It is widely used in various occasions where power failure cannot be sustained . This product can be perated automatically and manually product category: Pc grade , conforming to standard:IEC60947-6-1
2.Functional features
2.1Electrical and mechanical double interlocking ,
2.2 Safe and reliable with power indicator.
2.3 Self-investment and self-recovery, common use priority.
2.4.Two in and one out , fast and convenient wiring.
2.5.low light and mini size space saving,suitable for all kinds Of distribution box
2.6 Conversion speed , the switching speed is less than 20ms
3.Technical Data
|
Conformity with standards
|
IEC60947-6-1
|
|
|
|
|||
|
Number of poles
|
2P, 3P, 4P
|
|
|
|
|||
|
Rated Current(In):(A)
|
10, 16, 20, 25, 32, 40, 50, 63,80
|
|
|
|
|||
|
Rated Voltage(Ue):(V)
|
(220V/230V/240V)~(1P),380/400/415V~(2P;3P;4P)
|
|
|
|
|||
|
Operational voltage of control circuit
|
AC220V/230V/240V
|
|
|
|
|||
|
Rated frequency
|
50Hz
|
|
|
|
|||
|
Rated Insulation voltage Ui:(V)
|
415V
|
|
|
|
|||
|
Rated impulse withstand voltage Uimp:(V)
|
4000V
|
|
|
|
|||
|
Method of mounting:
|
On Din rail
|
|
|
|
|||
4. ATS Structure
5. Areas of application
It is mainly applied in Solar system,civilian, commercial and industrial building and equipments of service cut-outs to provide ON/OFF circuit,overcurrent and short circuit protection.
FAQ
|
When can I receive your quotation and detail information after send the enquiry?
|
All your enquiry will be replied within 8 hours.
|
|
Can I get samples before place an order ?
|
Of course! We also believe that sample order is the best way to prove the quality.And in our company we offer free sample service!
Please send the enquiry to us and get the free sample!
|
|
Can you print our own logo?
|
Yes,Our company are available for OEM.
|
|
How long is the quality guarantee?
|
2-5 years warranty,our products are 100% inspection.
|
|
How long is the delivery time?
|
It usually takes about 3-5 working days for sample order,and 10-20 days for official order.
|
