Quick Details
-
Place of Origin::
-
HeBei, China
-
Standard Size::
-
20ft 40ft or Custom requirement
-
Wall/Roof Material::
-
Sandwich Panel Or Steel Plate
-
Steel Frame::
-
Light Steel Structure
-
Earthquake Resistanc::
-
Grade 8
-
Window::
-
Aluminum Window
-
Brand Name::
-
sdw
-
Product Type::
-
Container Houses
-
Bathroom::
-
Custom Requirement
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SDW
-
Warranty::
-
1 Year
-
Place of Origin::
-
HeBei, China
-
Standard Size::
-
20ft 40ft or Custom requirement
-
Wall/Roof Material::
-
Sandwich Panel Or Steel Plate
-
Steel Frame::
-
Light Steel Structure
-
Earthquake Resistanc::
-
Grade 8
-
Window::
-
Aluminum Window
-
Brand Name::
-
sdw
-
Product Type::
-
Container Houses
-
Bathroom::
-
Custom Requirement

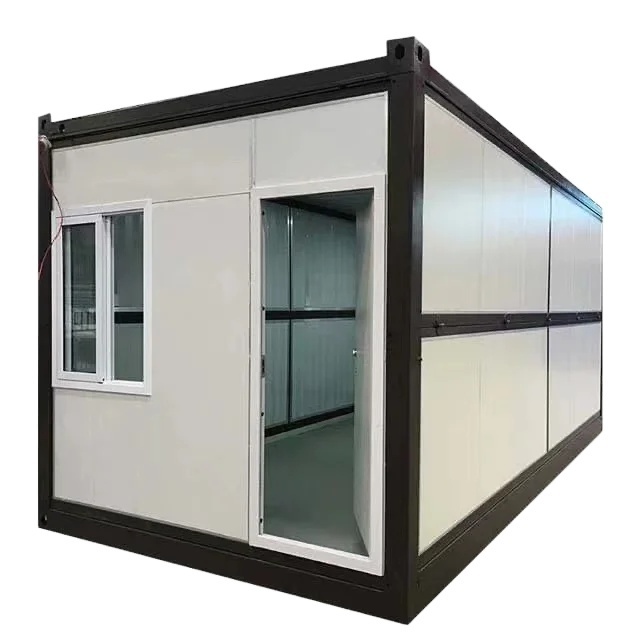

china prefabricated houses with bathroom kitchen prefab mobile house foldable office kitchen container
Products Description
Product Paramenters
|
Product specifications
|
External dimension (mm)
|
5800 L * 2500 W * 2380 H MM
|
|
|
Folding state (mm)
|
5800 *2480 *570
|
|
|
Total mass (kg)
|
1000~1300 Including doors and Windows and simple indoor electrical switch socket [1*40HQ It holds 8 sets]
|
|
|
Top frame
|
Top main beam: Rectangular square tube60×80×1.3mm
|
|
|
|
Top bearing bottom: Rectangular square tube40×40×1.3mm
|
|
|
|
Internal ceiling: Color steel veneerV930*0.25㎜
|
|
|
|
Insulating glass wool: Glass wool roll 50mm (unit weight 16kg)
|
|
|
|
External roof panel: Galvanized sheet0.5mm
|
|
|
|
Protective coating for integral frame: Electrostatic spray/high gloss
|
|
|
|
Hanging head: 155*110*（6mm)
|
|
|
Bottom frame
|
Bottom main beam: Rectangular square tube 60×140×1.3mm
|
|
|
|
Bottom bearing: Rectangular square tube 40×40×1.3mm
|
|
|
|
Front and rear main beams: Rectangular square tube60×80×1.3mm
|
|
|
Stand column |
Side wall frame: Rectangular square tube40×60×1.3mm
|
|
|
|
Galvanized buckle groove: 50mm
|
|
|
|
Fold hinge: Galvanized hinge 13mm
|
|
Floor
|
Floor board
|
Fireproof glass magnesium floor18mm
|
|
Door
|
High grade steel door
|
High-quality security door（Warm white）970mm*1970mm
|
|
Window
|
The anti-theft window
|
930*1120,Plastic steel anti-theft integrated window、Glass thickness4mm（Warm white） 2PCs
|
|
|
|
Electrical wiring，Install in strict accordance with moisture-proof specifications，All electricalAll electrical products shall
comply with ce certification. Connect the circuit according to the circuit engineering specification，indoor: coil in4²National standard flexible copper wire, 20 Acircuit breaker 1, Socket incoming line 2.5², three-hole single socket 1pc，5-hole single socket 3pcs, 2 lamps. |
|
Wallboard
|
Model
|
50mm Composite plate0.23mm+Basalt rock wool(unit weight50kg）+0.23mm
|
|
|
|
Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, toliet, kitchen, bathroom, shower,
steel roof, cadding panels, decorative material, etc. |
|
|
Roof bearing capacity
|
≧50kg/m²
|
|
|
Aisle bearing capacity
|
≧200kg/m²
|
|
|
Floor load bearing
|
≧150kg/m²
|
|
|
Wall side pressure
|
≧80kg/m²
|
|
|
Wall deformation coefficient
|
≦300kg/m²
|
|
|
Fire protection level
|
Class A
|
|
|
Seismic grade
|
Level 10
|
|
|
Wind resistance rating
|
Level 10
|
Custom module
