Quick Details
-
Filling Accuracy:
-
35 bags/min
-
Voltage:
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGLE
-
Dimension(L*W*H):
-
1050*850*2050MM
-
Weight:
-
320 KG
-
Name:
-
Fully automatic liquid filling machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
packing and sealing
-
Material:
-
Stainless Steel
-
Capacity:
-
1100-1300bags/h
-
Packing Volume:
-
50-550ml
-
Usage:
-
Milk, soy milk, soy sauce, vinegar Beverage packaging
-
Filling material:
-
Flowing Liquid
-
Type:
-
fully automatic, Filling Machine
Quick Details
-
Machinery Capacity:
-
8000BPH, 2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
35 bags/min
-
Voltage:
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGLE
-
Dimension(L*W*H):
-
1050*850*2050MM
-
Weight:
-
320 KG
-
Name:
-
Fully automatic liquid filling machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
packing and sealing
-
Material:
-
Stainless Steel
-
Capacity:
-
1100-1300bags/h
-
Packing Volume:
-
50-550ml
-
Usage:
-
Milk, soy milk, soy sauce, vinegar Beverage packaging
-
Filling material:
-
Flowing Liquid
-
Type:
-
fully automatic, Filling Machine
Product Application

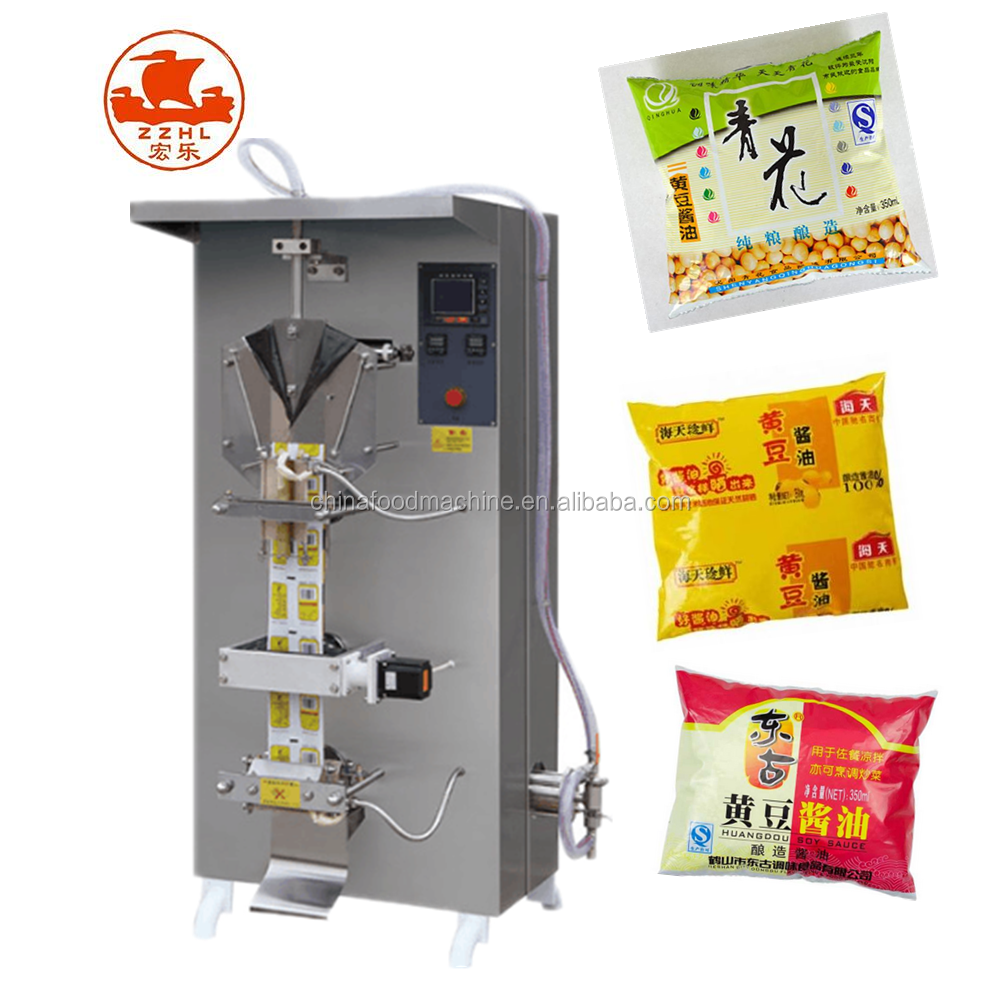

This form fill seal machine is widely used in packaging milk, soy milk, soy sauce, vinegar, rice wine and other variety of liquids.
The entire packaging process: film sterilization, bagging, printing date, filling, sealing, cutting, counting.
The machine is widely used in milk, soy milk, all kinds of drink, soy sauce, vinegar, rice wine, etc. Various kinds of liquid film packaging; Ultraviolet radiation sterilization, materials bag in full bloom, date printing and quantitative filling, sealing cutting off, automatic counting one-time automatically, heat sealing and the temperature automatic control, packing product is
beautiful rocky, shell, piping, disinfector, quantitative pump adopt stainless steel structure, ensure sanitation.
Advantage :
1.Choose the domestic high quality components, to ensure the machine low failure and high stability.
2.Seal products in a variety of forms, the seal, edge sealing, wide edge sealing, etc.
3.Adjusted bag length, do not need replacement parts.
4. Dual heat sealing temperature control, ensure temperature accuracy
5.Automatic in 8 digit print production date.
6.Adopting opto electronic tracking control bag length, can maintain a complete pattern, number of packages using electronic counter.
Parameters:
|
Type
|
HL-SJ1000
|
HL-SJ2000
|
HL-SJ1000II
|
|
bag-making length
|
50-150mm
|
50-250mm
|
50-150mm
|
|
Bag-making width
|
40-150mm
|
40-175mm
|
40-150mm
|
|
Packing film width
|
100-320mm
|
100-380mm
|
100-320mm
|
|
Packing capacity
|
50-550ml
|
200-1000ml
|
50-500ml
|
|
Packing speed
|
2000-2200bags/h
|
1100-1300bags/h
|
2000-2200bags/h
|
|
power
|
1.6 Kw
|
2.5 Kw
|
1.6 Kw
|
|
Overall Dimension
|
880*760*1800mm
|
1050*850*2050mm
|
850*760*1800mm
|
|
Weight
|
275kg
|
380kg
|
275kg
|
|
Bag type
|
Back seal
|
Back seal
|
Double-row bag conjoined packaging
|
|
|
|
|
|
|
Model
|
HL-ZF1000
|
HL-ZF2000
|
HL-SJZF4000
|
|
Bag making length
|
50-150 mm
|
50-250 mm
|
100-400 mm
|
|
Bag making width
|
65-150 mm
|
65-175 mm
|
65-210 mm
|
|
Packing film width
|
150-320 mm
|
150-380 mm
|
150-450 mm
|
|
Packing capacity
|
50-550 ml
|
200-1050 ml
|
500-2000 ml
|
|
Packing speed
|
1100-1300 bags/h
|
1100-1300 bags/h
|
800-1000 bags/h
|
|
Power
|
2.1 Kw
|
2.5 Kw
|
2.5 Kw
|
|
Overall Dimension
|
1050*850*2050 mm
|
1050*850*2050 mm
|
1200*850*2050 mm
|
|
Weight
|
370 Kg
|
380 Kg
|
460 Kg
|
