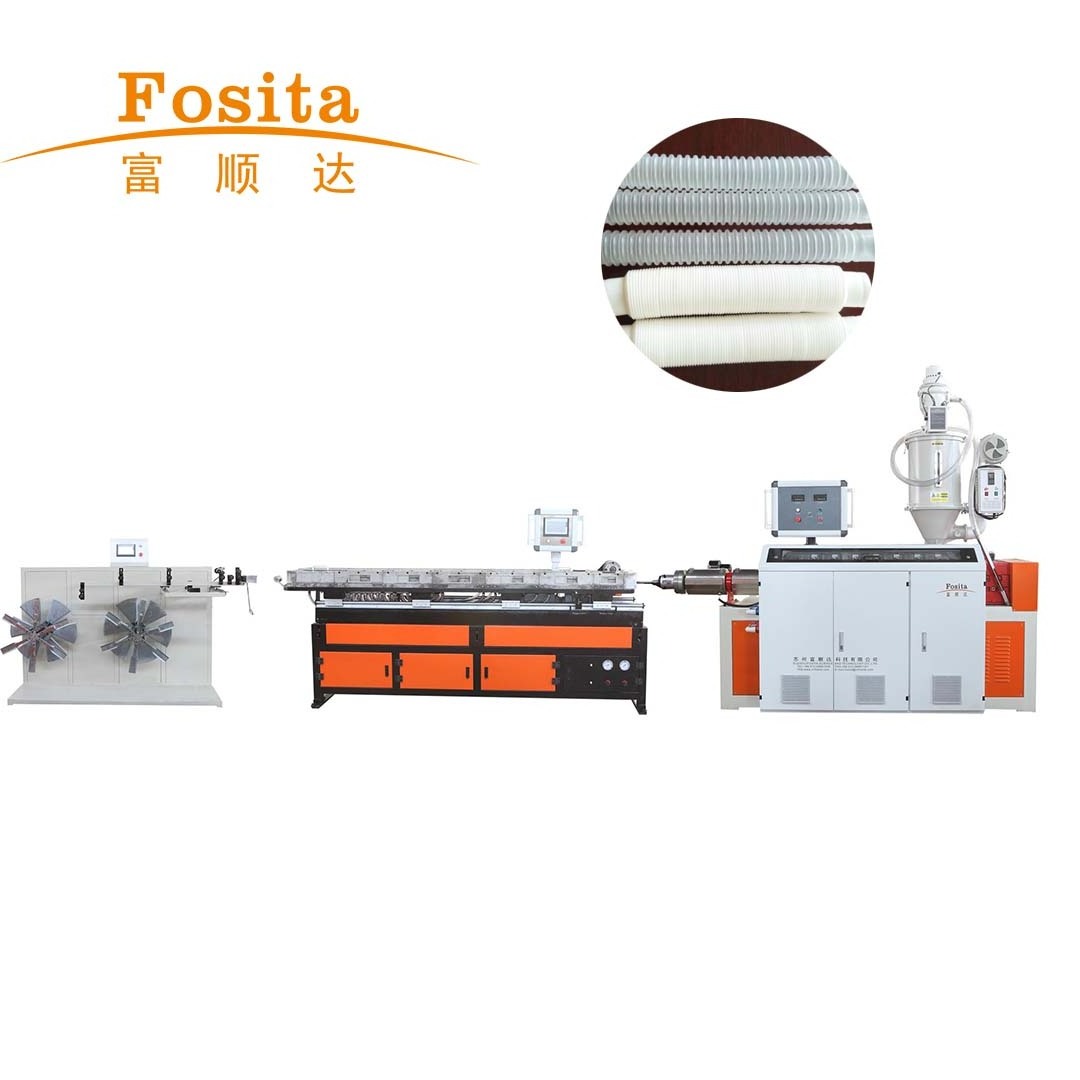

Fosita Automatic Plastic Toilet Flexible 110mm Corrugated Pipe Production Line

Fosita Automatic Plastic Toilet Flexible 110mm Corrugated Pipe Production Line

FOB Reference Price: Get Latest Price

≥1 Sets

US $26000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Screw Speed (rpm):: 1440 rpm

Place of Origin:: Jiangsu, China

Brand Name:: Fosita

Voltage:: 380V 50HZ

Dimension(L*W*H):: BASED

Power (kW):: 37

Weight:: 5 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Raw material:: PE PP PVC

Product Type:: Corrugated Pipe

Die block:: 72

The Fastest Production speed can reach:: 1500m/h

Power(W):: 50kw

Motor:: SEIMENS

Invertor:: ABB brand

Automatic Grade:: Automatic

Quick Details

Screw Design:: Single-screw

Screw L/D Ratio:: 30:1

Screw diameter (mm):: 45 mm

Screw Speed (rpm):: 1440 rpm

Place of Origin:: Jiangsu, China

Brand Name:: Fosita

Voltage:: 380V 50HZ

Dimension(L*W*H):: BASED

Power (kW):: 37

Weight:: 5 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Raw material:: PE PP PVC

Product Type:: Corrugated Pipe

Die block:: 72

The Fastest Production speed can reach:: 1500m/h

Power(W):: 50kw

Motor:: SEIMENS

Invertor:: ABB brand

Automatic Grade:: Automatic

Product Overview

PP PVC PE Corrugated Pipe Production Line

Plastic corrugated pipe is very widely used in our daily life, It can be used such as threading pipe, drain pipe, pipes, Shisha pipe, shrinking pipe and so on.There are many advantages of plastic corrugated pipes: 1.Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper; 2.Corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity; 3. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

Fosita high-speed single-wall corrugated pipe production line has good stability, fast forming speed, long service life, convenient operation and convenient module replacement.

FEATURES AT A GLANCE

1.Gear rack is designed with good performance of corrugator machine.

2.Mold block is durable and wear-resistant, also suitable for medical use.

3. Maximun speed can reach 40m/min by Fosita design.

4.All line is equipped with Siemens PLC.

Extruder

Shaping Machine

Winder

PRODUCT SPECIFICATIONS

Pipe Line Model	Diameter Range(mm)	Extruder Model	Max.Output(kg/h)	Max. Machine Speed(m/min)	Main Motor(KW)
FST-12	12-32	SJ45	50	25	22
FST-50	32-50	SJ65	100	25	45

Details Images

65/33 Single Screw Extruder

Screw diameter: 65mm L/D Ratio: 33:1 Screw&barrel material: 38CrMoAlA Motor: 45kw Barrel heating method:Cast-alumium heating, with stainless steel protection Output:120-180kg/h Temperature Control: Ormon Contactor: Dexili .
