Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hiwinstar
-
Voltage:
-
220/380/customize
-
Dimension(L*W*H):
-
1830*750*1020mm
-
Weight (KG):
-
360 KG
-
Power (kW):
-
3
-
Applicable Industries:
-
furniture workshop
-
name:
-
planer and jointer
-
spindle speed:
-
5600r/min
-
certification:
-
CE.ISO
-
function:
-
Planing Wood Surface Smooth
-
color:
-
Customer Requirment
-
max working width:
-
400mm
-
max working thickness:
-
3mm
-
worktable size:
-
1800*445mm
-
overall dimensions:
-
1830*750*1020mm
-
model no:
-
MB504
Quick Details
-
Max.Planing Depth(mm):
-
3 mm
-
Max.Planing Width(mm):
-
400
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hiwinstar
-
Voltage:
-
220/380/customize
-
Dimension(L*W*H):
-
1830*750*1020mm
-
Weight (KG):
-
360 KG
-
Power (kW):
-
3
-
Applicable Industries:
-
furniture workshop
-
name:
-
planer and jointer
-
spindle speed:
-
5600r/min
-
certification:
-
CE.ISO
-
function:
-
Planing Wood Surface Smooth
-
color:
-
Customer Requirment
-
max working width:
-
400mm
-
max working thickness:
-
3mm
-
worktable size:
-
1800*445mm
-
overall dimensions:
-
1830*750*1020mm
-
model no:
-
MB504

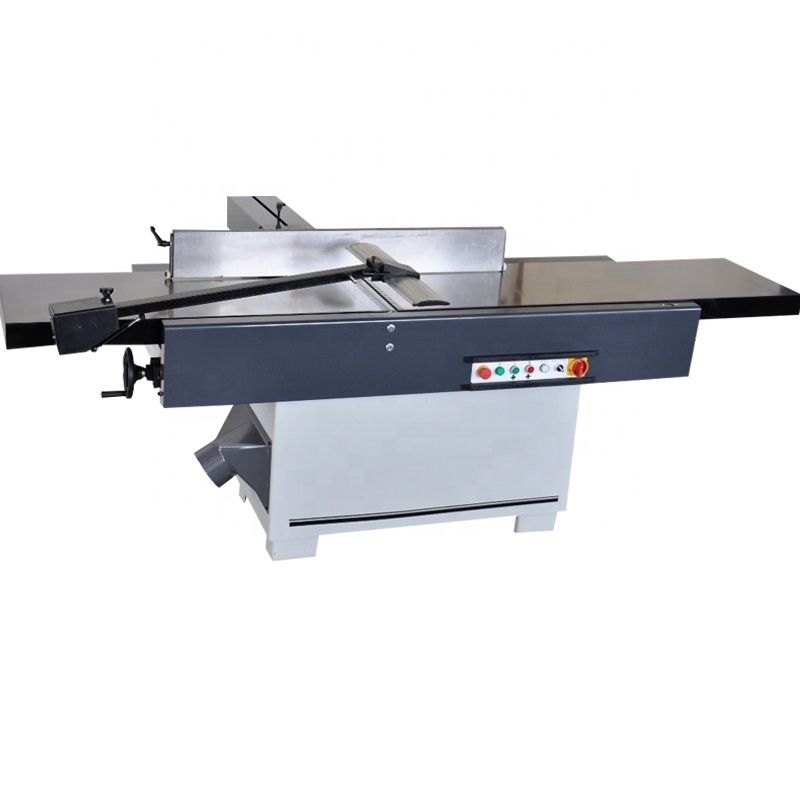

MB504 woodworking heavy duty wood planer and jointer
| model | MB503 | MB504 |
| working table size | 1820*345mm | 1800*445mm |
| oriented fence size | 880*95mm | 880*95mm |
| max working width | 300mm | 400mm |
| max working depth | 3mm | 3mm |
| spindle speed | 5600r/min | 5600r/min |
| total power | 2.2kw | 3kw |
| net weight | 320kg | 360kg |
| overall dimensions | 1870*570*810mm | 1830*750*1020mm |
MB504 Features
1,Machine is equipped with an upgraded version of the motor, the motor cooling effect is good, the power is higher than the ordinary motor.
2,Worktable is made of high-strength operation and has high strength and no deformation.
3,The structure is stable and durable, precision saw card, stable material.
4,Emergency stop button, you can stop the machine immediately in an emergency.
5,The cutting is smooth and smooth, and the cutting surface is smoother.
Detailed Description
Detailed Pictures
Finished Pictures
Application
This product is mainly used as the counterpart material, and the sheet material is processed by the reference plane to obtain higher flatness and straightness.it can be thinned, leveled, and processed on solid wood, aluminum and other materials.
