Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanforce
-
Input Voltage:
-
AC 85-265V 50/60Hz
-
Power:
-
18W
-
Battery:
-
Ni-cd Battery
-
Battery Capacity:
-
12V/3000mAh
-
Charge time:
-
24 Hours
-
Emergency Time:
-
90min
-
Product Name:
-
Constant current led strip with emergency backup battery
-
Packing:
-
Box
-
Type:
-
LED Emergency Light Inverter
-
Voltage:
-
220-310V
Quick Details
-
Battery Type:
-
Ni-CD
-
Material:
-
metal or plastic
-
Usage:
-
emergency lighting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanforce
-
Input Voltage:
-
AC 85-265V 50/60Hz
-
Power:
-
18W
-
Battery:
-
Ni-cd Battery
-
Battery Capacity:
-
12V/3000mAh
-
Charge time:
-
24 Hours
-
Emergency Time:
-
90min
-
Product Name:
-
Constant current led strip with emergency backup battery
-
Packing:
-
Box
-
Type:
-
LED Emergency Light Inverter
-
Voltage:
-
220-310V

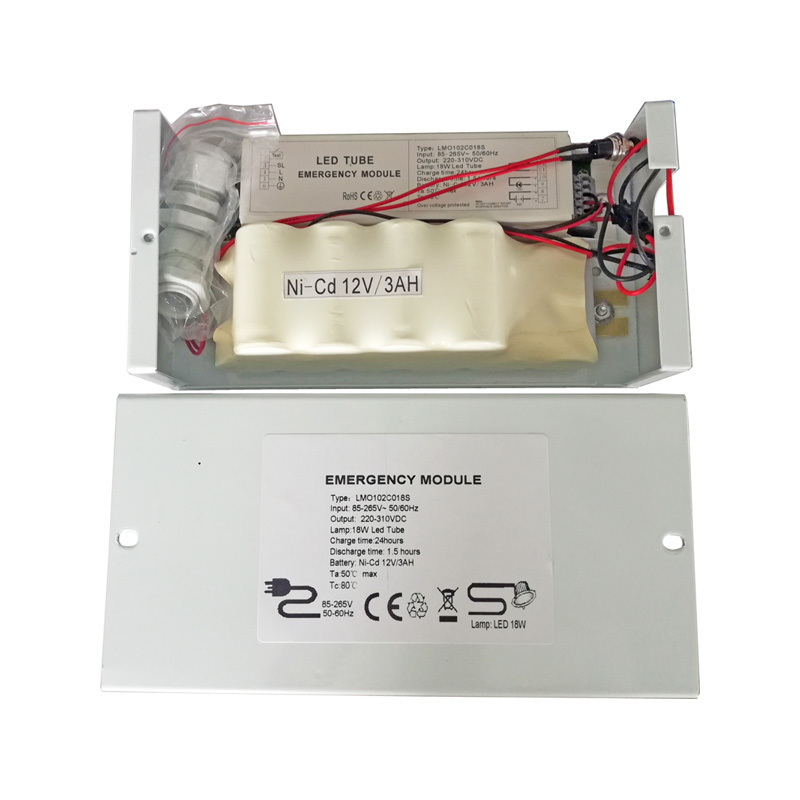

| Model No. | LMO102C030S |
| Product Name | Full power rechargeable emergency module |
| Battery Type | NiMH, NiCd |
| Lighting Power | 18WLED |
| Emergency Power | 18W |
| Input voltage | AC110~220V, 50/60Hz |
| Battery protection | Yes |
| Operation temperature | -20--70℃ , 65+20% RB |
| Highest Surface Temperature | 50°C |
| Battery Capacity | 12V 3000mAh Rechargeable Nicd battery pack |
| Charging Time | >24h without break |
| Output Voltage in emergency | 220-320VDC |
| Suitable light source | LED |
| Emergency power | 100% |
| Emergency duration | 90minutes |
| Product Weight | 1.8kgs |
| Inverter dimension | 180*40*30mm |
| Standard |
complies with EN 60598, ICEL1001, ICEL1010 With CE and RoHS certificates |
| Note | Custom-Made battery to be configured with different back-up period and different light output levels. |
Description
Sanforce full power emergency conversion kits allow the LED fixtures to meet requirement for emergency illumination level same as mains supply.
The converter automatically adjusts the output LED current and keeps Fixed Voltage output to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration.
The product range to cover a variety of LED fixture ideal for high voltage board(220-310V DC)LED tube, Led Sensor tube and Tri-proof tube...etc with internal LED driver.
Features
- IC controlled Dual rate Charger for energy savings.
- Short circuit protection at battery terminals.
- Battery reverse protection functionality
- Charge indicator and test button. The light fittings guarantee safety of people in buildings open to the general public.
- Automatically actuated in the event of power cuts, these devices (kit + light fitting) offer a good luminous flux to facilitate the evacuation.
- Comply with European standards EN 61 347-2-7 and offer a high level of quality and safety meeting the various prevailing regulations.
- Full emergency output ,Dial the code to suitable current of luminaires.
