Quick Details
-
Model Number:
-
ADV6531(smart board)-Y12272
-
Weight:
-
65kg
-
Panel Type:
-
LCD
-
Packing Dimension:
-
65 "
-
Product Dimension:
-
65 inch
-
Product name:
-
electric interactive whiteboard
-
Operating system:
-
Android 9.0+Win10
-
Android RAM+ROM:
-
2GB+16GB
-
Win 10 memory:
-
4GB+64GB
-
Touch screen:
-
IR Multi Touch
-
Function:
-
HDMI,WIFI,BLUE-TOOTH,RJ45 etc
-
logo:
-
Customised
-
Certificate:
-
CE FCC ROHS
-
warrantly:
-
1year
-
Installation:
-
Wall Mounted /floor standing Whiteboard Interactive
Quick Details
-
Panel Size:
-
65inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AIYOS/OEM/ODM
-
Model Number:
-
ADV6531(smart board)-Y12272
-
Weight:
-
65kg
-
Panel Type:
-
LCD
-
Packing Dimension:
-
65 "
-
Product Dimension:
-
65 inch
-
Product name:
-
electric interactive whiteboard
-
Operating system:
-
Android 9.0+Win10
-
Android RAM+ROM:
-
2GB+16GB
-
Win 10 memory:
-
4GB+64GB
-
Touch screen:
-
IR Multi Touch
-
Function:
-
HDMI,WIFI,BLUE-TOOTH,RJ45 etc
-
logo:
-
Customised
-
Certificate:
-
CE FCC ROHS
-
warrantly:
-
1year
-
Installation:
-
Wall Mounted /floor standing Whiteboard Interactive
Aiyos Super Service
☑15min (LOGO custom display) ☑4 hours (LOGO sample finished)
☑8 hours (Delivered to express) ☑3-7days (Customer received)

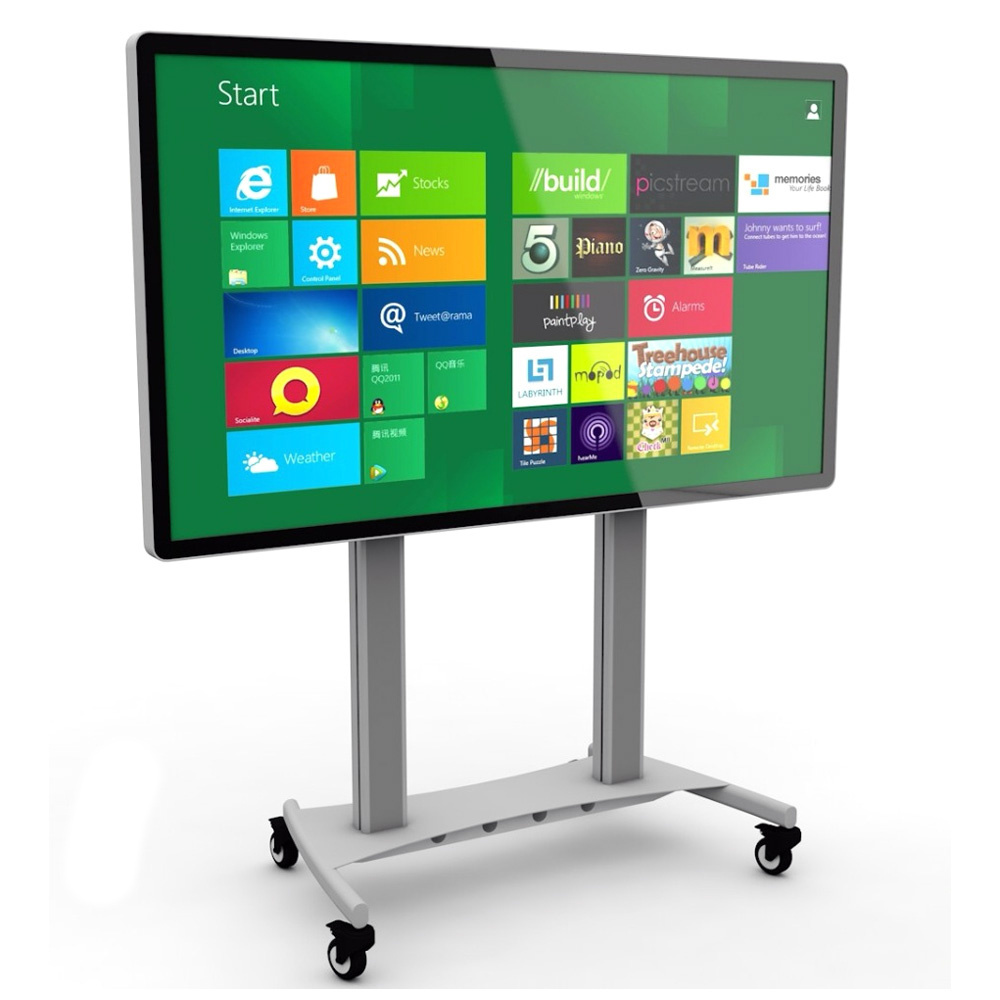

2020 white board portable interactive whiteboard with projector for business touchscreen Flat panel
|
Specifications
|
|
|
|
|
|
|
|
|||||||
|
Touch screen
|
|
20 dots IR Touch
|
|
|
|
|
|
|||||||
|
Anti-glare
|
|
yes, with anti-glaire
|
|
|
|
|
|
|||||||
|
Display screen:
|
|
55" LCD UHD 178 degree IPS full view angle screen, 3840*2160, LED backlight
|
|
|
|
|
|
|||||||
|
|
|
View angle: 89/89(H),89/89(V); Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9
|
|
|
|
|
|
|||||||
|
Power consumption
|
|
188W
|
|
|
|
|
|
|||||||
|
Speaker
|
|
2*15W
|
|
|
|
|
|
|||||||
|
Front Camera
|
|
w/o
|
|
|
|
|
|
|||||||
|
Language
|
|
Multi-language
|
|
|
|
|
|
|||||||
|
Adapter
|
|
Internal power board (AC100-240V)
|
|
|
|
|
|
|||||||
|
Embedded Android motherboard
|
|
|
|
|
|
|
|
|||||||
|
Chip
|
|
Hi3751 V811
|
|
|
|
|
|
|||||||
|
CPU
|
|
Dual-core A73 and dual-core A53 ，1.5GHz
|
|
|
|
|
|
|||||||
|
GPU
|
|
Quad-core MaliG51
|
|
|
|
|
|
|||||||
|
RAM
|
|
4G DDR4
|
|
|
|
|
|
|||||||
|
Flash
|
|
32G EMMC
|
|
|
|
|
|
|||||||
|
Android version
|
|
8
|
|
|
|
|
|
|||||||
|
Video
|
|
MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
|
|
|
|
|
|
|||||||
|
Audio
|
|
MPEG1/2 layer I/II,AAC-Lc,WMA…
|
|
|
|
|
|
|||||||
|
HDMI
|
|
480i / 480p / 576i / 576p / 720p / 1080i / 1080p /
2160p |
|
|
|
|
|
|||||||
|
Network support
|
|
2.4G/5G wireless network, wired network，
Bluetooth |
|
|
|
|
|
|||||||
|
Ethernet*
|
|
1x RJ45 standard socket
|
|
|
|
|
|
|||||||
|
VGA IN
|
|
1x DB15 type, 1x external standard socket
|
|
|
|
|
|
|||||||
|
AV IN
|
|
1x Mini earphone jack
|
|
|
|
|
|
|||||||
|
AV OUT
|
|
1x Mini earphone jack
|
|
|
|
|
|
|||||||
|
Earphone
|
|
1x earphone standard socket
|
|
|
|
|
|
|||||||
|
MIC
|
|
1x earphone standard socket
|
|
|
|
|
|
|||||||
|
SD-card
|
|
1x small card holder
|
|
|
|
|
|
|||||||
|
SPDIF
|
|
1x coaxial socket
|
|
|
|
|
|
|||||||
|
WIFI
|
|
2x 5G built-in module
|
|
|
|
|
|
|||||||
|
HDMI IN
|
|
4x HDMI standard socket
|
|
|
|
|
|
|||||||
|
HDMI OUT
|
|
1x HDMI standard socket
|
|
|
|
|
|
|||||||
|
USB
|
|
3x USB 3.0 standard socket，1x USB 2.0 standard
socket |
|
|
|
|
|
|||||||
|
TYPE C*
|
|
1x little socket
|
|
|
|
|
|
|||||||
|
UART
|
|
1x DB9 standard block
|
|
|
|
|
|
|||||||
|
USB
|
|
1x Standard Type USB2.0 B port ，1x Standard Type
USB2.0 A port |
|
|
|
|
|
|||||||
|
OPS computer
|
|
|
|
|
|
|
|
|||||||
|
CPU
|
|
Intel i3
|
|
|
|
|
|
|||||||
|
RAM
|
|
4GB
|
|
|
|
|
|
|||||||
|
Internal memory
|
|
128GB SSD
|
|
|
|
|
|
|||||||
|
Operation system
|
|
Win10(not activated)
|
|
|
|
|
|
|||||||
|
WiFi
|
|
WiFi 802.11
|
|
|
|
|
|
|||||||
|
Ethernet RJ45
|
|
yes
|
|
|
|
|
|
|||||||
|
HDMI
|
|
HDMI OUT
|
|
|
|
|
|
|||||||
|
USB port
|
|
4
|
|
|
|
|
|
|||||||
|
RJ45
|
|
yes
|
|
|
|
|
|
|||||||
|
Accessories:
|
|
AC cable, packing box, manual
|
|
|
|
|
|
|||||||
