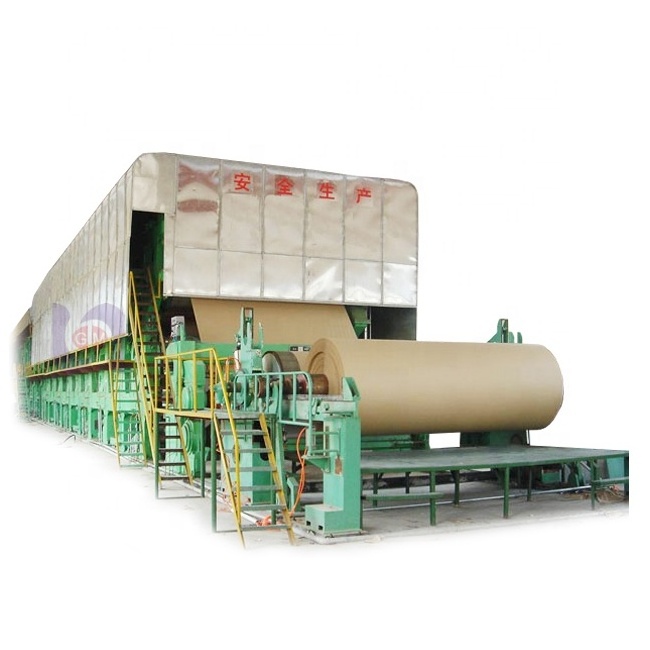

The integrated pulp and paper mill machinery can use waste paper, old carton boxes, wood etc as raw material to make kraft paper, corrugated fluting testliner paper etc. The whole production line mainly includes pulp making line and paper making line.
The raw material can be recycled waste paper, virgin pulp, wood, straw, sugarcane bagasse etc. You can also mix recycling waste paper pulp with virgin wood pulp or other pulp. We can design pulp making production line for you if you want to make different kinds of pulp at the same time or you want to produce cardboard paper with multiple layers. The design and installation will be made according to your requirements.
Hydrapulper is the main machine for breaking virgin pulp board and waste paper. It is applied in breaking and separation of fiber, and even purification and roughly screening of pulp. for examples:
Drum hydrapulper
Single, double vortexes hydrapulper
D type hydrapulper
Vertical high-density hydrapulper
Upper drive power-saving hydrapulper
Spherical digester is widely used in integrated pulp and paper plant, which use wood, straw, sugarcane bagasse, bamboo etc. as raw material to make paper. The spherical digester is usually used together with conveyor, wood chips cutter, straw cutter, belt feeder etc.
After telling us your needs, the detailed quotation will be sent to you, which includes CAD layout drawing and all machinery list with specifications. Popular pulp making equipments include double-disc pulp refiner, double screw pulp squeezer, fiber separator, drum screen, high speed pulp washer, high-consistency sand remover, low consistency impurity remover, reject separator, flotation deinking machine, vibration screen, cylinder pulp thickener, pressure screen, pulp pump, pulp consistency controller, high consistency bleaching system, disc heat dispersing system etc.
Here is the installation of pulp making line that we have finished in client's factory:
The paper making machine mainly includes molding section, pressing section, dryer section, winding section, driving section, air compressor system, foundation part and electric control system. Some paper machines also include glue sizing section, calendaring section, rewinding section and further processing section, like slitting, cutting, packaging etc. The modle of the paper machine depends on the capacity, net paper width, and paper grammage you want.
Cylinder mould is used in small and medium paper making line. The material is stainless steel and cast iron. Cylinder mould is usually spplied together with the vat. The design of the mesh, the diameter and the quantity of the cylinder will ensure when the pulp go on the mesh, it will not throw pulp and not leave any trace during the production. The finished paper can have good tension, strength and evenness in vertical and horizontal.
Fourdrinier paper machine is widely used in high speed and large capacity paper plant, especially in production multiple layers paper. The paper machine can be single fourdrinier type, double fourdrinier type or multiple fourdrinier type. The fourdrinier section includes fourdrinier table, headbox, couch roll, vacuum water suction box etc. the length of the fourdrinier table and the combination style of multiple tables depends on the paper you want to make and layout of your factory.
In the detailed quotation, you can find the CAD layout drawings of paper production line and the whole plant, the land area you need, the dimension of the factory and all machinery list with specifactions. Paper making equipments also include felt, dryer cylinder, exhaust hood, guiding roller, couch roller, suction box, rubber rollers, marble rollers, frame, walkway and railings etc.
Here are the multiple cylinders and fourdrinier paper making machines we are installing for overseas clients:
|
5-8 T/D
|
10 T/D
|
15-20 T/D
|
25 T/D
|
|
20-30 T/D
|
50 T/D
|
60 T/D
|
70 T/D
|
|
100 T/D
|
150 T/D
|
200 T/D
|
other capacity
|
Different models of kraft paper making machine:
|
787mm
|
1092mm
|
1575mm
|
1760mm
|
||
|
1880mm
|
2100mm
|
2200mm
|
2400mm
|
||
|
2880mm
|
3200mm
|
3600mm
|
4800mm
|
||
|
cylinder mould paper machine
|
|
fourdrinier type paper machine
|
|
||
|
Packaging
|
|
|
|
Packaging Details
|
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around. 3. Wrapped with tighted plastic films several circles. 4. Fixed machine on the fumigated plywood pallet with iron wire. 5. Wrapped with wooden board around and nailed on. 6. Packaging according to your requirements. |
|
|
|
|
|
|
|
|
|
|
Delivery
|
|
|
|
Delivery Details
|
1. Delivery of the machinery can be by truck, by air, by train or by sea, which depends on the availability and convinence.
2. Delivery time will be within 40 days after first payment. 3. Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery 4. Accepted Payment Type: T/T, L/C, Credit Card,Western Union, Cash 5. Nearest Port: QINGDAO, TIAN JIN |
|
|
|
|
|
|
|
|
|
Founded in 1982, Zhengzhou Guangmao Machinery Co. Ltd. is a professional paper machinery manufacturer that specialized in manufacturing and exporting paper machine over the past 30 years.
Our products are all ISO9001:2000 and CE qualified, and have been exported to more than 30 countries. Our high quality products and perfect service have won customers' praise and more and more orders.
Business scope:
Various pulp making machines;
Various paper making machines;
Various paper processing machines;
Various spare parts.
Technology strength:
One professional technician team of 116 engineers and 12 experts;
32 years rich practice experience.
One innovation research team, always follow the advanced technology of Finland, Denmark and Italy;
Skilled and careful workers.
Company scale:
Four branch factories;
One International Trade Department;
Total area is 96,000 square meters.
Our market：
our machines sells well in more than 30 countries and regions, such as Russia, Indonesia, Uzbekistan, Tajikstan, Nigeria, Uganda, Pakistan, Egypt, Bhutan, Fiji, Brazil, Paraguay, Syria, Libya, Turkey, Canada etc. High quality and perfect service have reserved customers' praise and more orders. we have established good strategic cooperation with local distributor.
1.Why we choose your company?
(1)more than 30 years experience of manufacture paper machine and pulp making machine;
(2)professional engineer team ensure latest and best design;
(3)professional project manager ensure perfect service for whole procedure,such as quotation preparation,arrange shipment,customs clearance;
2.How to visit your factory and what is visiting schedule?
(1)Our company located in ZHENGZHOU city, HeNan province,
From Beijing to our city,it will take 1.5hours by flight or 3 hours by high speed train;
From Guangzhou to our city,it will take 2 hours and 20minutes by flight or 6.5hours by high speed train;
From Shanghai to our city,it will take 2hours by flight or 7hours by high speed train;
(2)after you confirm visiting plan,please inform us,we will arrange picking up and also booking hotel for you;
(3)welcome to visit our factory,you can check our factory facility,machine manufacturing ability,machine quality,we will also show you same working machine,you can check working performance and get necessary information of whole project,this can help you know well about this project;
3.How about technical service?
(1)we will send engineer to check your land condition and make precise design of whole factory;
(2)we will send engineers to make installation for you,after installation,they will teach your workers how to operation,maintain machine and also how to make paper;
(3)if you need,we can also keep some engineer working for you until you completely know well about machine;
