Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BELEKS
-
Model Number:
-
P04-5P/105-9 UL
-
Housing:
-
Polycarbonate
-
Clamping Unit:
-
Copper and Stainless Steel Spring
-
Rated Voltage:
-
600V
-
Wiring Range:
-
12-24 AWG 0.2-4 mm2
-
Stripped Length:
-
13 mm
-
Flammability:
-
94v-2
-
Ambient Temperature:
-
90℃
-
Certificate:
-
cULus/CQC/RoHS/Reach
-
Color:
-
Transparent
-
Warranty:
-
12 Months
Quick Details
-
Type:
-

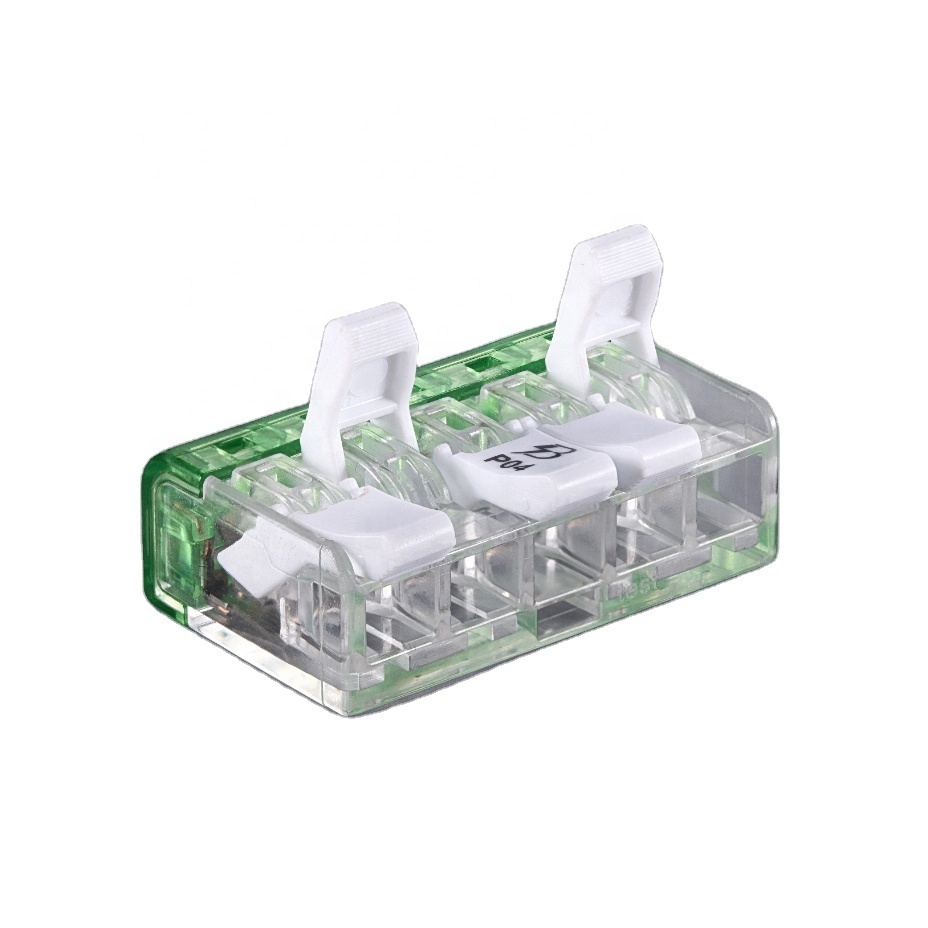

lever-nut connector
-
Application:
-
lamps/appliances/wiring installation
-
Gender:
-
others
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BELEKS
-
Model Number:
-
P04-5P/105-9 UL
-
Housing:
-
Polycarbonate
-
Clamping Unit:
-
Copper and Stainless Steel Spring
-
Rated Voltage:
-
600V
-
Wiring Range:
-
12-24 AWG 0.2-4 mm2
-
Stripped Length:
-
13 mm
-
Flammability:
-
94v-2
-
Ambient Temperature:
-
90℃
-
Certificate:
-
cULus/CQC/RoHS/Reach
-
Color:
-
Transparent
-
Warranty:
-
12 Months
Product Description
*Compact splicing connector
*For all conductor types
*Transparent housing
*Safe, fast and easy wiring
Dimensions
Specification
|
Electrical Data
|
|
|
|
|||
|
|
|
IEC/EN
|
UL
|
|||
|
Rated Voltage (V)
|
|
450
|
600
|
|||
|
Rated Current (A)
|
|
32
|
|
|||
|
Ambient Temperature
|
Polycarbonate
|
T85
|
90℃
|
|||
|
Connection Data
|
|
|
|
|||
|
|
|
IEC/EN
|
UL
|
|||
|
Cross Section
|
Solid conductor
|
0.2-4.0mm²
|
AWG 12-24
|
|||
|
|
Stranded conductor
|
0.2-4.0mm²
|
AWG 12-24
|
|||
|
|
Flexible conductor
|
0.2-4.0mm²
|
AWG 12-24
|
|||
|
Strip length (mm)
|
|
13
|
|
|||
|
Materials
|
|
|
|
|||
|
Insulation Materials
|
Designation
|
Polycarbonate
|
Polyamide 66
|
|||
|
|
Flammability class
|
UL 94V-2
|
|
|||
Company Introduction
Established：
2006
Experience：30+ years
Employees：300+
Construction Area：40,000+ m
2
Patents：100+（30+ from America & Germany）
Brand: BELEKS
Certificates：ISO9001 ， VDE，UL，CE，CQC，ENEC，KEMA...
Workshops
Equipped with advanced automation equipments of high efficiency & precision.
LAB
Mould Workshop
Equipped with high-precision die machines
R&D Center
Related Products
Certificate
Packing&Shipping
FAQ
WHO WE ARE?
* Krealux is a top manufacturer of terminal blocks, wire connectors, junction boxes & cord line switches, an ISO9001-2015 approved company with 30+ years experience.
WHAT WE DO?
* Krealux is a top manufacturer of terminal blocks, wire connectors, junction boxes & cord line switches, an ISO9001-2015 approved company with 30+ years experience.
WHAT WE DO?
* We manufacture terminal blocks, wire connectors, junction boxes & cordline switches approved by VDE/UL/
CE/
ENEC/KEMA-KEUR/SAA/CB/CQC, with 100+ patents.
WHY CHOOSE US?
WHY CHOOSE US?
*Professional, experienced staff and advanced facilities ensure high quality.
*
Highly autonomous production capability, the whole (automatic production) process completed in-house.
*
High production capacity and short delivery time.
*
UL & DEKRA certified witness lab，CNAS accredited lab.
*
Establishing smart warehouse to achieve Industry 4.0.
