Quick Details
-
Standby current:
-
18mA
-
Working current:
-
440mA
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Pegasus, Pongee
-
Website:
-
www.pongee.com
-
Standby current:
-
18mA
-
Working current:
-
440mA
-
Certification:
-
CE

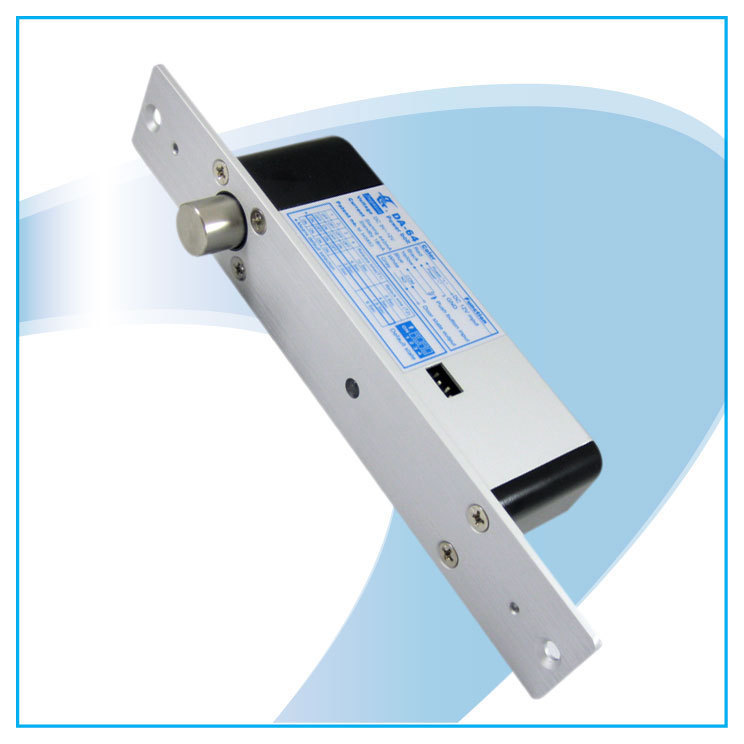

Ultra low standby current electric drop bolt lock
Features
•
Fail safe type
released as power off.
•With magnetic switch door position sensor
•With DIP switch for setting time delay for opening & relock door
•Electric drop bolt design suitable for double swing door with 180° opening angle
•With power & state LED indicator
•Low stand by current
(18mA)
suitable for battery backup in fail secured application.
•Low working current, no over heating problem.
•With exit function thru low current contacts.
Specifications
•Lock size (mm):204(L) x 33(W) x 45(D)
•Approx. weight:675g ±1%
•Nominal voltage:DC12V
•Voltage tolerance:±10%
•Standby current:
18mA
•Working current:440mA
•Temp. range:-20°C ~ 70°C
•Power consumption:0.2W(standby) / 5.3W(work)
Dimension: Unit(mm)
Application
As auxiliary lock for emergency door, swing glass sheet door, frameless glass door, wooden door.
Accessories
External hanging bracket - P G-B64
For glass door without frame
External hanging bracket - P
G-B64
+ Glass jig - PG-DASTC-2
We reserve the right to change the specification without notice or obligation!
