Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
TF
-
Product:
-
Refrigeration Compressor
-
Cooling capacity:
-
1/10- HP
-
Displacement:
-
4.29
-
Refrigerant:
-
R600a
-
Voltage:
-
220-240V/50Hz
-
Compressor cooling:
-
Static
-
Evaporating Temp Range:
-
-35℃ ~-5℃
-
Capacity:
-
65w
-
COP:
-
1.55
Quick Details
-
Type:
-
Refrigeration Compressor
-
Application:
-
Refrigeration Parts
-
Weight (KG):
-
6
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
TF
-
Product:
-
Refrigeration Compressor
-
Cooling capacity:
-
1/10- HP
-
Displacement:
-
4.29
-
Refrigerant:
-
R600a
-
Voltage:
-
220-240V/50Hz
-
Compressor cooling:
-
Static
-
Evaporating Temp Range:
-
-35℃ ~-5℃
-
Capacity:
-
65w
-
COP:
-
1.55

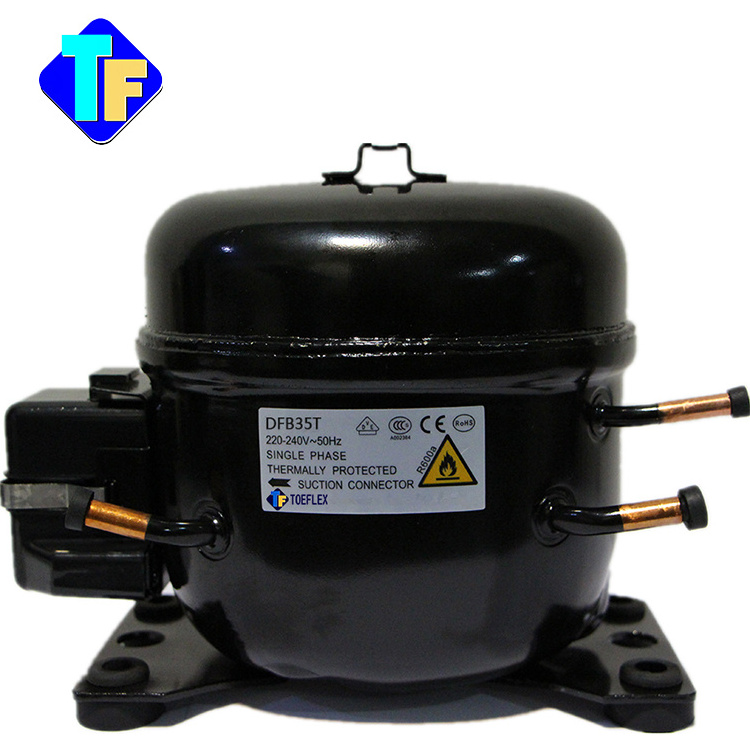

Home water cooler compressor fridge freezer refrigerator R600a compressor
Why Choose Us?
1. Experienced and Professional refrigeration products supplier;
2.
For almost 40 years
---
Our factory has been engaged in
researching, developing and manufacturing refrigeration compressors
;
3.Alibaba
13 years-golden supplier
, factory recognizaed by CCC ,CB,VDE,UL,CUL,CE... so on.
4.
Stable Quality
----Coming from good material and technology software imported from Europe;
5. Good Service ----Satisfactory service before and after sales.
6. Four representative offices overseas ---offering timely effective service for our customers.
Where can your compressor be used?
Our compressor can be used in the Refrigerator , Drinking-water cooler Dispenser , Freezer , Water dispenser , Wine Cooler , Dehumidifier , Air Cooler so on.
What Features of your Compressor?
1. Toeflex series hermetical refrigeration compressor manufactured by European imported production line .
2.It is suitable for water dispenser, small refrigerator and other small refrigeration appliance.
3.Refrigerant:
R134A, R600A,R290,R404A
4. Refrigeration capacity: 55w-190w
5. Static cooling.
6. Power supply: 110-120V/220-240V, 50/60Hz.
7. Application: LBP,MBP,HBP
8.Motor type: RSIR.
9. Certificate: CE ,VDE, UL.
10 .High efficiency, Low noise, Light vibration, Good reliability .
What is Compressor details?
What is Specification of Compressor?
Latest Feedback from Customer
What should we notice?
1,The compressor should be in ventilating,drying and cleaning room.
2,Compressor accessories (eg.starters,motor protector etc) are packaged in the accessories box when delivery instead of installing in the compressor.
3,When moving the compressor,please keep it vertical . Do not slant,turn over,and smash it.
4,Before installing,please confirm whether the model,voltage,frequency range and refrigerant on the nameplate match the refrigerant systems.
5,The angle of inclination shall not exceed 5 ° ,when the compressor is installed .Please use the specialized anti-vibration pad assorted by our company.
6,Don’t put out the rubber plugs before installing the compressor to prevent impurities and moisture.
7,Please prevent the dust from dropping on the surface of wiring terminal,or it will lead to the unconformity of insulation.
8,The compressor can not be started in the vacuum condition.
9,The compressor has been fled up with specialized refrigerant oil before delivery. Don’t pour out or add in.
Compressor Type Explain
Compressor designation for PW series
What Is the Test Condition?
| Test Condition(ASHRAE) | |
| LBP/(MBP/LBP) | |
| Evap.Temp | -23.3℃ (-10℉) |
| Amp.Temp | 32.2℃ (90℉) |
| Cond.Temp | 54.4℃ (130℉) |
| Suction.Temp | 32.2℃ (90℉) |
| Subcooling.Temp | 32.2℃ (90℉) |
| Capacity(at 60Hz)=Capacity(at 50Hz)X1.2 | |
What is Compressor Dimensions?
Exploded view
