Quick Details
-
Brand Name:
-
Hanast
-
Model Number:
-
HN-501C-1
-
Type:
-
One-Component
-
Features:
-
Seal,bonding,waterproof
-
Product name:
-

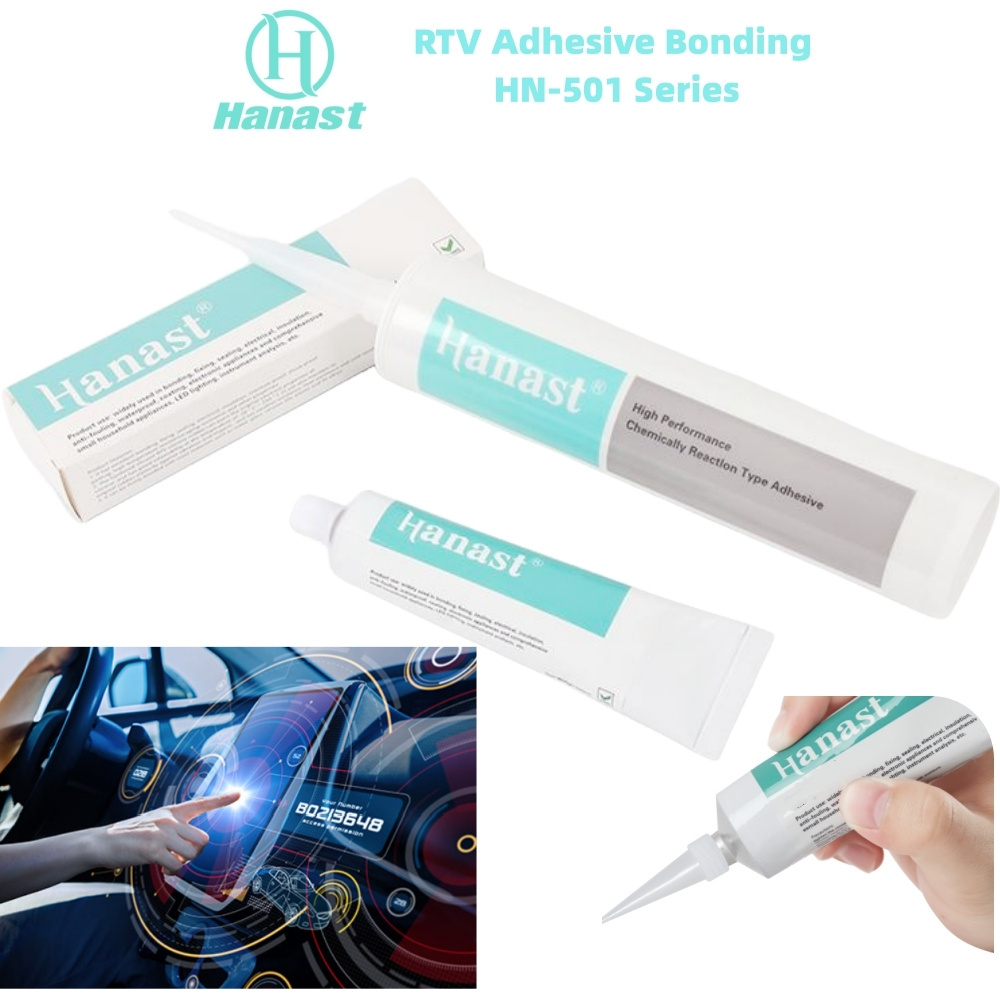

Silicone adhesive sealant
-
Color:
-
Transparent
-
Keyword:
-
Electronic adhesive sealant transparent adhesive
-
Appearance:
-
Semi-fluid,sticky
-
Hardness:
-
20-40 Shore
-
Application:
-
Metal, glass, ceramic, PCB board, plastic
-
High and low temperature resistance (℃):
-
-50℃~250℃
-
Surface dry time (min25℃):
-
10~30
-
Product packaging:
-
100ml aluminum tube, 310ml, 2600ml plastic tube
Quick Details
-
CAS No.:
-
67763-03-5
-
Other Names:
-
silicone adhesive sealant
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hanast
-
Model Number:
-
HN-501C-1
-
Type:
-
One-Component
-
Features:
-
Seal,bonding,waterproof
-
Product name:
-
Silicone adhesive sealant
-
Color:
-
Transparent
-
Keyword:
-
Electronic adhesive sealant transparent adhesive
-
Appearance:
-
Semi-fluid,sticky
-
Hardness:
-
20-40 Shore
-
Application:
-
Metal, glass, ceramic, PCB board, plastic
-
High and low temperature resistance (℃):
-
-50℃~250℃
-
Surface dry time (min25℃):
-
10~30
-
Product packaging:
-
100ml aluminum tube, 310ml, 2600ml plastic tube
Product Description
Specification
|
Model
|
HN-501C-1
|
HN-501C-2
|
HN-501B-1
|
HN-501R-1
|
HN-501W-1
|
HN-501W-2
|
|
Type
|
Ketoxime RTV
|
Alcohol
RTV |
Ketoxime RTV
|
Ketoxime RTV
|
Ketoxime RTV
|
Ketoxime RTV
|
|
Exterior
|
transparent flowing
|
Translucent semi-fluid
|
black, semi-fluid
|
red, flowing
|
white, flowing
|
White,flowing/
semi-flowing |
|
Viscosity (mPa.S)
|
12000~12000
|
12000~15000
|
3800~4000
|
12500~15000
|
16000~18000
|
20000-30000
|
|
Specific gravity (25℃)
|
1.0~1.04
|
0.98~1.0
|
1.0~1.1
|
1.0~1.1
|
1.0~1.1
|
1.0~1.1
|
|
Surface dry time (min25℃)
|
10~30
|
5~15
|
10~30
|
10~30
|
10~30
|
5~15
|
|
Shore hardness (JISA)
|
20~40
|
20~40
|
20~40
|
20~40
|
20~40
|
30~40
|
|
Elongation at break (%)
|
200~280
|
300~400
|
200~280
|
200~280
|
200~280
|
250~300
|
|
Tensile strength (Kgf/cm2)
|
15~30
|
15~30
|
15~30
|
15~30
|
15~30
|
10~30
|
|
Volume resistivity (Ω.cm)
|
≥3×1014
|
≥3×1014
|
≥3×1014
|
≥3×1014
|
≥3×1014
|
≥3×1014
|
|
Breakdown voltage (kv/mm)
|
18～25
|
18～25
|
18～25
|
18～25
|
18～25
|
18～25
|
|
Positive dielectric loss angle (1MHZ)
|
≤4×10-3
|
≤4×10-3
|
≤4×10-3
|
≤4×10-3
|
≤4×10-3
|
≤4×10-3
|
|
High and low temperature resistance (℃)
|
-50℃～250℃
|
-50℃～250℃
|
-50℃～250℃
|
-50℃～250℃
|
-50℃～250℃
|
-50℃～250℃
|
Packing & Delivery
Aluminum tube + color box + K/A paper dividers + carton box
100 ml is packed in aluminum tube
Both 310 ml and 2600 ml are packaged in plastic tubes
100 ml is packed in aluminum tube
Both 310 ml and 2600 ml are packaged in plastic tubes
