- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
54000
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support, Field maintenance and repair service
-
Brand Name:
-
Maxizm
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
10290*5880*5085mm
-
Cargo Tank Dimension:
-
8500*4850*4200mm
-
Product name:
-

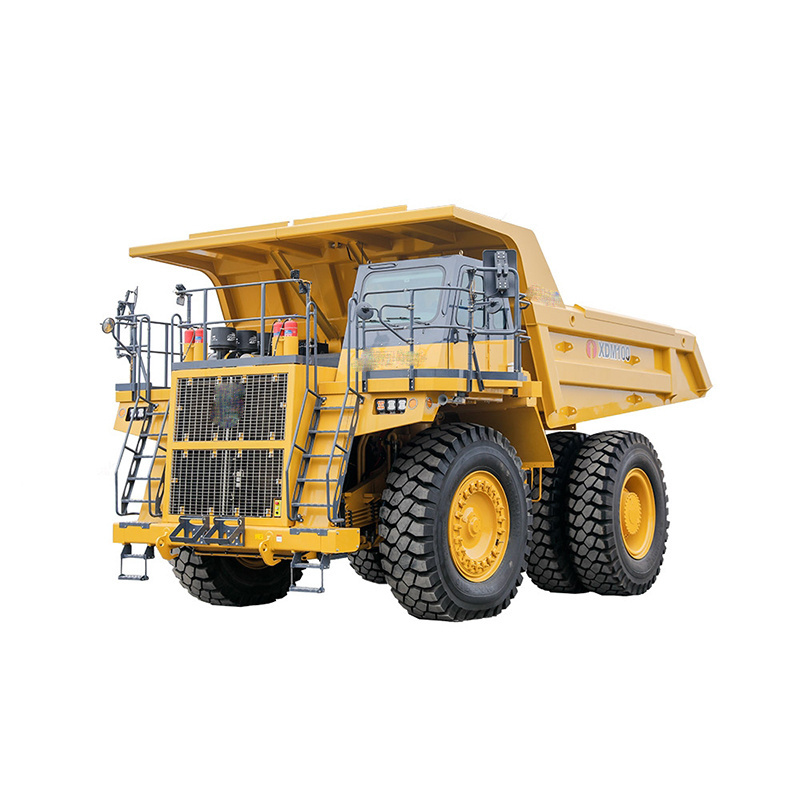

90 ton Truck Dump XDM100 800hp Heavy Mining Dump Truck For Sale
-
Capacity:
-
91t
-
Wagon volume:
-
Flat loading - 40m3 2:1 Heaped loading - 52m3
-
Engine:
-
cumins
-
Tire:
-
27.00R49
-
Max. vehicle speed:
-
48km/h
-
Min. turning diameter:
-
24m
-
Max. torque:
-
3200/1200~1500 nm/rpm
-
Max.gradeability:
-
30%
Quick Details
-
Condition:
-
New
-
Horsepower:
-
451 - 500hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
54000
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support, Field maintenance and repair service
-
Brand Name:
-
Maxizm
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
10290*5880*5085mm
-
Cargo Tank Dimension:
-
8500*4850*4200mm
-
Product name:
-
90 ton Truck Dump XDM100 800hp Heavy Mining Dump Truck For Sale
-
Capacity:
-
91t
-
Wagon volume:
-
Flat loading - 40m3 2:1 Heaped loading - 52m3
-
Engine:
-
cumins
-
Tire:
-
27.00R49
-
Max. vehicle speed:
-
48km/h
-
Min. turning diameter:
-
24m
-
Max. torque:
-
3200/1200~1500 nm/rpm
-
Max.gradeability:
-
30%
Contact
Sales Manager
Eva Song
Maxizm Construction Machinery (Qingdao) Co., Ltd.
QQ/Wechat/ Mobile/ WhatsApp/ Skype: 008617865675208
Eva Song
Maxizm Construction Machinery (Qingdao) Co., Ltd.
QQ/Wechat/ Mobile/ WhatsApp/ Skype: 008617865675208
Product Description
Feature：
1. Classic mining truck assemblies, like big horse engine, auto gearbox and big-tonnage customized axles, make it possible to match large-tonnage classic mining trucks.
2. The frame has box-shaped structural stringer and anti-torsional beam, and high-strength low-alloy casts are welded in high-load bearing zones, ensuring a 60000 hours service life and a lightweight body.
3. Candle type hydro-pneumatic front suspension has a simple structure and reliable performances; balanced type hydro-pneumatic middle-rear suspension can real time split load onto middle-rear axles and increase axle load-carrying capacity.
4. Auto gearbox that has a retarder and wet disc brake that has parking function altogether increase the braking force on slope when under fully laden conditions, which leads to increased vehicle speed and productivity.
5. Breakaway type full hydraulic power steering offers optimum steering geometry, extends tires life span, and emergency steering meets both ISO 5010 standard and 120% rated load requirement.
6. A series of classic structures like FOPS & ROPS cab, front boarding system and lengthened bumper build up driver's safety border, and when the truck gets into a rear-front collision, the driver’s safety is still secured.
2. The frame has box-shaped structural stringer and anti-torsional beam, and high-strength low-alloy casts are welded in high-load bearing zones, ensuring a 60000 hours service life and a lightweight body.
3. Candle type hydro-pneumatic front suspension has a simple structure and reliable performances; balanced type hydro-pneumatic middle-rear suspension can real time split load onto middle-rear axles and increase axle load-carrying capacity.
4. Auto gearbox that has a retarder and wet disc brake that has parking function altogether increase the braking force on slope when under fully laden conditions, which leads to increased vehicle speed and productivity.
5. Breakaway type full hydraulic power steering offers optimum steering geometry, extends tires life span, and emergency steering meets both ISO 5010 standard and 120% rated load requirement.
6. A series of classic structures like FOPS & ROPS cab, front boarding system and lengthened bumper build up driver's safety border, and when the truck gets into a rear-front collision, the driver’s safety is still secured.
Specification
|
Item
|
|
Unit
|
Parameter
|
|
Overall length
|
|
mm
|
10290
|
|
Overall width
|
|
mm
|
5880
|
|
Overall height
|
|
mm
|
5085
|
|
Total weight
|
|
kg
|
158000
|
|
Rated load
|
|
kg
|
91000
|
|
No-load weight
|
|
kg
|
67000
|
|
No load
|
Front axle
|
%
|
48
|
|
|
Rear axle
|
%
|
52
|
|
Full load
|
Front axle
|
%
|
33
|
|
|
Rear axle
|
%
|
67
|
|
Engine type
|
|
|
Cumins QST30
|
|
Engine rated power
|
|
kW/r/min
|
783/2100
|
|
Engine max. torque
|
|
kW/r/min
|
4629/1300
|
|
Drive form
|
|
|
4×2
|
|
Tire
|
|
|
27.00R49
|
|
Max. vehicle speed
|
|
km/h
|
48
|
|
Min. turning diameter
|
|
m
|
24
|
|
Max.gradeability
|
|
%
|
30
|
|
Min. ground clearance
|
|
mm
|
700
|
