Quick Details
-
Theoretical Shot Volume(cm³):
-
280 cm³
-
Injection Rate (g/s):
-
6.4 g/s
-
Injection Weight (g):
-
129 g
-
Screw Speed (rpm):
-
10 - 186 rpm
-
Screw diameter (mm):
-
32 mm
-
Weight (KG):
-
21000
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
TA-600S
-
Brand Name:
-
TAPM
-
Power (kW):
-
7.5 kW
-
Efficiency:
-
high quality
Quick Details
-
Mold Height(mm):
-
150 - 400 mm
-
Ejector Stroke(mm):
-
45 mm
-
Ejector Force(kN):
-
22 kN
-
Theoretical Shot Volume(cm³):
-
280 cm³
-
Injection Rate (g/s):
-
6.4 g/s
-
Injection Weight (g):
-
129 g
-
Screw Speed (rpm):
-
10 - 186 rpm
-
Screw diameter (mm):
-
32 mm
-
Weight (KG):
-
21000
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
TA-600S
-
Brand Name:
-
TAPM
-
Power (kW):
-
7.5 kW
-
Efficiency:
-
high quality
Products Description

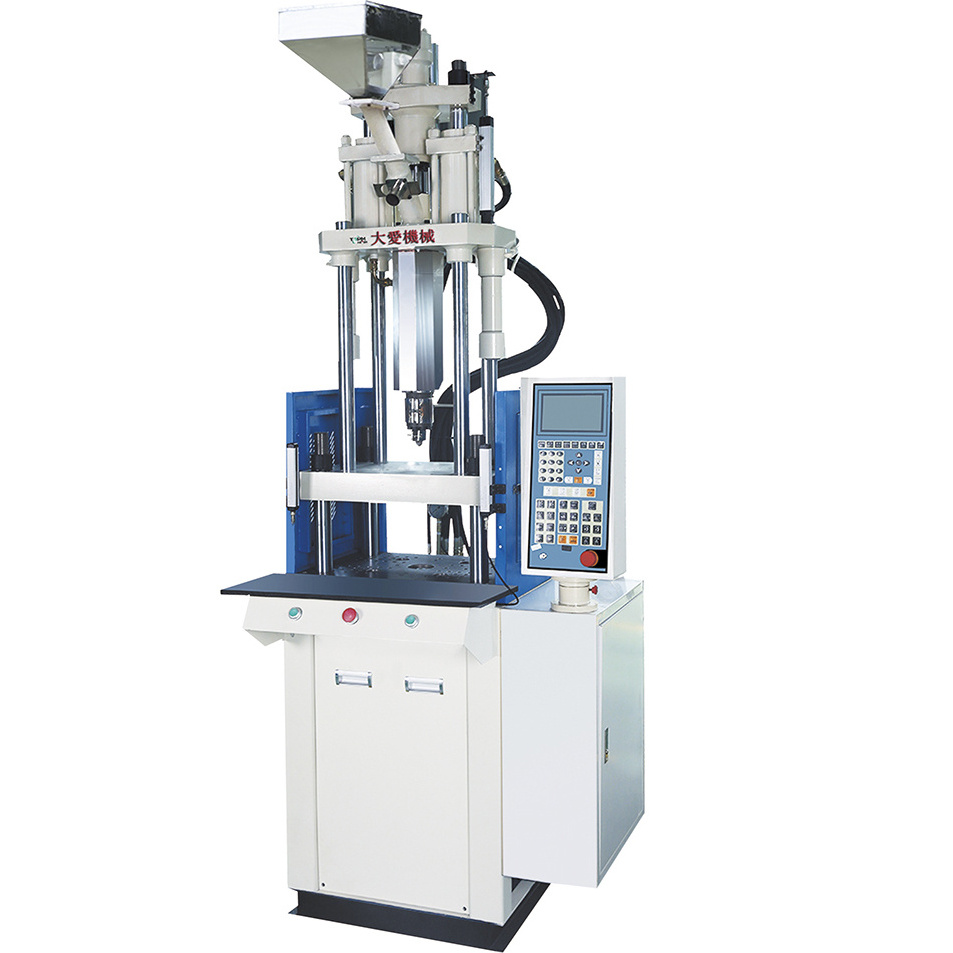

TA-single sliding plate series
With upper fixed， the lower mold can slide out towards operation direction， inserts，placed parts and finished products are all finished outside the clamping.It works safety and suits for those inserts that are hard to place.
Title goes here.
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
|
DESCRIPTION
|
Unit
|
TA-600S
|
|
INJECTION UNIT
|
|
|
|
Screw Diameter
|
mm
|
32/35/40
|
|
Injection Pressure
|
Kg/cm2
|
2060/1717/1312
|
|
Theoretical Shot volume
|
cm3
|
128/153/200
|
|
Max. Shot Weight
|
g/Oz
|
134/4.7 160/5.7 210/7.4
|
|
Injection speed
|
cm/s
|
6.4
|
|
Number Of Temperature Control
|
ZONE
|
3
|
|
CLAMPING UNIT
|
|
|
|
Clamping Force
|
kn
|
600
|
|
Distance Between Tie Bar
|
mm
|
470x340
|
|
Top Platen Size
|
mm
|
620x490
|
|
Bottom Platen Size
|
mm
|
655x540
|
|
Sliding Platen Size
|
mm
|
450x490
|
|
Min.Mold Height
|
mm
|
230
|
|
Opening Stroke
|
mm
|
220
|
|
Max.Opening Distance
|
mm
|
450
|
|
Ejector Force
|
kn
|
22
|
|
Ejector Stroke
|
mm
|
45
|
|
Hydraulic UNIT
|
|
|
|
Max.Hydraulic Pressure
|
kgf/cm²
|
140
|
|
Oil Tank Capacity
|
L
|
230
|
|
Pump Motor Power
|
kw
|
7.5
|
|
Barrel Heating Power
|
kw
|
5.4
|
|
Total Wattage
|
kw
|
12.9
|
|
GENERAL
|
|
|
|
Machine Weight
|
T
|
2.1
|
|
Machine Dimensions(L x W x H)
|
m
|
2.1x1.1x2.4
|
